Summary of Contents for XtendLan XL-RAID-4300ESFU

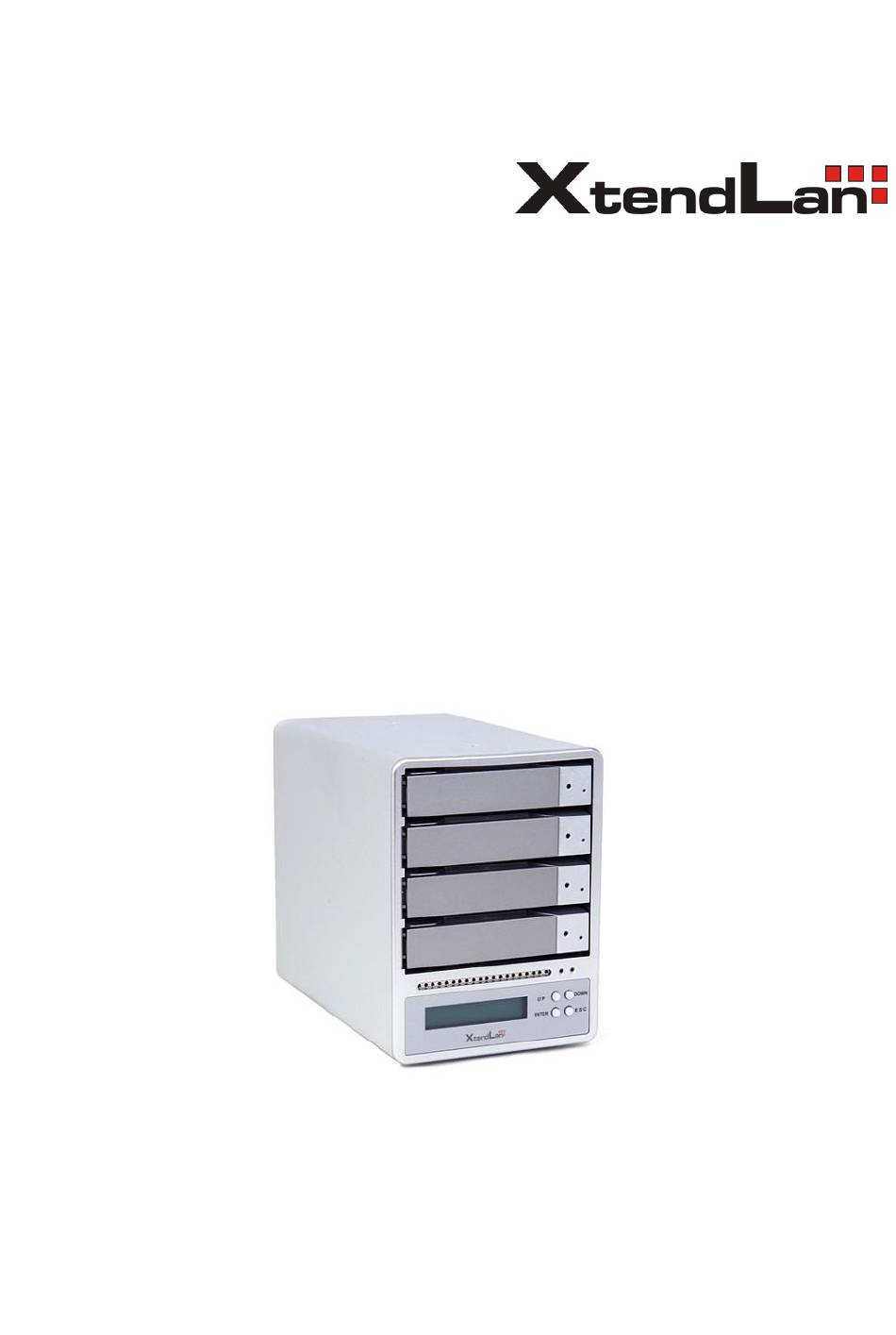

  • Page 1 XL-RAID-4300ESFU User Manual...

  • Page 2: Table Of Contents

    7. System Temperature Overheat and Fan Failure Management 8. Visual Status Indicator Definitions Package Contents and Product Views Open the package and you should find the following: XL-RAID-4300ESFU XL-RAID-4300ESFU ( with removable drive tray enclosed x 4 ) Firewire 800 (1394b) Cable ｘ1 e-SATA Cable ｘ1...
  • Page 3 Speed mode ( Raid 0 ) : One big independent data storage with without data protection. Safe mode ( Raid 1 ) : One independent data storage with data protection. The secondary FireWire 800 (1394b) connection on the XL-RAID-4300ESFU is provided to connect and extend to another FireWire 800 (1394b) device.

  • Page 4: Hardware Requirements And Precautions

    If these conditions can’t be met, select one that’s at least 20 GB greater in capacity. 3. The actual storage capacity of XL-RAID-4300ESFU recognized by the system may differ from the total capacity stated on the hard drives once the drives have been formatted.

  • Page 5: Description Of Front Panel Operation And Lcd Information

    Step 5 When the hard drive installation has been completed, insert the hard drive tray into the system horizontally and secure the latch into place. Step 6 Connect the AC power cable to the XL-RAID-4300ESFU, and then plug the AC power to the wall socket. Boot-up the unit.

  • Page 6: Replacement Of Malfunctioning Drive And Data Rebuild Instructions

    During data rebuild, you may operate the XL-RAID-4300ESFU as normal. When the indicator stops, the data rebuild process has been completed.
