Marshall Electronics
MC-0105 Distribution Amplifier Users Guide
7

Product Overview

1
The MC-0105 is used to convert Composite Video or Y/C (S-Video) (NTSC/PAL) to VGA. When placed in line with a
monitor cable there is an added capability to switch the display between video and VGA signals.

Features

7
2
Converts Composite Video or Y/C (Svideo ) to VGA (RGBHV) for display on projectors or data screens
NTSC or PAL operation with automatic detection
Illuminated power and input signal indicators
Transforms interlaced 525/625 images to Progressive Scan
Adaptive filtering removes NTSC interlace artifacts
2x over sampling for true color reproduction
VGA output processed as 4:4:4/RGB
Automatically scales NTSC 4:3 input to 640x480 Pixel resolution
Automatically scales NTSC 16:9 input to 720x480 Pixel resolution
Automatically scales Pal 4:3 input to 640x576 Pixel resolution
Automatically scales Pal 16:9 input to 720x576 Pixel resolution
Automatic Gamma correction
Automatic color space conversion
Switch between VGA and composite or Y/C inputs
7

Electrical Specifications

3
Signal Input
Signal Output
Sample Frequency
K factor
Signal to Noise
Dynamic gain/phase
Cable length
Power required
7
4

Mechanical Specifications

Dimensions
Weight
V-PS6-1.2A Power Supply Weight
7
5

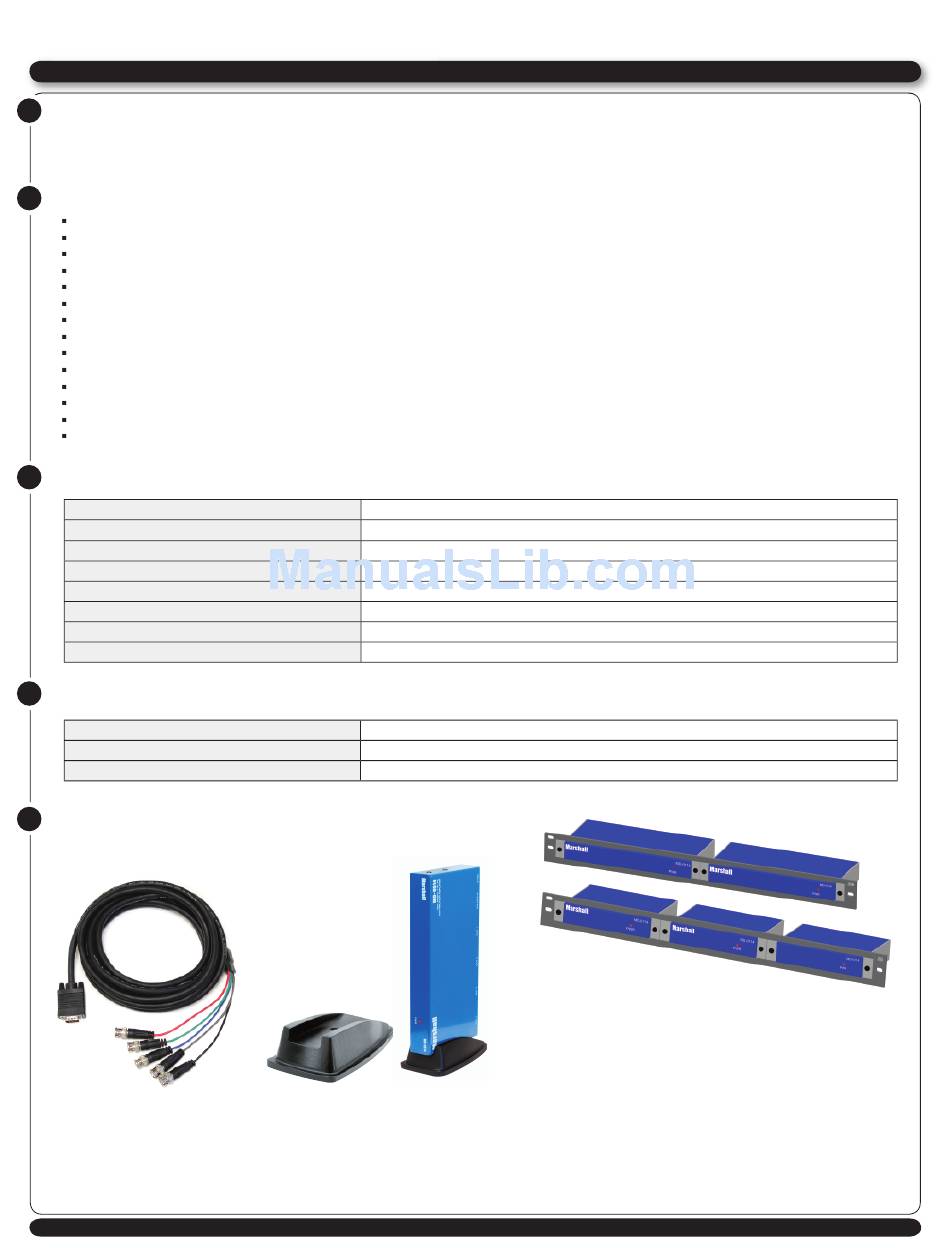

Optional Accessories

Cable: RGB-5HD15-X
(X = Length in feet 6, 10, 15, 20)
1910 East Maple Ave. El Segundo, CA 90245 • Tel.: 800-800-6608 • Fax:310-333-0688 • www.LCDRacks.com • Email: sales@lcdracks.com
HD-15 VGA, Composite Video BNC 75
HD-15 VGA (27 Mhz for NTSC)
27mhz
<1%
>42 db
<1% / <1.50
Up to 350ft (100m) AGC compensated
6V D.C. supplied from external supply (Model V-PS6-1.2A)
4.75"W x 3.75"D x 1.0"H
0.55 lbs (0.25kg)
0.20 lbs (0.10kg)
V-CB1 Desktop Stand
, Y/C Video 4 pin Mini- din
Ω
V-CRM-2
2U (1.75" tall) Conversion and Distribution 3 Module Bracket.Up
to three Marshall Electronics 4.75" wide conversion or distribution
modules can be securely installed into a standard EIA 19 inch
rack with the V-CRM-3 mounting bracket. Every V-CRM-3 includes
two blank panels for a clean cosmetic appearance.
V-CRM-3
Single RU (1.75" tall) Conversion and Distribution 2 Module
Bracket.Two Marshall Electronics 7.72" wide or one 7.72" plus one
4.75" wide conversion or distribution modules can be securely
installed into a standard EIA 19 inch rack with the V-CRM-2
mounting bracket. Every V-CRM-3 includes one blank panel and
one 4.75" adapter for a clean cosmetic appearance.
