Marshall
MD-0114
VIDEO DISTRIBUTION AMPLIFIER
B r o a d c a s t M u l t i m e d i a D i v i s i o n

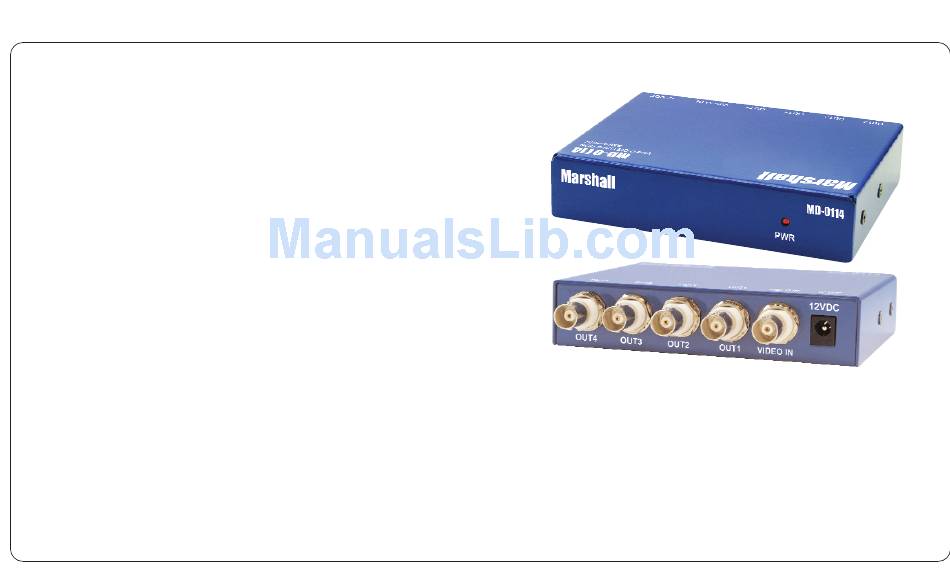

To operate unit, insert the power plug (Marshall V-PS12-100)
into the power jack located on the rear of the unit. The unit
is automatically turned on when power is supplied to the unit
and indicated by the power LED on the front of the unit.
Supply a NTSC/PAL composite video signal to the video
BNC connector labeled VIDEO IN.
Installing the hard mount brackets: Your MD-0114 comes
with two brackets that allow the unit to be hard mounted to
any surface with 4 screws. By removing the middle screw on
the enclosure, position the bracket and then replace the
screw. After both brackets are installed, place the unit in the
desired location and mark the holes using a pencil.
Each unit comes with 4 self-adhesive rubber feet to be
placed on the bottom of the unit to protect any surface that it
may be set upon.
Available accessories include a space saving stand that
holds the unit in a vertical position or a rack mountable face
panel that holds multiple units in a 1U space. For more infor-
mation please visit www.LCDRacks.com.
