Summary of Contents for Marshall Electronics VDA-104-3GS
-
Page 1: User Manual

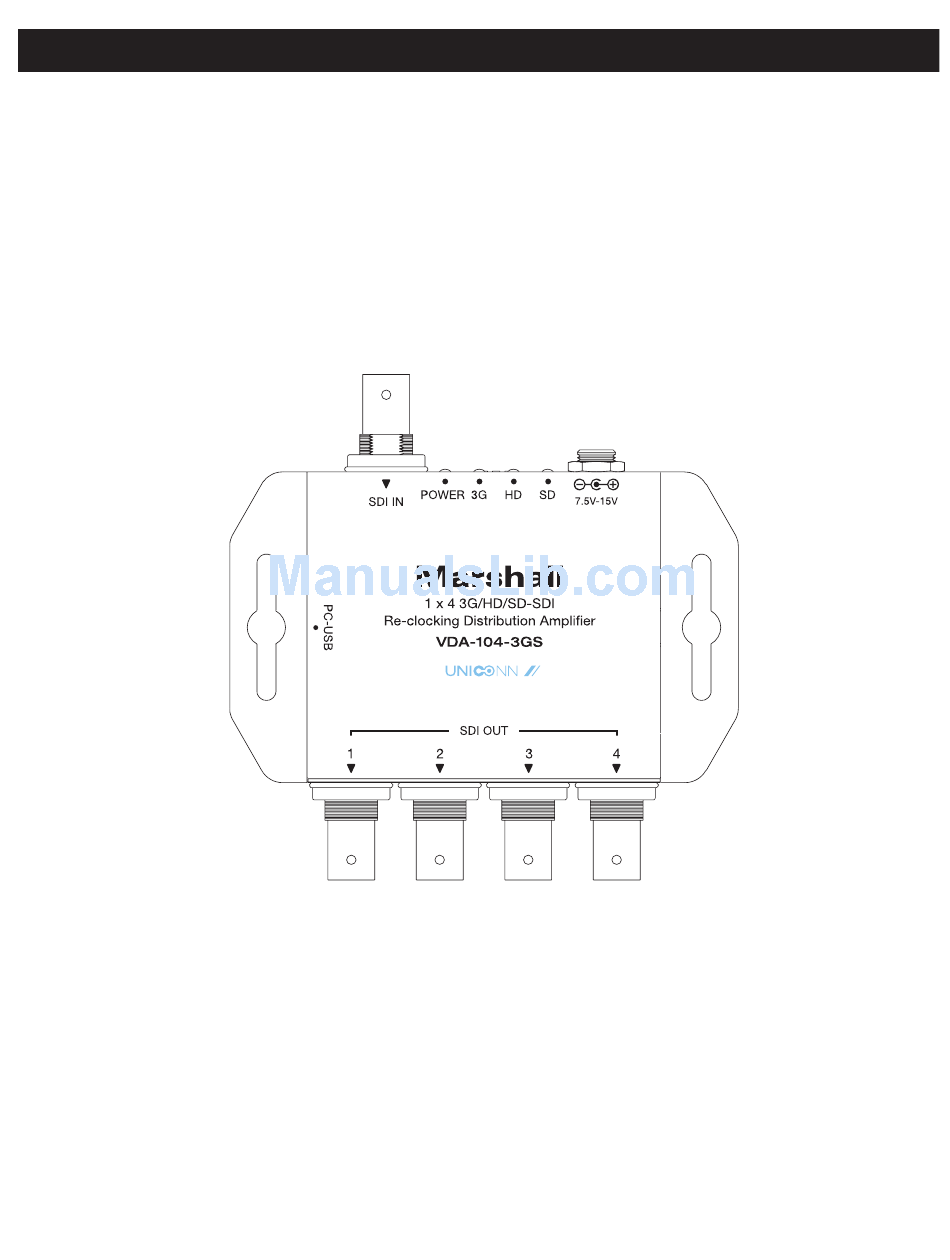

Marshall Electronics B r o a d c a s t A / V D i v i s i o n VDA-104-3GS 1 x 4 3G/HD/SD-SDI Re-clocking Distribution Amplifier User Manual... -
Page 2: Package Contents
IntroDUCtIon The VDA-104-3GS provides reclocking distribution of an SDI video input signal to four SDI outputs. The input type, whether SDI, HD SDI or 3G SDI is auto detected and displayed via LED indicators. FeatUres • Supports 270Mb/s, 1.485Gb/s, and 2.97Gb/s data rates • Supported video formats: - SD: 480i59.94 “NTSC”, 576i50 “PAL”... -
Page 3: Dip Switch
SDI OUT DIP swItCH • Reclock ON: The VDA-104-3GS retransmits the incoming SDI signal after reclocking/reshaping and level boosting. • Reclock OFF: The VDA-104-3GS retransmits the incoming SDI signal without reclocking or level boosting. • N/A: These two switches have no function. www.LCDracks.com... - Page 4 If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer.
