Marshall Electronics MD-0514 User Manual

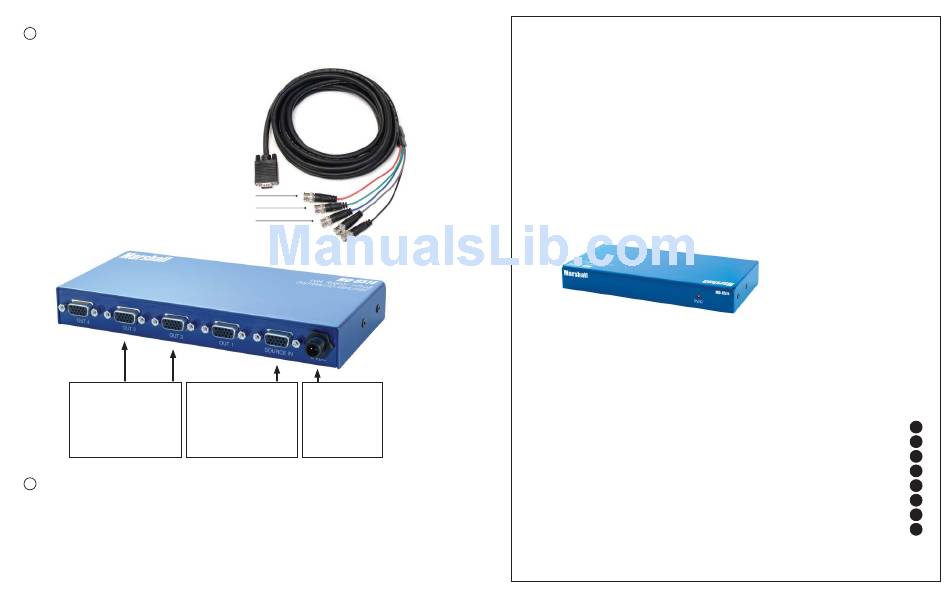

Composite Video using RGB-HD15-X Cable
7
Gray and Black are not active when used for composite video or component video signals.
1. Composite Video Signal 1 on RED
2. Composite Video Signal 2 on Green
3. Composite Video Signal 3 on Blue
DB HD-15 Female Connector Output DB HD-15 Female Connector Input
Pin-1 Red Out Pin-9 Pin-1 Red In
Pin-2 Green Out Pin-10 Pin-2 Green In
Pin-3 Blue Out Pin-11 Pin-3 Blue In
Pin-4 Pin-12 Pin-4
Pin-5 Pin-13 VS Out Pin-5
Pin-6 Ground Pin-14 HS Out Pin-6 Ground
Pin-7 Ground Pin-15 Pin-7 Ground
Pin-8 Ground Pin-8 Ground
Warranty
8
Marshall Electronics warranties to the first consumer, that this MD-0514 Distribution Amplifier will, under normal use, be free from defects in
workmanship and materials, when received in its original container, for a period of one year from the purchase date.
This warranty is extended to the first consumer only and proof of purchase is necessary to honor the warranty. If there is no proof of purchase
provided with a warranty claim, Marshall Electronics reserves the right, not to honor the warranty set forth above. Therefore, labor and parts may be
charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifications in design
or construction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any warranties other than those
described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described above.
Due to constant effort to improve products and product features, specifications may change without notice.
RED
GREEN
BLUE
6 VDC from
Pin-9
V-PS6-1.2A power supply
Pin-10
Pin-11
Left Pin - Pos
Pin-12
Right Pin- Neg
Pin-13 VS In
Pin-14 HS In
Pin-15
Marshall Electronics
1910 East Maple Ave.
El Segundo, CA 90245
Tel.: 800-800-6608
Fax: 310-333-0688
www.LCDRacks.com
Email: sales@lcdracks.com
MD-0514 MD-0514
Distribution Amplifier
Users Guide Users Guide
Product Overview 1
2
Features
Electrical Specifications 3
Mechanical Specifications 4
Optional Accessories 5
Operational Setup 6
Composite Video using RGB-HD15-X cable 7
Warranty 8
