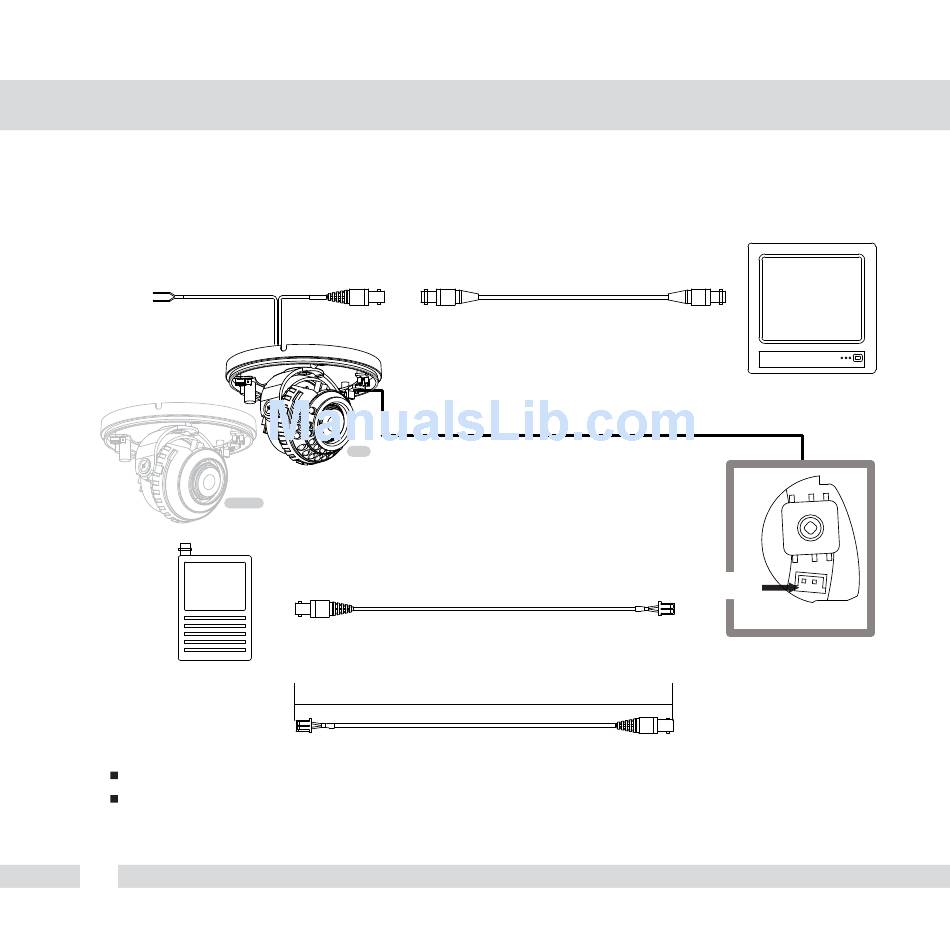

CONNECTING TO MONITORS*

12VDC/24VAC
No IR
Monitor
Power connection - 12VDC/24 VAC Dual Voltage. (Auto polarity detection and protection.)
All cameras are equipped with a second video output on the camera's Control Board for easy
on-site configuration.
5 10
IR
11.8in
CCTV Monitor
Left
Down
Right
2nd Video Output
Up
