Page 1: User Manual

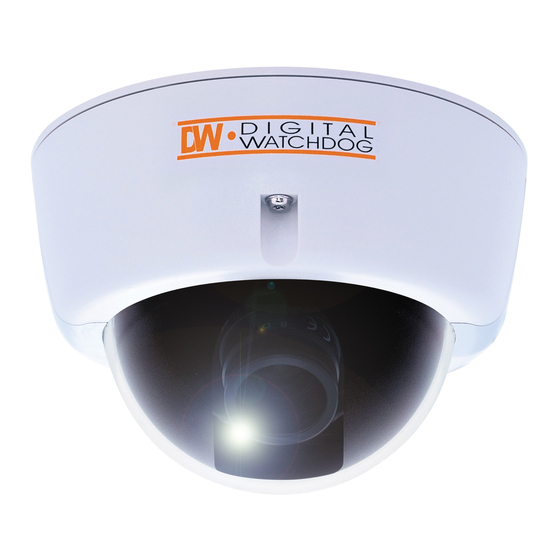

DWC-D1362D / D1363D / D1363D922 Indoor Dome Camera User Manual ABOUT MANUAL Before installing and using the camera, please read this manual carefully. e camera please read this manual carefully e camera please read this manual care Be sure to keep it handy for future reference. - Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. or other damages. Be careful when handling the unit. To prevent damages, do not drop the camera or subject it to shock or vibration.
- Page 3 TROUBSHOOTING Before sending your camera for repair, check the following or contact our technical specialist. No Video Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the menu setup of the camera. Check the power supply and make sure the camera has the proper voltage and current.
- Page 4 FEATURES *- D1363D,D1363D922 1/3” Sony Super HAD II CCD High Resolution 560 TV Lines 3.3~12mm Varifocal Auto Iris Lens [D1363D] 9~22mm Varifocal Auto Iris Lens [D1363D922] Electronic Day and Night Star-Light (Super Low Light Technology) DRC (Dynamic Range Compressor) 3D-DNR (3D Digital Noise Reduction) HME (Highlight Mask Exposure) Negative Imaging AGC / BLC / AWB...
-
Page 5: Dimensions In Millimeters
DIMENSIONS IN MILLIMETERS * R43.0 88.0 46.5 88.0 82.5 123.8 VIDEO (YELLOW) BNC JACK DC12V&AC24V BLACK 0.2 INCHES(0.5mm) TWIST SOLDERING... -
Page 6: Power Requirement
POWER REQUIREMENT * Maximum Wire Distance Wire Gauge 12VDC 24VAC 24 AWG 80ft 323ft 22 AWG 128ft 513ft 20 AWG 203ft 815ft 18 AWG 323ft 1295ft 16 AWG 514ft 2056ft 14 AWG 816ft 3264ft 12 AWG 1295ft 5183ft 10 AWG 2057ft 8228ft Coaxial Cable Type Maximum Distance... -
Page 7: Installation
INSTALLATION * Included with Digital Watchdog Camera: 1. User Manual 2. Mounting Template 3. Security L-Key 4. Single Sided Hex Key 5. Secondary BNC Cable for a Field Monitor 6. Two (2) Screws and Two (2) Dry Wall Anchors Camera Installation Use the Mounting Templage (2) when mounting the camera. - Page 8 INSTALLATION * A. Loosen the Fixing Screws (A), using the L-Key. B. Separate the Upper Case (B) from the Base (F). C. Loosen the Inner Screws (C), using a screw driver. D. Detach the Gimbal (D) from the Base (F). E.
- Page 9 CONNECTION * DC12V / AC24V...
-
Page 10: Lens Adjustment
LENS ADJUSTMENT * 60° 360° A. Adjust the Pan (360°) and Tilt (60°) positions. B. Use the Zoom Lever to set the zoom position. C. Use the Focus Lever to set the focus. -
Page 11: Setting The Camera
SETTING THE CAMERA * D1362D LEFT RIGHT DOWN D1363D, D1363D922 CON2 CON1 LEFT RIGHT DOWN... -
Page 12: Module Osd Menu
MODULE OSD MENU * (D1362D) EXPOSURE COLOR DAY&NIGHT BRIGHTNESS WB MODE D&N MODE SHUTTER FUNCTION MOTION PRIVACY MIRROR ALARM MASK 1 SHARPNESS MASK 2 GAMMA MASK 3 MASK 4 COLOR SET SYNC SETUP EXIT SYNC CAMERA ID EXIT TITLE EDIT SAVE &... -
Page 13: Osd Menu
OSD MENU * (D1362D) EXPOSURE BRIGHTNESS MANUAL (ELC LEVEL : 0 ~ 100) / DC (DC LEVEL : 0 ~ 31) SHUTTER 1/60, 1/100FLC, 1/120 ~ 1/100000 OFF / ON BLC (Back Light Compensation) OFF / 12dB ~ 36dB AGC (Auto Gain Control) EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET COLOR... - Page 14 FUNCTION MIRROR OFF/ MIRROR SHARPNESS 0 ~ 49 GAMMA USER / 0.45 / 0.6 / 1.00 OFF / ON (0 ~ 50) SLC (Side Light Compensation) OFF / ON (0 ~ 55) HME (Highlight Masking Exposure) OFF /ON DIS (Digital Image Stabilizer) EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET MOTION (OMNI-Plus Cameras Only)
- Page 15 PRIVACY MASK 1 OFF / ON MASK 2 OFF / ON MASK 3 OFF / ON MASK 4 OFF / ON COLOR SET BLACK / GRAY / COLOR 1~ 6 EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET SYNC SYNC MODE INTERNAL / AUTO V-PHASE 0 ~ 199...
- Page 16 MODULE OSD MENU * (D1363D, D1363D922) EXPOSURE COLOR DAY&NIGHT BRIGHTNESS WB MODE D&N MODE SHUTTER R-Y GAIN C_SUP BLC / HME B-Y GAIN A_SUP STARLIGHT NIGHT-UP FUNCTION MOTION PRIVACY MIRROR MOTION PRIVACY SHARPNESS GAMMA FREEZE NEGATIVE D-ZOOM 3D DNR SYNC SETUP EXIT SYNC...
- Page 17 OSD MENU * (D1363D, D1363D922) EXPOSURE BRIGHTNESS 0 ~ 100 SHUTTER 1/60, FLK, 1/120 ~ 1/100000 BLC/HME OFF / BLC / HME HIGH / MIDDLE / LOW / OFF AGC(Auto Gain Control) STARLIGHT AUTO(x2 ~ x256) / OFF NIGHT-UP NORMAL / HIGH EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET COLOR...
- Page 18 FUNCTION MIRROR OFF/MIRROR/V-FLIP/ROTATE SHARPNESS 0 ~ 31 GAMMA 0.05 ~ 1.00 FREEZE OFF / ON NEGATIVE OFF / ON D-ZOOM OFF / ON (x1.0 ~ x32 PTZ) ON (0~100) / OFF 3D-DNR 3D-DNR (3D Digital Noise Reduction) OFF / INDOOR / OUTDOOR DRC (Dynamic Range Compressor) EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET...
- Page 19 SYNC SYNC INTERNAL / AUTO EXIT JUMP EXIT / SAVE & EXIT / FACTORY SET SETUP TITLE EDIT OFF / ON PC CONTROL CAM ID / ID DISPLAY (OFF/ON) / BAUDRATE (2400 / 4800 / 9600) The protocol is PELCO-D. (RS485 Control) LANGUAGE ENG / KOR / JPN / CHN1 / CHN2 / RUS / FRAN / SPAN / ITAL...
-
Page 20: Specifications
SPECIFICATIONS * Model D1362D Camera TYPE Color/BW Indoor Dome Camera Mount Surface Image Device 1/3" Super HAD ll CCD Pixels-Total 811(H) x 508(V) 768(H) x 494(V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz Min. - Page 21 SPECIFICATIONS * Model D1363D, D1363D922 Camera TYPE Color/BW Indoor Dome Camera Mount Surface Device 1/3” Super HAD II CCD Image Pixels-Total 811 (H) x 508 (V) 768 (H) x 494 (V) System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz VV Scanning Horizontal Frequency Line-Lock Mode 15.750Hz...
-
Page 22: Warranty Information
WARRANTY INFORMATION * Digital Watchdog (referred to as “the Warrantor”) warrants the Camera Series against defects in materials or workmanship as follows. LABOR : For the initial five (5) years from the date of original purchase, if the camera is determined to be defective, the Warrantor will repair or replace the unit, with new or refurbished product at its option, at no charge. -
Page 23: Limits And Exclusions
LIMITS AND EXCLUSIONS * There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages, including without limitation and damage to recording media, resulting from the use of these products or arising out of any breach of the warranty. - Page 24 5436 W Crenshaw St. Tampa, FL 33634 Tel: 866-446-3595 / 813-888-9555 Fax: 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours: Monday-Friday 8:30am to 8:00pm EST...
