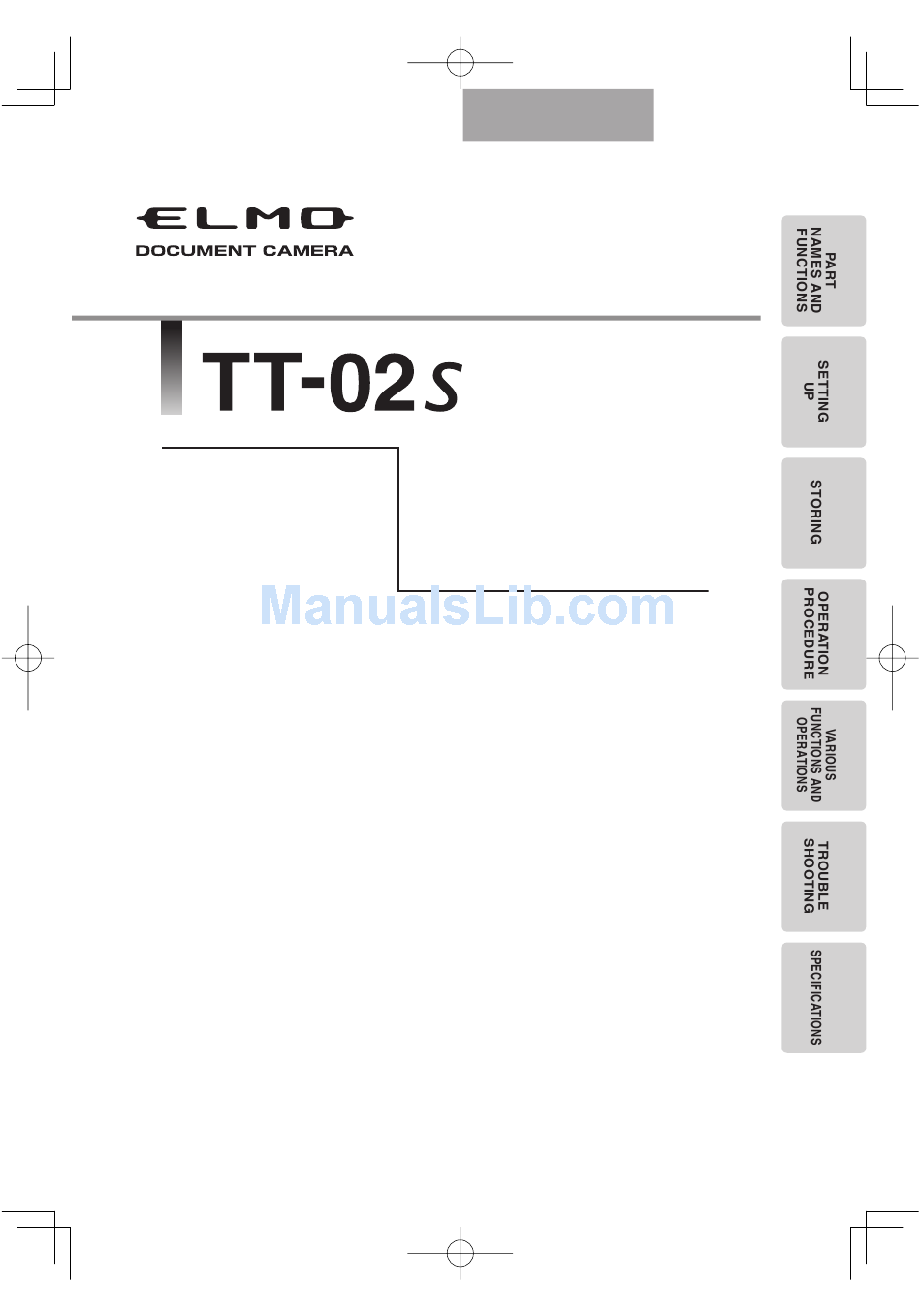

  • Page 1 English Teacher’s Tool INSTRUCTION MANUAL Please read this instruction manual carefully before using this product and keep it for future reference.

  • Page 2: Important Safeguards

    English IMPORTANT SAFEGUARDS Read Instructions All the safety and should use a mounting and operating instructions should accessory recommended by the be read before the appliance is manufacturer. operated. Ventilation Slots and openings Retain Instructions The safety in the cabinet are provided for and operating instructions should ventilation and to ensure reliable be retained for future reference.
  • Page 3 English Grounding or Polarization This power-line surges. product may be equipped with Overloading Do not overload either a polarized 2-wire AC line wall outlets, extension cords, or plug (a plug having one blade integral convenience receptacles wider than the other) or a 3-wire as this can result in a risk of fire grounding type plug, a plug or electric shock.
  • Page 4 English Damage Requiring Service Heat The product should be Unplug this product from the situated away from heat sources wall outlet and refer servicing to such as radiators, heat registers, qualified service personnel under stoves, or other products the following conditions: (including amplifiers) that produce heat.
  • Page 5 English WARNING: FOR UNITED STATES USERS: TO REDUCE THE RISK INFORMATION OF FIRE OR ELECTRIC This equipment has been tested and found to comply with the limits for SHOCK, DO NOT EXPOSE a Class B digital device, pursuant THIS PRODUCT TO RAIN to Part 15 of the FCC Rules.

  • Page 6: Before You Use

    English BEFORE YOU USE Use the product under the rated electrical conditions. The power cord applicable to the local power specifications is attached.Be sure to use the power cord applicable to your local power specifications. Do not leave this product under direct sunlight or by heaters, or it may be discolored, deformed or damaged.
  • Page 7 English Use (including set-up and storage) or transfer with your closest attention to prevent the camera head from shocking. When a magnetic sheet is brought close to a cathode ray tube (Braun tube), a speaker, a CD-player, a DVD, or cellular phone, etc, the normal operation may be interrupted or failure may occur.

  • Page 8: Table Of Contents

    English CONTENTS IMPORTANT SAFEGUARDS ..............2 BEFORE YOU USE ..................6 CONTENTS ....................8 1.PART NAMES AND FUNCTIONS ............10 Name of Each Part..................10 Appearance ..................... 10 Functions ..................... 11 Operating buttons ................... 11 Rear Panel ....................12 Side Panel ....................13 OSD (On Screen Display) ................
  • Page 9 English 6.TROUBLE SHOOTING ................ 43 Symptoms and Confirmation ............... 43 7.SPECIFICATIONS ................44 General ......................44 Main Camera ....................45 Illumination Device ..................45 Supplied Accessories ................ 46...

  • Page 10: Part Names And Functions

    English PART NAMES AND FUNCTIONS Name of Each Part Appearance Front Rear (11) (10) (12) Name Name Camera head Stage positioning P.25 Illumination lamp switch Rear panel P.12 Zoom dial Side panel P.35 P.13 AF Button (10) Magnetic sheet P.36 P.25 Camera column (11)

  • Page 11: Functions

    English Functions Operating buttons (2)(4) (10) (11) (12) Name Function Name Function To turn ON/OFF (7) Image CAMERA To output the POWER the power. select (Camera camera image (Power switch ON/ Power ON: Green image) from the output OFF standby) light turns on terminal.

  • Page 12: Rear Panel

    English Rear Panel Name Function (1) DC IN 12V Plug-in for the AC adapter (Power Socket) (2) RGB OUT To output analog video signal to the projector, the PC (Analog RGB monitor or other RGB input device. Output Terminal) P.20 (3) RGB IN To output the image input to this terminal, when [PC] is (Analog RGB...

  • Page 13: Side Panel

    English Side Panel Name Function To insert an SD card into the SD card slot. Push the card again to remove the SD card. (SD Card Slot) (2) Security slot...

  • Page 14: Osd (On Screen Display)

    English OSD (On Screen Display) The menu items displayed/selected on the monitor or the projection screen are referred to as “OSD (On-Screen Display).” When the [MENU] button is pressed, the OSD menu appears on the monitor screen. (By pressing the [MENU] button again, the OSD menu disappears.) Move the cursor to the item to be set with the direction buttons [ ] and press operating button [...
  • Page 15 English The top hierarchy The 2nd hierarchy Function White Balance Auto To set the white balance to Auto. P.41 One-Push To set the white balance to One-Push. P.41 Manual To manually adjust the red/blue elements. P.41 R-Gain (Displayed in level bar) To adjust the red element when the white balance is set to Manual.

  • Page 16: Sd Mode (Menu When Image Stored In An Sd Card Is In Display)

    English ▲▼SELECT MENU Current Delete Lock Unlock The 2nd The 3rd Format Media hierarchy hierarchy Slide Show Setting Start Slide Show The top hierarchy SD Mode (Menu when image stored in an SD card is in display) Name Function Top hierarchy 2nd hierarchy 3rd hierarchy Delete Current To cancel the delete.
  • Page 17 English Name Function Top hierarchy 2nd hierarchy 3rd hierarchy Slide Show Display Interval 3 Sec To set the interval of slide show until Settings displaying the next image from 3 to 5 Sec 30 Sec. P.28 10 Sec 15 Sec 30 Sec Effect Left to right...

  • Page 18: Setting Up

    English SETTING UP Setting Up Note • Be sure to hold the lower part of the main unit in both hands when carrying the unit. Never hold the column or the camera head. • Pay attention to prevent the camera head from knocking against the desk or the like.
  • Page 19 English Connect the analog RGB cable to the [RGB OUT] terminal and connect the DC plug of AC adapter to [DC IN 12V] terminal. P.20 Turn the power switch of the main unit...

  • Page 20: Connecting Of Ac Adapter And Video Cable

    English Connecting of AC adapter and Video cable (5) DC IN 12V terminal • To power plug (1) RGB OUT terminal (4) USB terminal • To projector (2) RGB IN terminal • To PC • To PC monitor • To PC (3) VIDEO OUT terminal •...
  • Page 21 English Specifications of the analog RGB input terminal of this product Signal allocation Video signal : Analog 0.7V(p-p) with 75Ω terminated Horizontal synchronized signal : TTL level (Positive/negative polarity) Vertical synchronized signal : TTL level (Positive/negative polarity) 15 14 13 12 11 DSUB 15P shrink terminal (Female) Pin assignment...

  • Page 22: Storing

    English STORING Storing Turn the power switch of the main unit (Continuously press the power switch for approx. 2 sec. The green light turns to red and the power switch of the main unit is OFF.) Note • Before storing, be sure to turn the power switch of the main unit OFF.
  • Page 23 English Tur n the column to the direction shown in the figure. 180° Note • Never turn the column to the opposite direction. • Be sure to hold the column when turning it. Never hold the camera head. • Proper storing position of the camera head is as shown in the above figure. Never apply excessive force to the camera head.

  • Page 24: Operation Procedure

    • When connecting to other devices, be sure to turn OFF the power of all the devices. Note • For best results, we recommend LCD projectors over DLP projectors to be used with TT-02s. A better image may be produced by selecting “Graphics” mode with DLP projector.

  • Page 25: Presentation Using Printed Materials, Etc. (Using The Stage)

    English Presentation using printed materials, etc. (Using the stage) Using the supplied stage, magnetic sheet or anti-glare sheet, effective presentation is possible. ■ Setting the main unit Attach the stage to the specified position as shown in the above figure and connect to the projector or the PC monitor.

  • Page 26: Presentation Using An Optional Sd Card (Option)

    1024 x 768 (XGA output). This product can store images up to 2048 pcs. • ELMO is not liable for any damage caused by the loss of the data in the SD card or passive damage.
  • Page 27 • Be sure to try shooting and confirm the normal saving of the image beforehand. If the image can not be saved normally due to some problem with this camera or the SD card, ELMO is not liable to compensate for such failure. • The [ ] mark on the screen is displayed only when the [Guide] menu is set to ON.
  • Page 28 English ■ Deleting the image (1) Make sure that the OSD is not displayed, and then press the [ ] button on the front operating panel to display the images stored in the SD card. (2) Display the image to be deleted by using the direction buttons [ ] on the front operating panel.

  • Page 29: Transferring The Images From The Sd Card Into The Usb-Connected Pc

    English Transferring the images from the SD card into the USB-connected PC Note • Set [USB Mode] to [Mass Storage] on the OSD. • Insert the SD card with the labeled side up. Forcing it in the wrong way may cause a malfunction.
  • Page 30 English (3) This product is recognized as a removable disk. You can view the image data in an SD on the viewer software for the PC. The image data are stored in JPEG format in the following folders: My Computer Removable disk DCIM 100_ELMO...

  • Page 31: Presentation Using The Supplied Software With The Usb-Connected Pc

    “Utility Software” is in the supplied CD-ROM. “Utility Software” contains the PC link software “Image Mate for Presentation” and the TWAIN driver “ELMO TWAIN DS (VHO)” for the following operations: • Transfer of moving/still images to the PC • Operation of this product from the PC For details on the operating environment and the Operating System (OS) for the connected PC and how to use the PC link software etc., refer to the “Utility Software”...

  • Page 32: Presentation Using A Microscope

    English Presentation using a Microscope Adjust Adjust ■ Setting a microscope Place an object such as a prepared slide on a microscope. Adjust focus by checking with eyes at the microscope side. ■ Setting the main unit Connect the main unit to a projector or a PC monitor. Then turn the power switch of the main unit ON.

  • Page 33: Shooting A 3-D Object

    English Shooting a 3-D object Adjust Adjust Adjust By adjusting angle of the camera column and the camera head, a 3-D object can be shot from the side. ■ Setting the main unit Connect the main unit to a projector or a PC monitor. Then turn the power switch of the main unit ON.

  • Page 34: Shooting Wall Surface Or Distant View

    English Shooting wall surface or distant view Forward shooting Backward shooting When the camera head is set horizontally, wall, distant view, etc, can be shot. Note • To shoot forward of the main unit, set to [Image Rotation] → [On] in the OSD to rotate the image by 180°.

  • Page 35: Various Functions And Operations

    English VARIOUS FUNCTIONS AND OPERATIONS Zoom WIDE TELE The display range of the document can be adjusted by rotating the zoom dial. (Zoom-OUT ) : Object can be shown in small size. (Zoom-IN ) : Object can be shown in large size. Note •...

  • Page 36: Focus

    English Focus Push Auto focus Press the [AF] button to automatically focus. The unit provides one-shot auto-focus system. Once the camera is focused, the auto focus operation is released, and then focus position is maintained. Note • The objects listed below may not be brought into focus in the auto focus. In such cases, use the manual focus.

  • Page 37: Manual Focus

    English Manual focus The position to focus can be changed with [ ] buttons on MENU Focus the main unit after selecting [Focus] in the OSD menu. Brightness Mode Use the manual focus to focus on any position of a 3-D object. Pause Image Rotation...

  • Page 38: Illumination Lamp

    English Illumination lamp Illumination lamp By sliding the illumination lamp switch, the illumination lamp can be turned ON/OFF. • [ON] : The illumination lamp lights. • [OFF] : The illumination lamp goes out. Note • To take shots of people, turn the illumination lamp switch OFF. (Make sure that the light from the illumination lamp does not shine directly into their eyes.) •...

  • Page 39: Adjusting The Brightness

    English Adjusting the brightness Press the [BRIGHTNESS • ] and [BRIGHTNESS • ] buttons on the main unit to adjust image brightness. Following two adjustment mode can be selected from the OSD menu. Automatic brightness adjustment SELECT MENU Focus ([Brightness] → [Auto] in the OSD) Brightness Auto Mode...

  • Page 40: Image Selection

    English Image selection The camera image is displayed by [CAMERA] button while the input image into the analog RGB input [RGB IN] is displayed by [PC] and the images in SD card is displayed by [SD] button. The camera image and the image input in the RGB input terminal [RGB IN] can be switched by pressing the [CAMERA] button and the [PC] button respectively.

  • Page 41: White Balance

    English White Balance How to use [Auto] Adjust the white balance automatically according to the color MENU SELECT status of the document. Microscope White Balance Auto R-Gain One-Push Factory setting : Auto B-Gain Manual Posi/Nega How to use [One-Push] To be used when the color balance of the image is lost. SELECT MENU Microscope...

  • Page 42: Save/Call Setting

    English Save/call setting The operation status of the unit can be saved/called in the memory. The unit saves 4 conditions (1-3, ON setting) and the storable condition are as follows. • Current zoom angle of view • Status of white balance (The range of the optical zoom) •...

  • Page 43: Trouble Shooting

    English TROUBLE SHOOTING Symptoms and Confirmation Check the following items. If any abnormality is found, consult the seller from whom you have purchased this product or our branch/office near your location Symptom Possible cause/counter measure No image is • The cable is not correctly connected. displayed.

  • Page 44: Specifications

    English SPECIFICATIONS General Item Specifi cations Power source 12VDC (AC adapter AC100 - 240V) Power consumption 9W (AC adapter included) W350xD370.5xH411.5mm (W13.8xD14.6xH16.2 in) (When setup) Outside dimensions W195xD254.5xH444.5mm (W7.7xD10.0xH17.5 in) (When folded) Weight Approx. 2.9kg (6.4 lbs) (Main body only) Input selection Main/External Output terminal...

  • Page 45: Main Camera

    English Main Camera Item Specifi cations Lens f = 3.85mm – 20.02mm (5.2-time zoom) F2.8 – 3.2 Frame rate Max. 20 frames/sec. Shooting area Max. 426x317mm (16.8x12.5 in) Min. 94x71mm (3.7x2.8 in) Limit of focus 50mm - (2.0 in x ) from lens top adjustment Optical zoom...

  • Page 46: Supplied Accessories

    USB cable (1.8m) ∗The above specifications are subject to change without notice. Trademark is a trademark of ELMO Co., Ltd. VESA is the registered trademarks of Video Electronics Standards Association. XGA is the trademark/registered trademark of International Business Machines Corporation.
