Elmo TT-12 Quick Training Manual
Wireless tablet
Hide thumbs
Also See for TT-12:
- Brochure (6 pages) ,
- Quick training manual (2 pages) ,
- Quick tips (2 pages)
Table of Contents
Advertisement
Quick Links
Setting up
Standard Configuration
AC plugs
RGB/HDMI cables
Interactive Whiteboard Configuration
2
Insert batteries into
CRA-1 and pen. Charge
CRA-1 via USB cable.
TT-12 Basics
Zoom
1
Twist the zoom knob
to zoom in/out
Press the Auto-focus button to
focus after zooming.

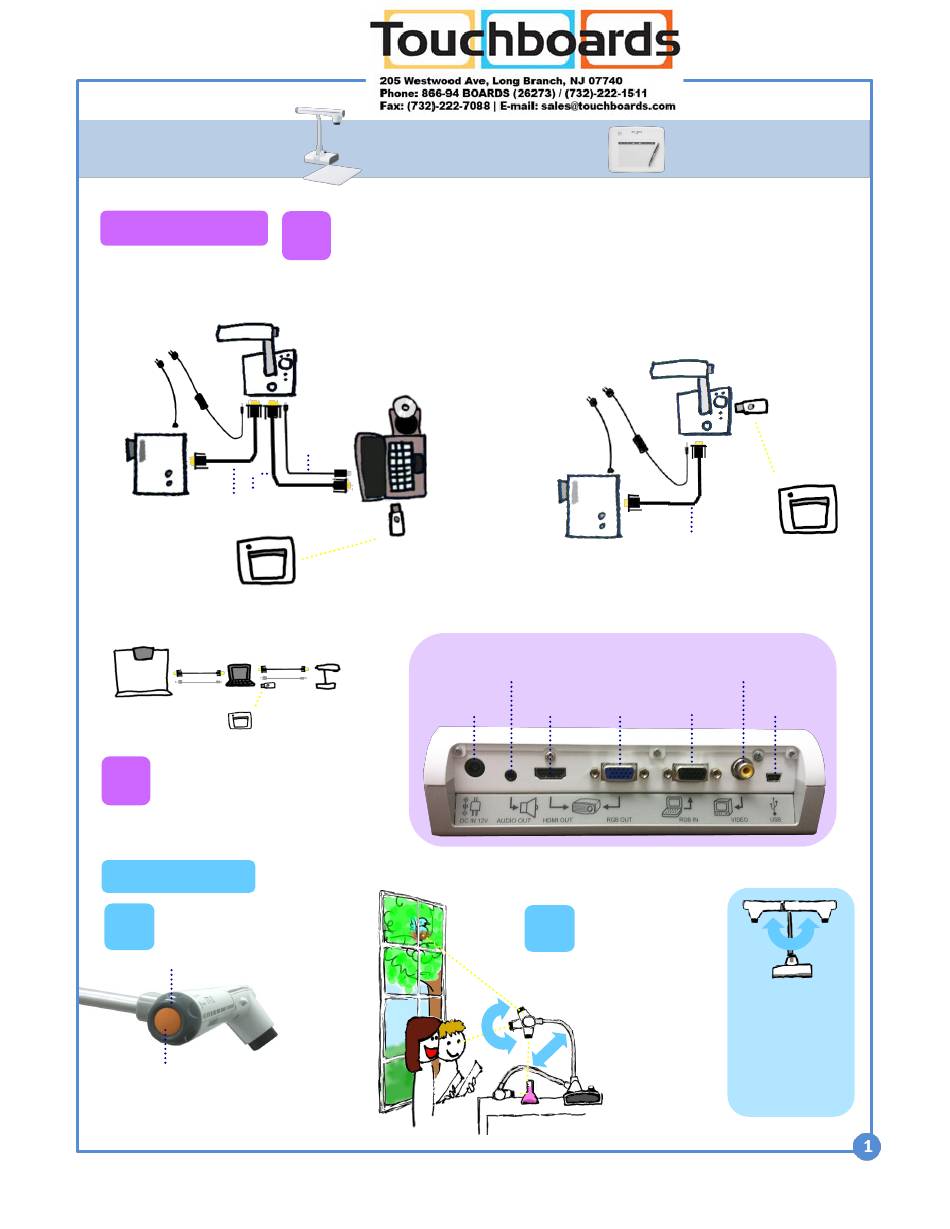

QUICK TRAINING GUIDE:
TT-12 + CRA-1 Wireless Tablet
1
Configure your classroom.
Image Mate
Accent software
USB
Wireless adapter
Plug-in for
AC adaptor
See configurations below.
Interactive Document Camera
Configuration
AC plugs
RGB/HDMI cable
Rear panel
To speaker
HDMI OUT
RGB OUT
To projector
To projector
To computer
2
Rotate
Rotate the camera
column close to a
small object or turn
the camera head
horizontally to view
students giving a
presentation,
speech, etc.
Wireless
adapter
VIDEO OUT
To TV monitor
RGB IN
USB
To computer
Rotate the arm
180° and posi-
tion camera head
downward for left
-handed users.
