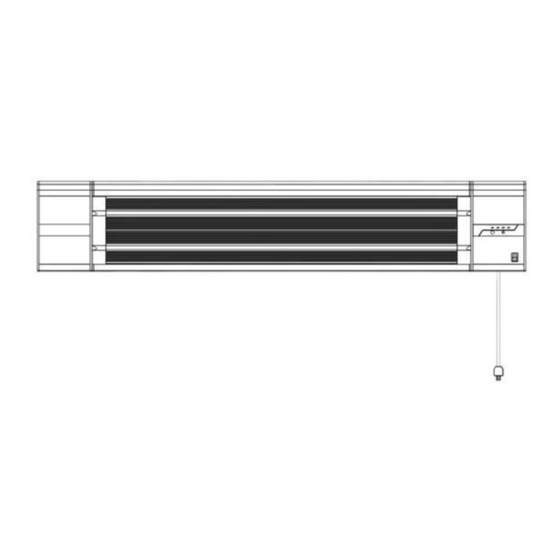

- Page 1 Instruction Manual Electric Patio Heater OL0220 Please read these instructions carefully before using your new heater...
- Page 2 Unpack the heater to make sure that all the items are present and that there are no components left in the box and that the heater head is free from any packing material. Using the detailed drawing, follow the steps to assemble your heater.
-
Page 3: Installation
Connection to 220-240 Volts Power Supply Installation to Wall It is important to ensure that the electricity supply is of adequate When fixing the heater to a wall, ensure hinges are in the underside so capacity for the electrical load required by the appliance being installed. that the lid hands down in the open position. - Page 4 ○ Assembling Process Step 3: Fix the part 1 1 on the wall, tighten the four nuts (a part of ○ ○ ○ ○ ○ ○ Step1: Assemble the bracket. ( explosive bolt M6*50) 2 with M6 spanner 11 . ○...
- Page 5 Caution Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. 1. Mount the heater outside or in a large open area and well away from any obstructions such as branches or where the heater is near any objects that can be affected by heat, such as furniture, curtains or other inflammable objects (minimum distance 1 meter).
- Page 6 33. Don’t use this heater as a sauna heater. 14. The indication of different positions of switches should be visible 34. Don’t use this heater in place of animal propagating and raising. from a distance of 1M at least. 35. Don’t immerse this heater into water for cleaning. 15.
- Page 7 Operation Although the patio heater is waterproof, do not use when raining or in Connect the power cable to a 13 amp supply which is located in a safe, dry wet conditions. area. Never connect the power cable from the electrical supply, when the ...
