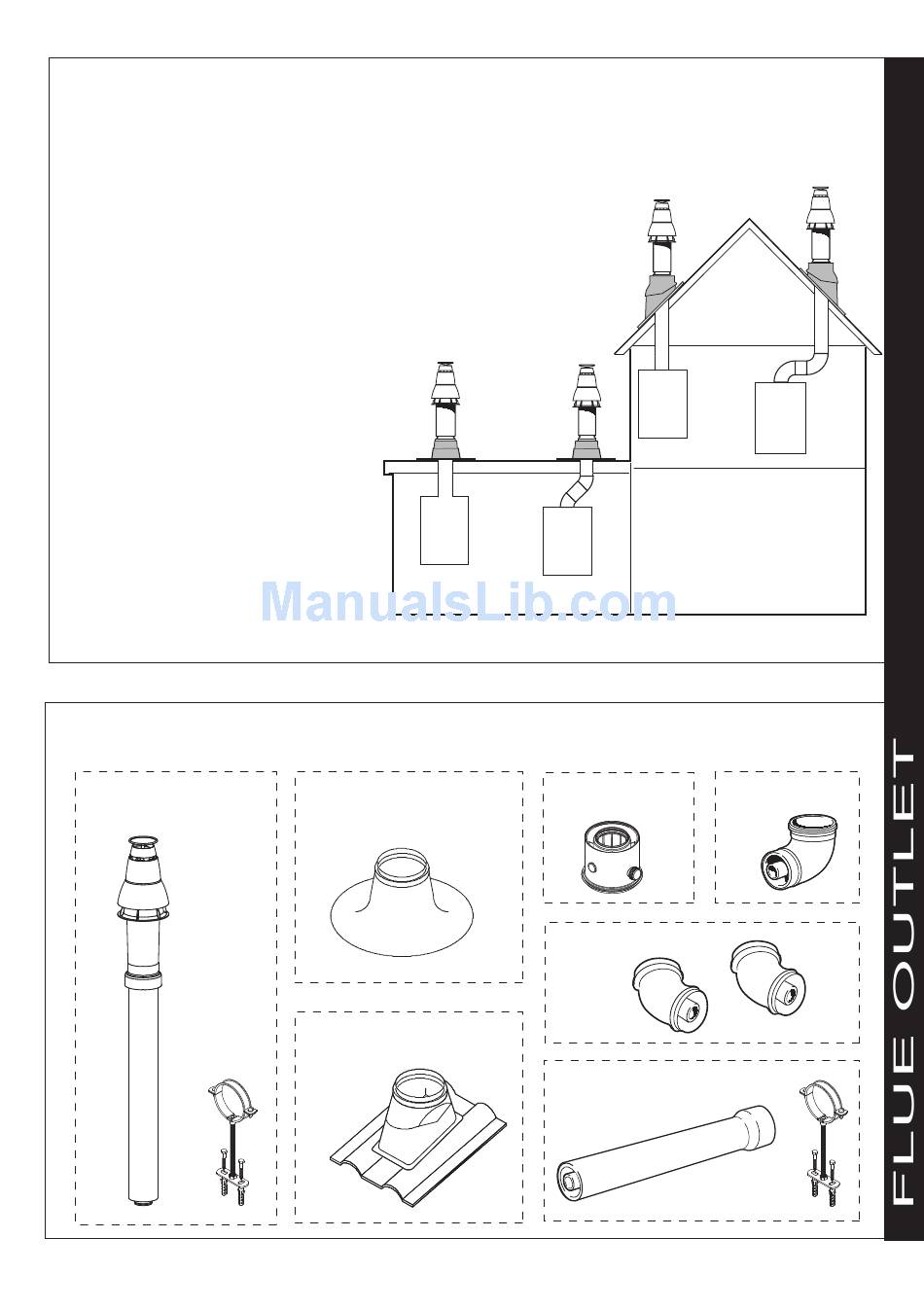

18 FITTINg ThE OpTIONaL ROOF FLUE KIT (Flat or pitched)
Note.
A flat or pitched roof flashing plate (not supplied) is required before proceeding
with the installation of this kit.
This kit is suitable for both flat and pitched roof terminations, using a concentric
flue to run vertically from the top of the boiler and terminating above roof level.
Connection to the top of the boiler is made using a separately supplied vertical
connector.
WEaThER pROOFINg
Where the flue passes through the roof line an adequate seal
must be made. This is achieved by using either:
- Flat roof weather collar
or
- Universal weather collar.
aCCEssORIEs
Flue Duct Extension Kits are available for flue
lengths extending beyond 1m. These packs
contain 1m extension ducts and may be cut
to the desired length.
If the offset vertical option is used an elbow
Kit is required. For a full accessories list
refer to page 7, Optional Extras.
19 ROOF FLUE KIT CONTENTs / OpTIONs
Flue Terminal
UIN 203132
Flue
duct
support
Ideal Logic Code Combi ES -
INsTaLLaTION
Flue seal Collar - Flat Roof
UIN 152259
Flue seal Collar - Tile Roof
UIN 152258
Installation and Servicing
Vertical connector
90
UIN 208175
UIN 203130
o
45 elbow
UIN 203131
Roof Flue Extension Duct
UIN 203129
nm8736
o
elbow
Flue
duct
support
