IDEAL Logic Code Combi ES26 Installation And Servicing page 15

8 UNpaCKINg CONT'D
Note. This flue system incorporates a removable flue outlet nose that utilises a push fit location system. This enables the
installation of deflector, high level or balcony outlet flue kits without the removal of the whole 'B' pack terminal. The appliance
must not be operated without the desired outlet nose correctly fitted in place.
Note. Location dimples must be aligned with terminal mounting frame.

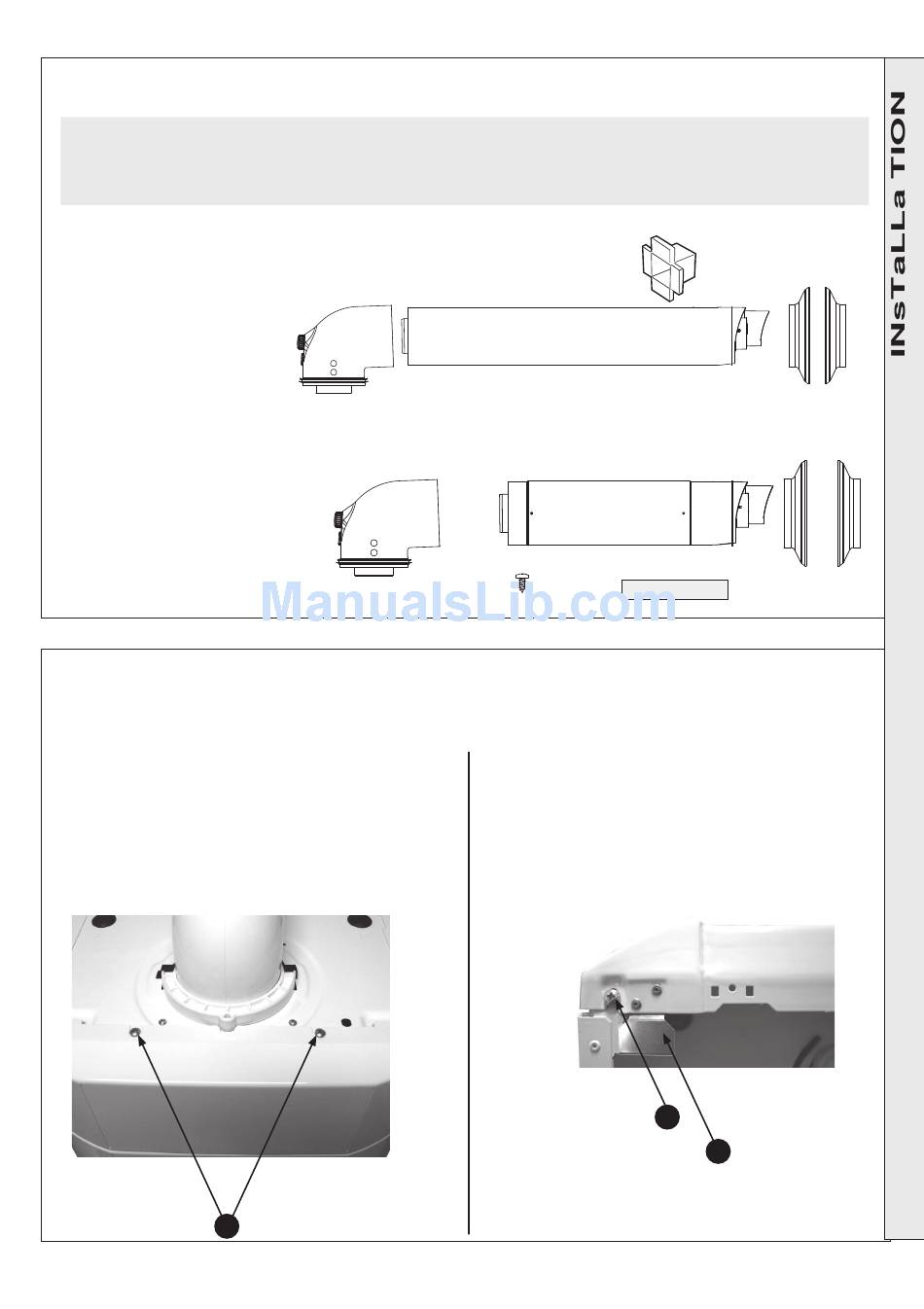

pack B Contents Non-Telescopic
A Flue terminal
B Flue turret
C Rubber terminal wall seal
D Cutting Aid
F Wall Seal (white)
pack B Contents Telescopic
A Telescopic flue terminal
B Flue turret
C Rubber terminal wall seal
D Screw
E Sealing Tape
F Wall Seal (white)
9 DOOR paNEL REMOVaL
pOD DOOR
1. Loosen the 2 screws retaining the pod door
2. Pull pod door forwards and upwards to remove
Ideal Logic Code Combi ES -
INsTaLLaTION
B
B
1
Installation and Servicing
A
A
D
BOILER FRONT paNEL
1. Loosen the 2 screws retaining the front panel.
2. Pull the two spring clips downwards to disengage.
3. Pull the front panel forward and upwards to remove.
D
E
F
E
1
2
C
C
15
