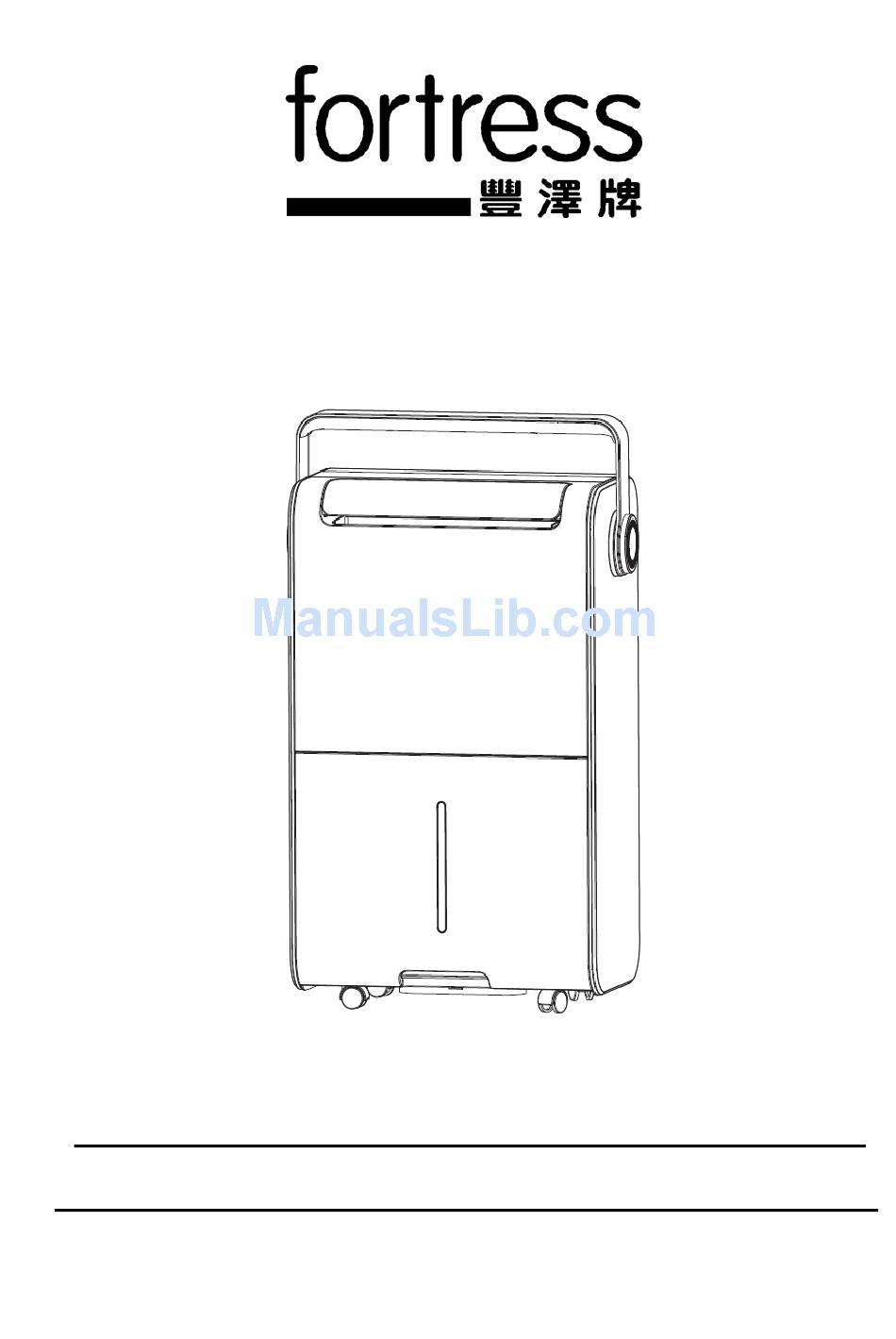

- Page 1 Dehumidifier User Manual Model: FDH2814 *Before operating the appliance, please read this manual and all the safety instructions thoroughly and retain it for future reference.
-
Page 2: Table Of Contents
CONTENT PAGE SAFETY INSTRUCTION PARTS DESCRIPTION CONTROL PANEL OPERATION INSTRUCTION MAINTENANCE INSTRUCTION TROUBLESHOOTING SPECIFICATION WARRANTY... -
Page 3: Safety Instruction
SAFETY INSTURCTION To avoid electric shock, fire or injury, please read the user manual carefully before using the appliance and keep it for future reference. This appliance is for household use only. Please use suitable power source (220-240V~/50Hz). Never immerse the appliance in water or other liquids. Do not use the appliance under direct sunshine. -
Page 4: Parts Description
PARTS DESCRIPTION CONTROL PANEL Humidity Setting Wind Direction Timer LCD Display Button Button Button Button Down ON/OFF Speed Button Mode Button Auto Button Button Button... -
Page 5: Operation Instruction
OPERATION INSTRUCTION *Connect the power cord to the correct power supply (220-240V, ~50Hz). 1. ON/OFF button Press the ON/OFF button to turn on the dehumidifier. “50%” will be displayed on the LCD display for 2 seconds, and the room humidity will be displayed afterwards. will be flashed in cycle and “... - Page 6 Wind direction button Press the wind direction button to set the direction of the air deflector and activate the movement of the air defector. will be flashed in cycle. Press again to deactivate it. Note: this function is invalid under shoes drying mode. Speed button Press the speed button to set the wind speed: high, medium, low.
-
Page 7: Continuous Drainage
DRAINAGE INSTRUCTION While the water tank is full, the water tank indicator “ ” will be on. The compressor and the fan will stop operating. Please empty the water tank. *Please turn off and unplug the appliance before removing the water tank. Remove the water tank carefully. -
Page 8: Maintenance Instruction
MAINTENANCE INSTRUCTION * Please turn off and unplug the appliance before cleaning or maintenance. Cleaning the air filter 1. Remove the air inlet grille. Air filter 2. Remove the air filter from the air inlet grille. 3. Clean the air filter with vacuum cleaner or water for cleaning and let it dry naturally. -
Page 9: Troubleshooting
TROUBLESHOOTING THE APPLIANCE DOES NOT OPERATE: Is the appliance plugged in? Is the house electricity on? Is the room temperature below 5 ℃ or above 35 ℃? If so, it is out of the working range of the appliance. -
Page 10: Specification
SPECIFICATIONS Model No. FDH2814 Rated Voltage / Frequency 220V-240V~; 50Hz Rated Power 370W At 30 ℃ 80%RH: 28L/day Dehumidifying Capacity At 26.7 ℃ 60%RH: 16L/day Dehumidifying Capacity Net Weight 15.8kg Dimension (W x D x H)mm 402 x 260 x 610 C –... -
Page 11: Warranty
WARRANTY The product has 2 years warranty from the date of purchase. The warranty shall not apply: to any product subjected to misuse, alteration, act of God, improper handling, improper transport, improper testing or unauthorized repair; to cosmetic problems or defects which result from normal wear and tear under ordinary use yet not affecting the performance or use of the product;...
