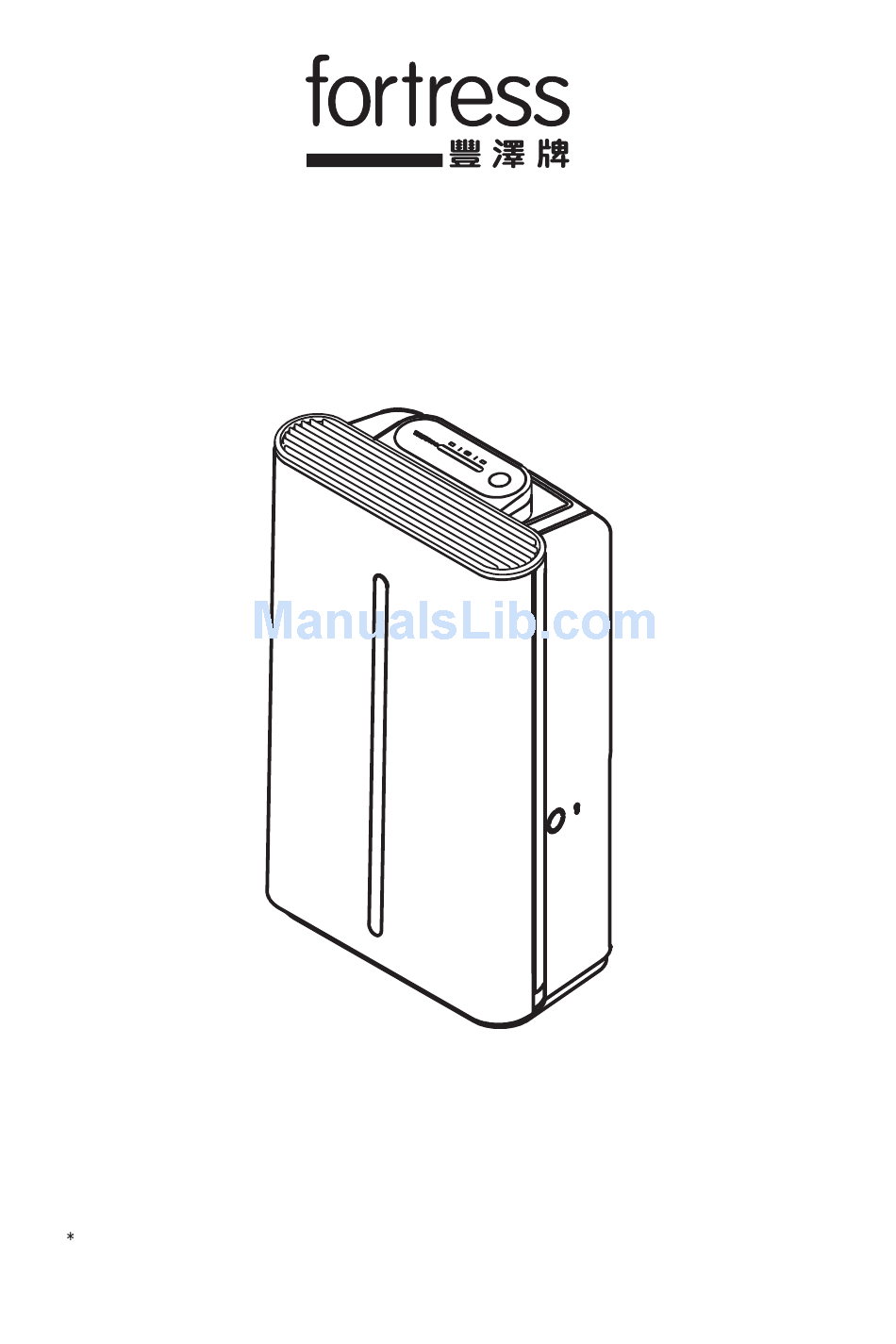

Page 1: User Manual
DEHUMIDIFIER USER MANUAL Model: FDH1413 Before operating the unit, please read this manual thoroughly and retain it for future reference. -
Page 2: Table Of Contents
CONTENT SAFETY INSTRUCTION…………………………….……………………… PARTS DESCRIPTION……………………………………………………..CONTROL PANEL…………….……………………………...……………... OPERATION INSTRUCTION…………………………………………..PRECAUTIONS…………………………………………...……………..DRAINAGE INSTRUCTION………………..………………………………. CONTINUOUS DRAINAGE…………………………………………………. MAINTENANCE INSTRUCTION…………………………………………… TROUBLE SHOOTING……………………………………………………… SPECIFICATION……………………………………………………………… WARRANTY……………………..…………………………………………... -
Page 3: Safety Instruction
SAFETY INSTURCTION To reduce electric shock, risk of fire or injury, please read the operating instructions carefully before using the dehumidifier for the first time and keep them for future reference. Never immerse the appliance in water or other liquids. Never operate the appliance if any cable or part has been damaged or malfunction. -
Page 4: Parts Description
PARTS DESCRIPTION FRONT Air Outlet Louvre Control Panel Power Cord Hook Hole Hose Hole Power Cord REAR Handle Air Inlet Water Tank... -
Page 5: Control Panel
CONTROL PANEL Water Tank Full Indicator Operation Indicator Defrost Indicator DEFROST FULL AIR CLEAN ON/OFF MODE FDH 1413 ON/OFF Button Function Button OPERATION INSTRUCTION Remarks *Be sure of correct voltage (220-240V, 50Hz) is used and plug is well plugged. You can adjust the mode according to the actual situation, press “MODE” button to switch to other function: AIR CLEAN When setting at “LO”, unit operates at low wind speed and compressor turns... -
Page 6: Precautions
PRECAUTIONS 1. The dehumidifier shall not operate if the humidity setting is higher than the ambient humidity. 2. Drain the water when the water tank is full or the water tank full indicator illuminates. And then install the empty water tank back to its position, so the unit can continue its operation. -
Page 7: Drainage Instruction
DRAINAGE INSTRUCTION The water tank full indicator will be turned on when water full, compressor and fan will stop operation, please empty the water. Note: Disconnect the unit from power source before empty the water tank. 1. Remove water tank from the unit carefully. 2. -
Page 8: Maintenance Instruction
MAINTENANCE INSTRUCTION *Disconnect the unit from the power source before cleaning. Cleaning the air filter Remove the filter and clean it with vacuum cleaner or warm water (below 40 C) every 2 week. 1. Remove air inlet cover. 2. Clean the air filter with vacuum cleaner or warm water (below 40 C) every 2 week, and let it become to dry naturally then replace. -
Page 9: Trouble Shooting
TROUBLE SHOOTING THE UNIT DOES NOT OPERATE: Is the unit plugged in? Is the house electricity on? Is the room temperature below 5 ℃ or above 35 ℃? If so, then it is out of the working range of the unit. Ensure the humidistat (or ON/OFF switch) is turned on. -
Page 10: Specification
SPECIFICATIONS Model No. FDH1413 Power Supply 220V-240V~; 50Hz At 30 ℃ 80%RH: Dehumidifying Capacity 14L/day Power Consumption 200W At 26.7 ℃ 60%RH: Dehumidifying Capacity 6.5L/day Power Consumption 180W Net Weight 9.5kg Dimension (W x D x H)mm 320 x 189 x 525 Temp. -
Page 11: Warranty
WARRANTY The product has 2 years warranty from the date of purchase. The warranty shall not apply: to any Product subjected to accident, misuse, neglect, alteration, Acts of God, improper handling, improper transport, improper use, improper testing or unauthorized repair; to cosmetic problems or defects which result from normal wear and tear under ordinary use, and do not affect the performance or use of the product.
