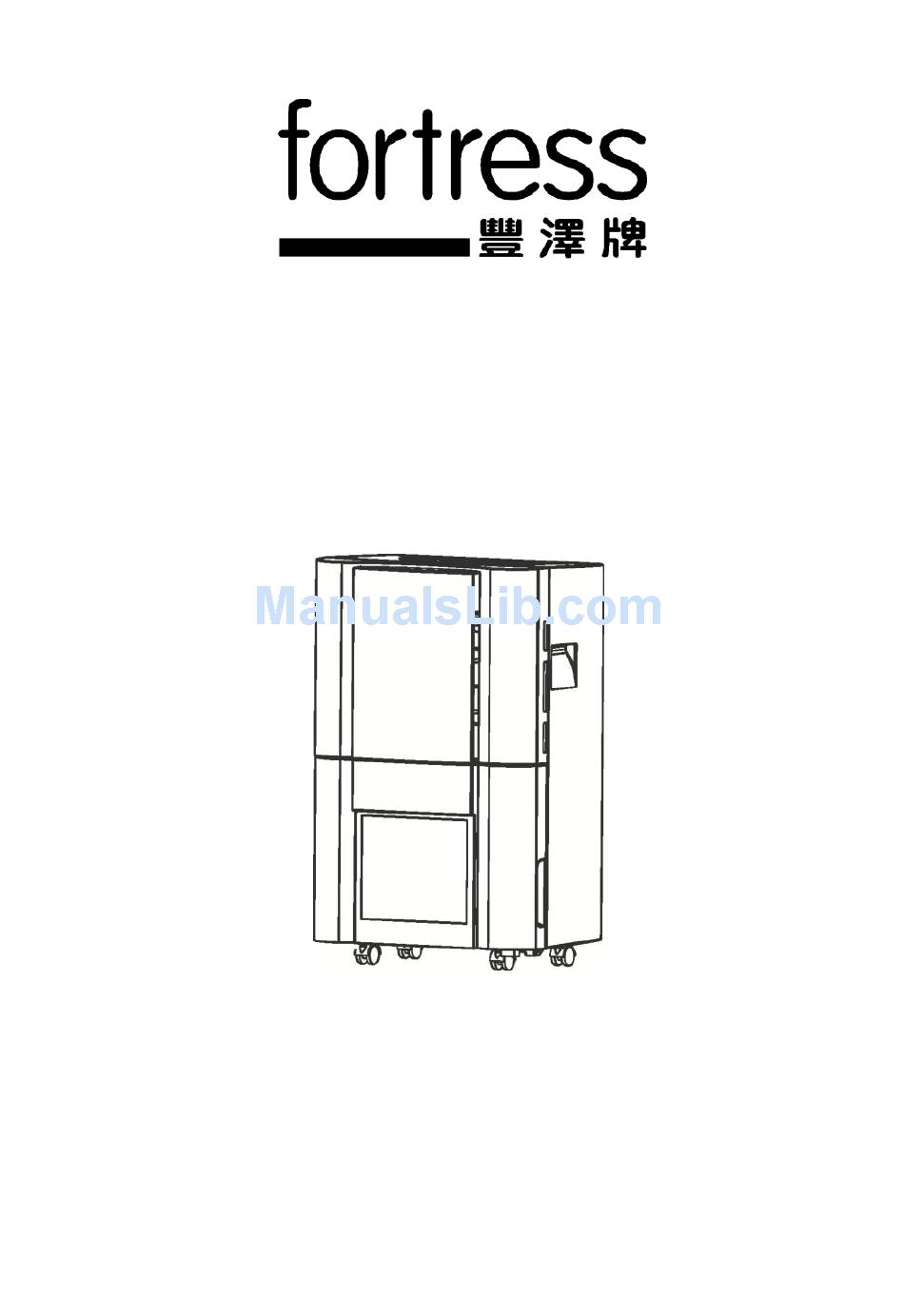

Page 1: User Manual

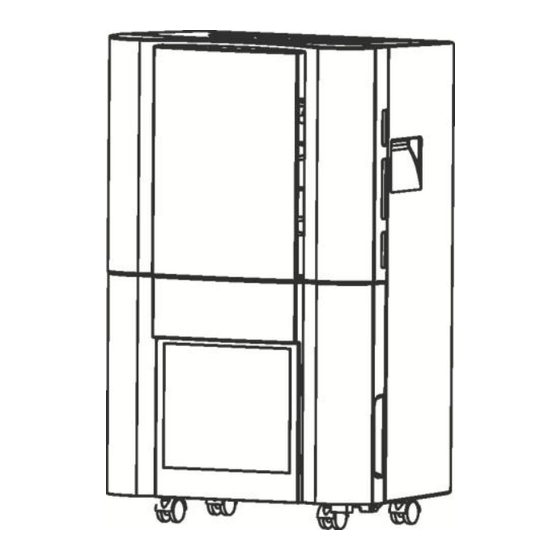

FDH1010M / FDH1210E DEHUMIDIFIER USER MANUAL *Before operating the unit, please read this manual thoroughly, and retain it for future reference. -
Page 2: Table Of Contents
Contents Page Safety Information ___________________ Name of Parts _______________________ Control Panel Description ____________ Operation Instruction ________________ Drainage ___________________________ Maintenance Instruction ____________ Trouble shooting ____________________ Specification _______________________ Warranty ___________________________... -
Page 3: Safety Information
Safety Instruction To reduce electric shock, risk of fire or injury, please read the operating instructions carefully before using your dehumidifier for the first time and keep them in a safe place. Never immerse the appliance in water or other liquids. Never operate the appliance if a cable or connector has been damaged, after appliance malfunction or if the appliance was dropped or any damaged. -
Page 4: Name Of Parts
Name of Parts Front Control panel Air inlet Handle Filter (inside the unit) Water tank Water level window Caster Handle for water tank Rear Air outlet Drain hole for continuous drain Power cord compartment Power cord... -
Page 5: Control Panel Description
Control Panel Description Mechanical Type (Model: FDH1010M) 13. Humidistat 14. “Water Full” indicator 15. Power operation indicator Electronic Type (Model: FDH1210E) ON/OFF button Timer button Humidity setting button Set temperature button SPEED (ventilation) button Power indicator “Full Water” indicator Low speed indicator... -
Page 6: Operation Instruction
Operation Instruction Mechanical type Plug the unit into a correct mains socket. (Please refer to the rating label at the rear of the unit for correct voltage/frequency.) Switch the HUMIDISTAT to required humidity setting. The intensity of the humidity extraction is increased clockwise. For continuous working, set the humidistat to position 'MAX'. -
Page 7: Drainage
Drainage While the water tank is full, the compressor will stop for self-protection and the water full indicator will turn into red. To move the water tank, pull it out squarely from the unit by using the handle at the water tank. - Page 8 Pull out the water tank. Use the stopper taken from Hole A to stick into drain Hole B (FIG. 3). Ensure the water will always drain away freely and the tube will remain in right place. Note! In very cold weather conditions, precautions should be taken to prevent the water tube from freezing.
-
Page 9: Maintenance Instruction
Maintenance Instruction Always unplug the unit from the mains before carrying out any maintenance or cleaning of the unit. CLEANING THE BODY Use soft cloth to wipe the unit clean. Don't ever use volatile chemicals, gasoline, detergents, chemically treated clothes, or other cleansing solutions. -
Page 10: Trouble Shooting
Trouble shooting THE UNIT DOES NOT OPERATE: Is the unit plugged in? Is the house electricity on? Is the room temperature below 5 C or above 35 C? If so, then it is out of the working range of the unit. -
Page 11: Specification
Specification Model no. FDH1010M FDH1210E Power supply 220-240V~, 50Hz Dehumidification capacity 10 L/day 12 L/day Power consumption 260W 280W Air volume (max.) 180m Fan speed Timer 1~24h Refrigerant R134a Working range 5 ~ 35 Water tank capacity 3.6 L Size (WxDxH) 33 x 25 x 52.2 cm... -
Page 12: Warranty
WARRANTY The product has 2 years warranty from the date of purchase. The warranty shall not apply: to any Product subjected to accident, misuse, neglect, alteration, Acts of God, improper handling, improper transport, improper use, improper testing or unauthorized repair; to cosmetic problems or defects which result from normal wear and tear under ordinary use, and do not affect the performance or use of the product.
