INSTRUCTION MANUAL
Password Protected 4-Mic Super Voice Re-
corder
Revised: June 4, 2014
Thank you for purchasing from SafetyBasement.com! We appreciate your business.
We made this simple manual to help you enjoy your new product as quickly and easily as
possible.
Be sure to check the TECH SUPPORT tab on your product page at SafetyBasement.com
for the latest available manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VR8204 and is the answer not in the manual?

Questions and answers

Related Manuals for SB VR8204

Summary of Contents for SB VR8204

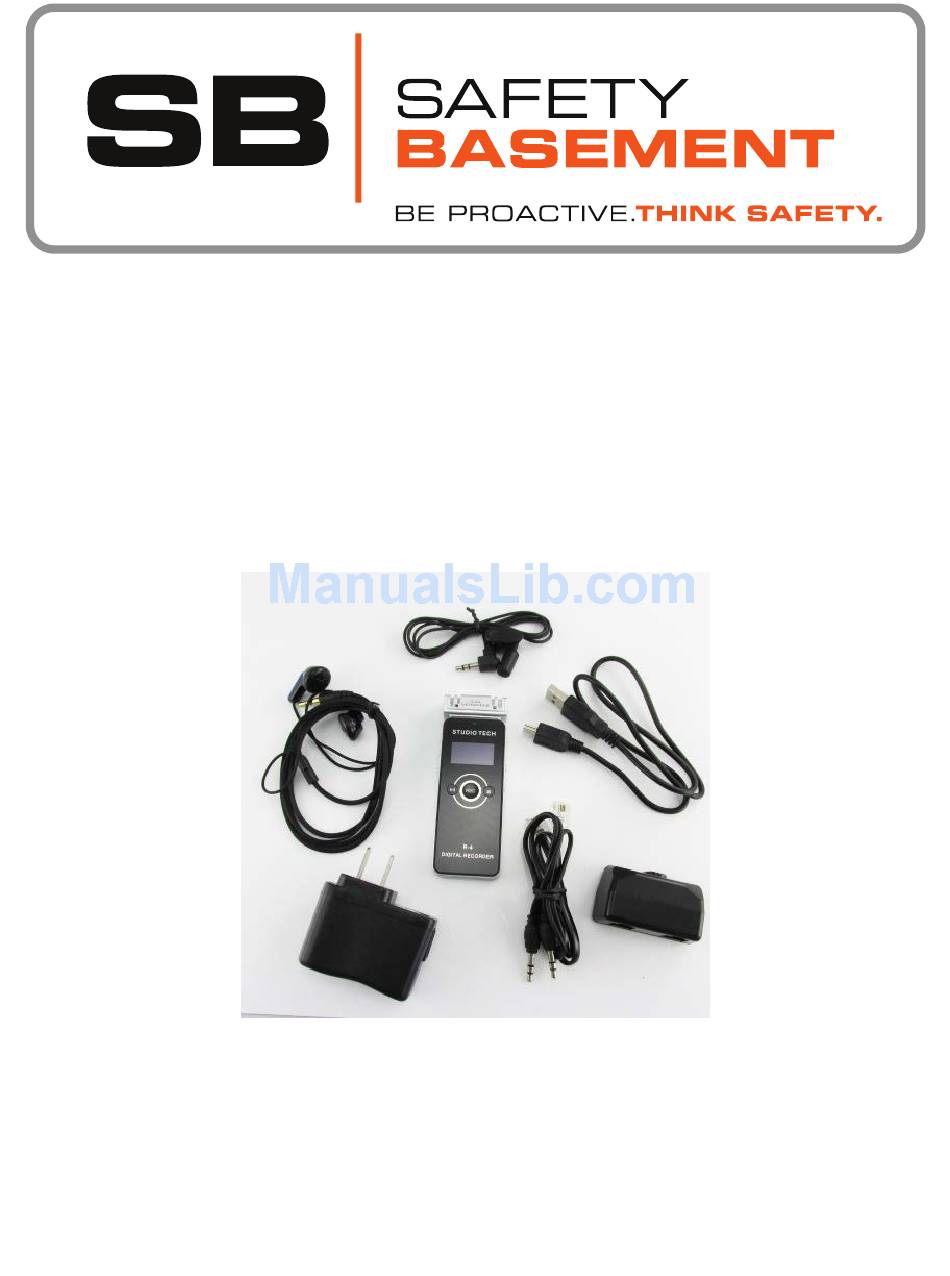

  • Page 1 INSTRUCTION MANUAL Password Protected 4-Mic Super Voice Re- corder Revised: June 4, 2014 Thank you for purchasing from SafetyBasement.com! We appreciate your business. We made this simple manual to help you enjoy your new product as quickly and easily as possible.

  • Page 2: Product Reference

    PRODUCT MANUAL Password Voice Recorder : SB-VR8204 PRODUCT REFERENCE Button LOCK VOL + VOL - SD card slot Delete USB charging/ PREVI- SYSTEM NEXT Download port POWER ON/OFF MODE Microphone ACCESSORIES: USB cable. con- Power nects straight to adapter PC or to power...
  • Page 3 PRODUCT MANUAL Password Voice Recorder : SB-VR8204 PRODUCT REFERENCE Headphone Mic Jack Page 3 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...

  • Page 4: Connecting To A Pc

    PRODUCT MANUAL Password Voice Recorder : SB-VR8204 CHARGING Before you use your voice recorder, you should charge it for several hours. You can do this by connecting it to your computer’s USB port, or use included wall adapter. Hint: Charge faster via wall adapter.
  • Page 5 PRODUCT MANUAL Password Voice Recorder : SB-VR8204 QUICK START - RECORD Need to start recording immediately, without reading the entire manual first, then read this page: Turn the Power Switch to ON. In fact, leave the Power Switch in the ON all the time.

  • Page 6: Quick Playback

    PRODUCT MANUAL Password Voice Recorder : SB-VR8204 QUICK PLAYBACK This section only adresses playing back recordings Start from ANY SCREEN 1. press PLAY. Unit will begin playing back recorded files in order. Press PAUSE to pause playback. Press play again to resume...
  • Page 7 PRODUCT MANUAL Password Voice Recorder : SB-VR8204 SETTINGS Left Side Button LOCK VOL + VOL - SD card slot Delete Right Side USB charging/ PREVI- SYSTEM NEXT Download port POWER ON/OFF MODE Please turn the Main System/Power Switch to ON.
  • Page 8 PRODUCT MANUAL Password Voice Recorder : SB-VR8204 MODES There are several MODES available to you with the Password Voice recorder. You can see the Modes by pressing and holding the MODE button until you see the 4 mode options below:...

  • Page 9: Set Password

    PRODUCT MANUAL Password Voice Recorder : SB-VR8204 SET PASSWORD This unit allows for password protection. You can turn password protection ON or OFF. The unit begins by having password protection ON. The default password is 0000. 1. Turn unit ON (via side switch if this is the first time using it or via pressing and holding the REC button until screen turns on) 2.
  • Page 10 PRODUCT MANUAL Password Voice Recorder : SB-VR8204 SET PASSWORD..continued CHANGING PASSWORD (continued): SECOND PASS- 11. On the next screen you will be asked for a WORD, which is really asking you to confirm your password by entering it again. Do it on this screen.

  • Page 11: Deactivate Password

    PRODUCT MANUAL Password Voice Recorder : SB-VR8204 DEACTIVATE PASSWORD If you wish to deactivate the password feature, follow RADIO MODE SETTING MODE the instructions below. VOICE TIME SET 1. Go to MODES screen and select SETTING MODE 2. use NEXT button to Select SET PASWORD. Press MODE to select.

  • Page 12: Set The Date And Time

    PRODUCT MANUAL Mi6 Mini Voice Recorder : SB-VR9000 PRODUCT MANUAL Password Voice Recorder : SB-VR8204 SET THE DATE AND TIME You’ll first want to set the Date and Time for your voice recorder. Remember, your Date and Time will RESET when you turn OFF the Main Power Switch. So after you turn the main switch to ON, dont turn it off unless you are done using the device for a while, otherwise just charge it when it runs out of juice, then press and hold the REC button until screen turns on.
  • Page 13 PRODUCT MANUAL Password Voice Recorder : SB-VR8204 PRODUCT MANUAL Mi6 Mini Voice Recorder : SB-VR9000 FORMAT & QUALITY The settings most users may want to adjust next is related to the Format and Quality of your recordings. This will directly impact how many hours you will get on the 8GB memory.

  • Page 14: Radio Mode

    PRODUCT MANUAL Password Voice Recorder : SB-VR8204 RADIO MODE This mode allows you to listen to, record and manage RADIO MODE SETTING MODE your radio settings. VOICE TIME SET GETTING TO RADIO MODE (from MAIN menu screen) MODE to RECORDING QUALITY menu 1.
  • Page 15 PRODUCT MANUAL Password Voice Recorder : SB-VR8204 PRODUCT MANUAL Mi6 Mini Voice Recorder : SB-VR9000 OTHER DEVICE SETTINGS We assume at this time you have a sense of the controls and how to toggle through and select options. So we will just explain below what the remaining options do so that you know what you are working with.
  • Page 16 PRODUCT MANUAL Password Voice Recorder : SB-VR8204 TIMED/SCHEDULED RECORDINGS You can schedule the recorder to automatcally start and RADIO MODE SETTING MODE stop recordings at pre-defined times. This feature is avail- VOICE TIME SET TIMES SET able under the feature.
  • Page 17 PRODUCT MANUAL Password Voice Recorder : SB-VR8204 19. Press MODE to select. 20. Press the DEL button or use NEXT button to highlight EXIT and press MODE to exit. 21. You have now set the scheduled recordings. Your recorder will begin and stop recording at the set times at the frequencies selected.
  • Page 18 PRODUCT MANUAL Mi6 Mini Voice Recorder : SB-VR9000 PRODUCT MANUAL Password Voice Recorder : SB-VR8204 WHERE ARE YOUR FILES? You can playback your files using without the need of plugging the device to your computer. This recorder has a speaker.
  • Page 19 PRODUCT MANUAL Password Voice Recorder : SB-VR8204 PRODUCT MANUAL Mi6 Mini Voice Recorder : SB-VR9000 WHERE ARE YOUR FILES? Use standard Windows and Mac techniques to COPY, MOVE and DELETE your files. We recommend you COPY your files to your PC for archiving and best playback.
  • Page 20 PRODUCT MANUAL Mi6 Mini Voice Recorder : SB-VR9000 PRODUCT MANUAL Password Voice Recorder : SB-VR8204 SUGGESTED SOFTWARE Your Windows PC or Mac has built-in software that will play most of the files created by devices like yours. However, if you are having problems playing your files, or need more options, please download and try these programs.

  • Page 21: Device Specifications

    PRODUCT MANUAL Password Voice Recorder : SB-VR8204 DEVICE SPECIFICATIONS Audio Formats PCM, MP3 Audio Encoding WAV: 384Kbps MP3: 192,128,64Kbps See chart for recording times. Page 21 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...
  • Page 22 PRODUCT MANUAL Password Voice Recorder : SB-VR8204 DEVICE SPECIFICATIONS Memory Built In 8 GB Memory Expansion up to 32 GB Micro SD card Battery Type Internal Rechargeable Charger Type via USB port Please check our site for the latest available manual for this product.
