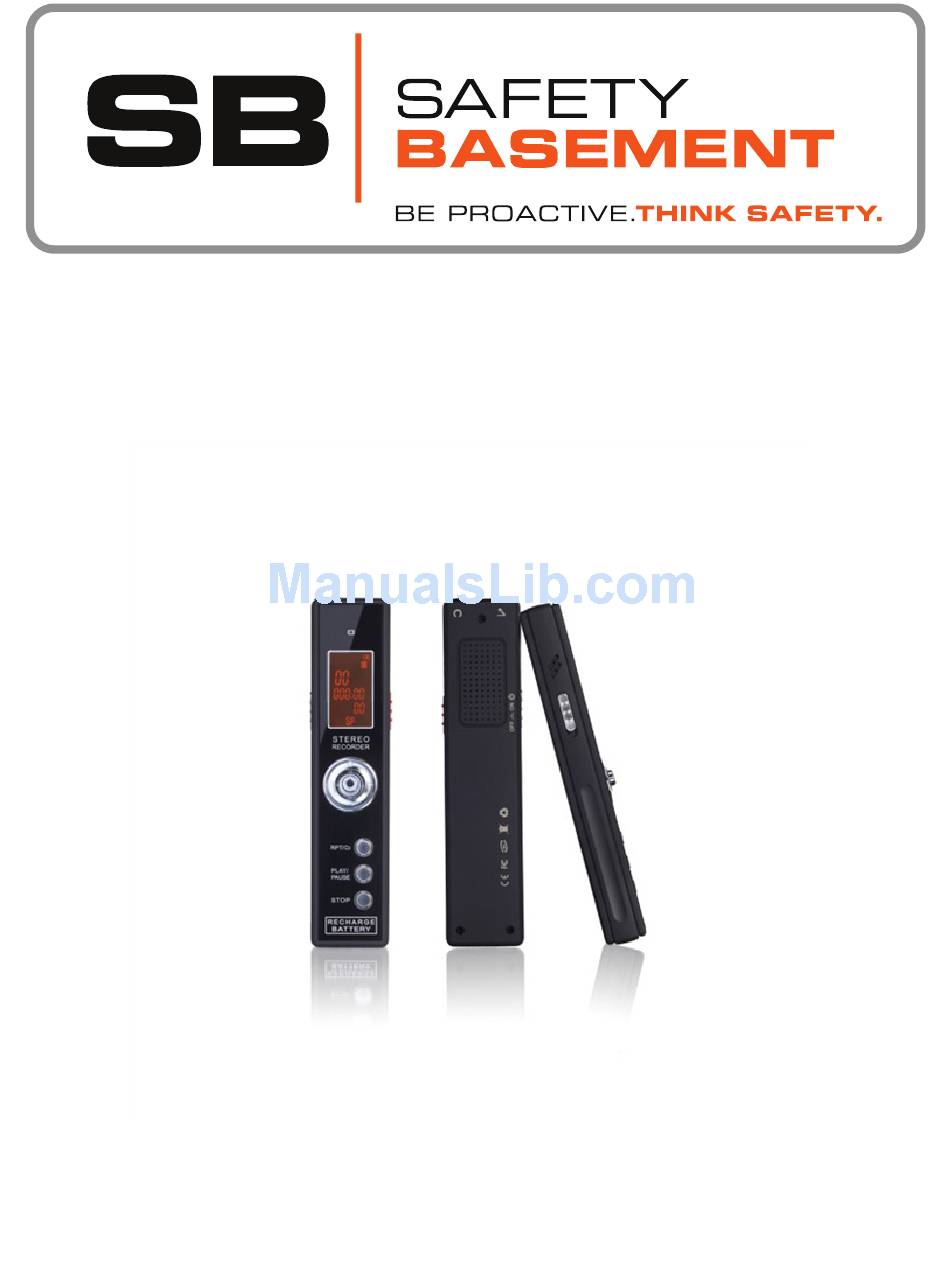

INSTRUCTION MANUAL
"The Charger" 40 Hour Voice Recorder
SB-VR5700
Revised: Feb 14, 2013
Thank you for purchasing from SafetyBasement.com! We appreciate
your business.
We made this simple manual to help you enjoy your new product as
quickly and easily as possible.
Be sure to check the TECH SUPPORT tab on your product page at
SafetyBasement.com for the latest available manual.

Advertisement

Table of Contents
loading

Related Manuals for SB SB-VR5700

Summary of Contents for SB SB-VR5700

  • Page 1 INSTRUCTION MANUAL “The Charger” 40 Hour Voice Recorder SB-VR5700 Revised: Feb 14, 2013 Thank you for purchasing from SafetyBasement.com! We appreciate your business. We made this simple manual to help you enjoy your new product as quickly and easily as possible.

  • Page 2: Product Reference

    PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 PRODUCT REFERENCE Speaker Page 2 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...
  • Page 3 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 PLAYBACK SCREEN REFERENCE Battery Level Current Folder A, B, C, D or M (MP3) Track File Time Hours : Minutes Repeat / Loop File Time Setting Seconds VOLUME To adjust the Volume during playback or monitoring, press the Navigation Stick UP and DOWN.
  • Page 4 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 RECORDING SCREEN REFERENCE Recording Light Current Folder A, B, C, D (MP3 folder is not available for recordings) Voice Activated Track Recording is ON File Time Hours : Minutes File Time Seconds Recording Quality...

  • Page 5: Before Your First Use

    PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 BEFORE YOUR FIRST USE Please charge fully before use. Please use only the adapter that was included with your device. Do not use other adapters, as they may damage your device. 1. Be sure that the device is OFF.
  • Page 6 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 POWER ON Turn on your Charger Recorder by pushing the Power Switch UP to the ON position. If your Charger Recorder goes to sleep, you can turn it back on by holding the PLAY button until it turns back on.

  • Page 7: Quick Record

    PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 QUICK RECORD To start recording, using the current recording settings, push the RECORD switch UP. Your Charger Recorder will immediately start recording using the current settings. To stop recording, and save your file, push the RECORD button DOWN.
  • Page 8 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 SETTINGS - ERASE There are several options available to you when you are in Playback Mode, while paused or stopped. 1. While paused or stopped, hold the Navigation Stick down until you see ERASE. Erase is the first option in the menu.
  • Page 9 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 SETTINGS - RECORD QUALITY 1. While paused or stopped, hold the Navigation Stick down until you see ERASE. Erase is the first option in the menu. 2. Press the Navigation Stick again and you will see REC. This is your Record Quality Setting.
  • Page 10 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 SETTINGS - VOICE ACTIVATION 1. While paused or stopped, hold the Navigation Stick down until you see ERASE. Erase is the first option in the menu. 2. Press the Navigation Stick until you see VOR. This is your Voice Activated Recording option.
  • Page 11 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 SETTINGS - REPEAT / LOOPING 1. While paused or stopped, hold the Navigation Stick down until you see ERASE. Erase is the first option in the menu. 2. Press the Navigation Stick until you see REP. This is your Repeat or Looping option.
  • Page 12 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 SETTINGS - RECORD LIGHT The LED Recording Light is located above the display. This will blink during recording when set to ON. 1. While paused or stopped, hold the Navigation Stick down until you see ERASE. Erase is the first option in the menu.
  • Page 13 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 SETTINGS - SENSITIVITY 1. While paused or stopped, hold the Navigation Stick down until you see ERASE. Erase is the first option in the menu. 2. Press the Navigation Stick until you see SENSE. This is where you can adjust the sensitivity of your Voice Activated Recordings.
  • Page 14 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 RECORDING 1. You can record at any time by pushing the Record Switch UP to Record. 2. Stop recording by pushing the Record Switch DOWN. 3. To record to a particular folder, A, B, C or D, push the Folder Button until your folder is selected.
  • Page 15 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 RECORDING - TELEPHONE ADAPTER You can record telephone conversations using the included phone adapter. You will need the following items, all included with your recorder: 1. The Charger Recorder 2. The Telephone Adapter Box 3.
  • Page 16 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 RECORDING - TELEPHONE ADAPTER 1 foot telephone cable goes here Using the 1 foot telephone cable that came with your recorder, plug one end into the Telephone Adapter into the connector named TEL.
  • Page 17 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 RECORDING - TELEPHONE ADAPTER Your Telephone Adapter should look like this. Connect the other end of the audio cable to the LINE IN connector on your recorder. Line In Connector Audio cable. Other end is...
  • Page 18 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 RECORDING - TELEPHONE ADAPTER The audio cable is now connected to the recorder and the Telephone Adapter. You now need to set your recorder to use the Adapter through the LINE IN connection.
  • Page 19 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 PLAYBACK 1. Press the FOLDER button to choose the folder you want to playback from. 2. If you want your MP3 collection, hold the folder button until the M folder lights up. 3. Push the Navigation Stick RIGHT and LEFT to choose a track.
  • Page 20 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 PLAYBACK - REPEAT A SEGMENT While playing a file, you can repeat a segment. This is helpful if you need to listen to the same segment a few times, while taking notes, etc.

  • Page 21: Connecting To Pc / Mac

    PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 CONNECTING TO PC / MAC WINDOWS - RETRIEVE YOUR FILES 1. Device must be OFF before connecting to your PC. 2. Connect USB cable to watch first. 3. Connect other end of USB cable to your PC using USB port directly on PC. Note: A USB hub may cause your device to not work properly.

  • Page 22: Device Specifications

    PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 DEVICE SPECIFICATIONS Audio Format (Voice Recordings) Audio Encoding (Voice Recordings) HQ (192kbps), SP (64kbps), LP (32kbps) LINE IN (384kbps) Audio Format (Playback) MP3, WAV* *Playback of WAV files created on Device Audio Encoding (Playback)
  • Page 23 PRODUCT MANUAL “Charger” Voice Recorder : SB-VR5700 SUGGESTED SOFTWARE Your Windows PC or Mac has built-in software that will play most of the files created by devices like yours. However, if you are having problems playing your files, or need more options, please download and try these programs.
