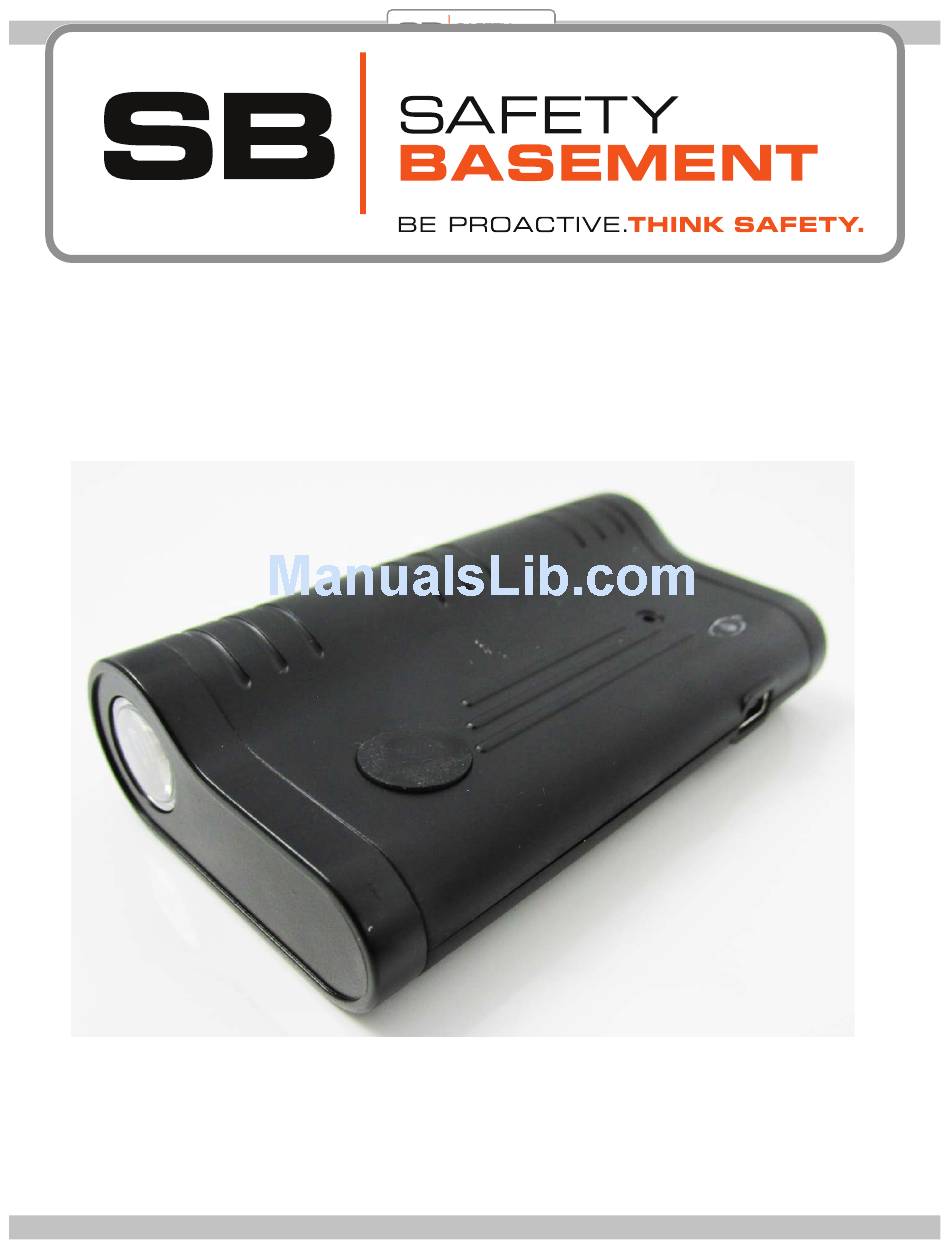

BlackRange Covert Premium Voice Recorder, QX5555
PRODUCT MANUAL
INSTRUCTION MANUAL
BlackRange™ totally Covert Premium Voice
Recorder, QX5555
Revised: May 14 2015
Thank you for purchasing from SafetyBasement.com! We appreciate your business.
We made this simple manual to help you enjoy your new product as quickly and easily as
possible.
Be sure to check the TECH SUPPORT tab on your product page at SafetyBasement.com
Page 1
www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524
for the latest available manual.
Advertisement
Table of Contents
Related Manuals for SB BlackRange QX5555
Summary of Contents for SB BlackRange QX5555
- Page 1 BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL INSTRUCTION MANUAL BlackRange™ totally Covert Premium Voice Recorder, QX5555 Revised: May 14 2015 Thank you for purchasing from SafetyBasement.com! We appreciate your business. We made this simple manual to help you enjoy your new product as quickly and easily as possible.
-
Page 2: Product Reference
BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL PRODUCT REFERENCE Microphone Indicator Light USB Charger & Download Port LED Light POWER ON/OFF Page 2 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524 Page 2 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524... - Page 3 BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL ACCESSORIES Included: USB cable Optional: Power Adapter Page 3 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...
- Page 4 BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL CAUTION Please Do Not Charge device via USB ports on a wall outlet. See image below: USB ports on a Wall outlet might damage device due to potential variability of power from wall outlet Page 4 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...
- Page 5 BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL CAUTION Please Use USB cable included to either charge the device via your computer or via power adapter purchased Page 5 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...
-
Page 6: Voice Recording
BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL VOICE RECORDING Microphone Indicator Light USB Charger & Download Port LED Light POWER ON/OFF 1. Turning Voice Recorder On/Off: On: Quickly press Power button 2 times and then press it once for a long time until dark blue indicator light turns on for 3 seconds. -
Page 7: Playing Back Recordings
BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL PLAYING BACK RECORDINGS VIA COMPUTER Your voice recordings are located inside the Date Stamped folders. Double click this folder to view your voice recordings. You should COPY these files to your PC for archiving and best playback. To create more storage space, you can delete the files from your device. - Page 8 BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL RECORD SETTING FILE IMPORTANT: This unit is already optimized for best recording. It is also defaulted to VOICE ACTIVATION MODE and to record when voice is heard, around the clock. It turn on and record when any voice is hear, and will pause and stay on standby when no sound is present.
- Page 9 BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL IMPORTANT: If you make any changes to features such as time, voice YOU MUST sensitivity, mute time, voice quality, record amplify and record time periods, change Update Setting to Y instead of N. That way, the system will update settings after U disk is exited.
-
Page 10: Time Settings
BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL TIME SETTINGS Device allows you to enter the current time for your recording needs. Current time is displayed as Year-Month-Day Hour-Minute-Second format. For example: The current time at the preparation of the manual was April 13, 2015 at 6.12.00 pm. Page 10 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524... - Page 11 BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL VOICE SENSITIVITY SETTINGS Device allows you to adjust voice sensitivity. The smaller the number for voice sensitivity the better it is at capturing lower level sounds. Voice Sensitivity Range: 0-50 Default Rate: 10 Voice Sensitivity Setting here is set to default rate of 10 Page 11...
- Page 12 BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL MUTE TIME SETTINGS This feature will allow you to choose how many minutes after conversation ends the device will go to a standby mode. You can choose between 0 to 999 minutes and the default rate used in this case is 3 minutes.
- Page 13 BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL VOICE QUALITY SETTINGS Device allows you to adjust voice quality. The higher the voice quality, the lower the stored audio hours will be. Rate 1: 32Kbps, 8G memory can store 580 hours audio Rate 2: 64Kbps, 8G memory can store 290 hours audio Rate 3: 192kbps, 8G memory can store 96 hours audio Voice Quality Settings...
- Page 14 BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL RECORD AMPLIFY SETTINGS Device allows you to adjust for long distance recording. Voice will be enhanced by amplifying record. Rate 1: Within 3.28 Feet range Rate 2: Within 3.28-9.84 Feet range Rate 3: Within 9.84-16.40 Feet range Rate 4: Over 16.40 Feet range For example, Rate 4 will amplify voice so it can...
- Page 15 BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL SCHEDULED RECORDINGS SETTINGS This section talks about how you can schedule recordings at specific times and dates of the week. The current default setting is set to record around the clock in voice acti- vation mode.
- Page 16 BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL SUGGESTED SOFTWARE Your Windows PC or Mac has built-in software that will play most of the files created by devices like yours. However, if you are having problems playing your files, or need more options, please download and try these programs.
-
Page 17: Device Specifications
BlackRange Covert Premium Voice Recorder, QX5555 PRODUCT MANUAL DEVICE SPECIFICATIONS Format Wave Bit Rate Mode Constant Bit Rate 32 Kbps, 64 Kbps, 192 Kbps, Playback MP3, WAV* (* playback of WAV creat- ed on device) Page 17 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...
