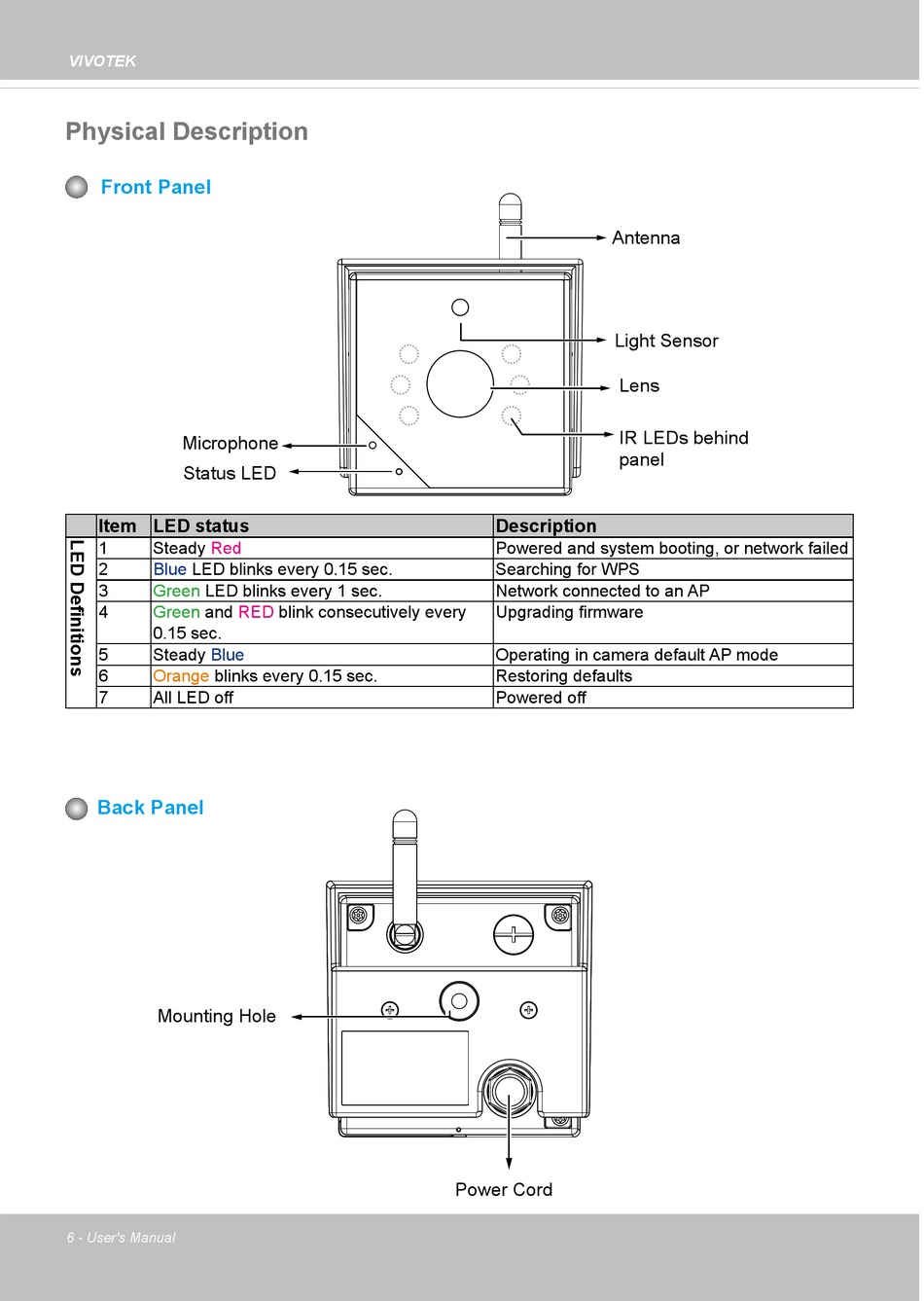

Physical Description

Front Panel
Microphone
Status LED
Item LED status
1 Steady Red
2 Blue LED blinks every 0�15 sec�
3 Green LED blinks every 1 sec�
4 Green and RED
0�15 sec�
5 Steady Blue
6 Orange blinks every 0�15 sec�
7 All LED off
Back Panel
Mounting Hole
6 - User's Manual
blink consecutively every
Antenna
Antenna
Light Sensor
Lens
IR LEDs behind
panel
Description
Powered and system booting, or network failed
Searching for WPS
Network connected to an AP
Upgrading firmware
Operating in camera default AP mode
Restoring defaults
Powered off
Power Cord
