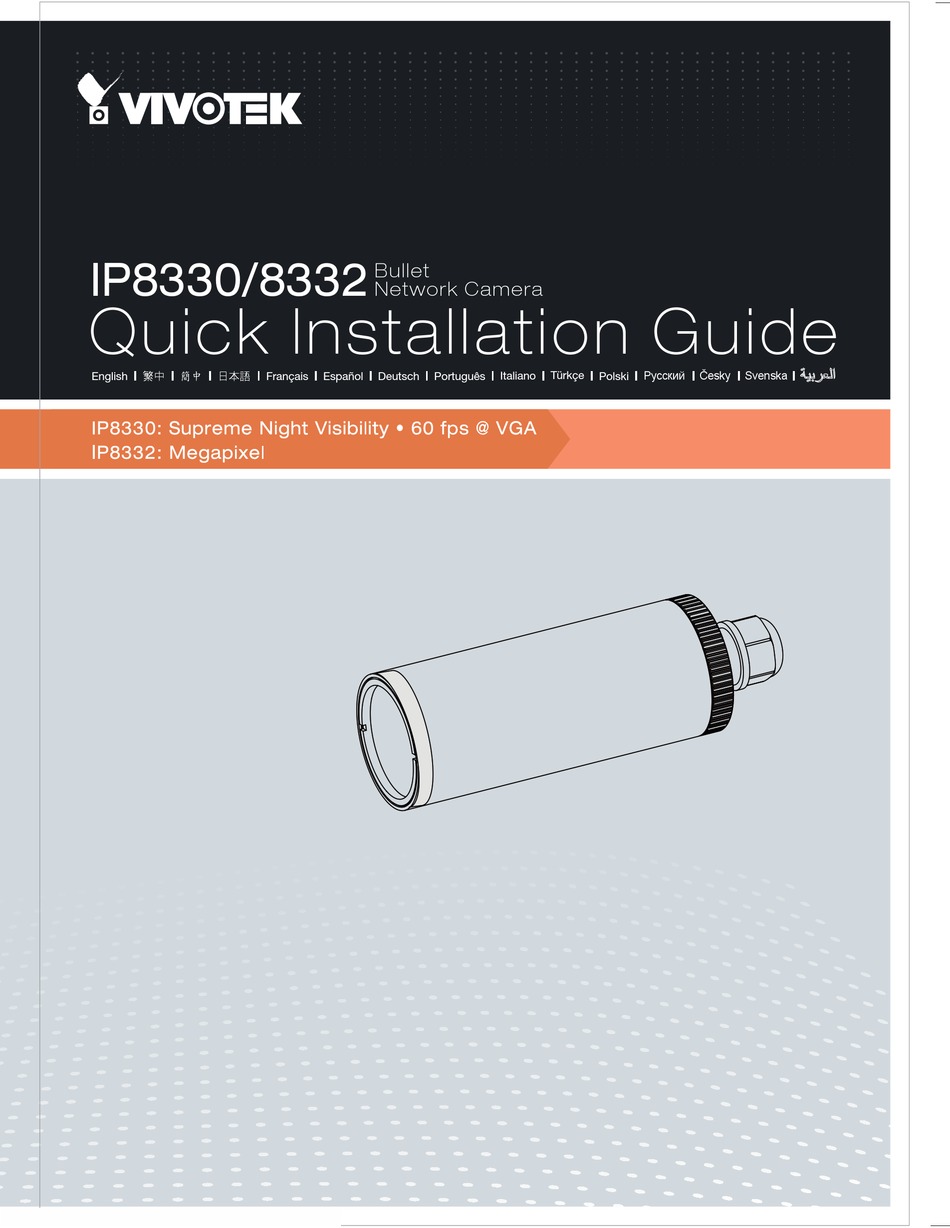

- Page 1 IP8330/8332 Bullet Network Camera Quick Installation Guide Türkçe Русский Česky Français Deutsch Italiano Polski Svenska English Español Português 繁中 簡中 日本語...
- Page 2 Warning Before Installation Power off the Network Camera as Refer to your user's manual for the soon as smoke or unusual odors are operating temperature. detected. Contact your distributor in the event of occurrence. Do not touch the Network Camera Do not place the Network Camera on during a lightning storm.
-
Page 3: Package Contents
Quick Installation Guide Software CD / Warranty Card IP8330/8332 Bullet Network Camera Quick Installation Guide English 繁中 簡中 日本語 Français Español Deutsch Português Italiano Türkçe Polski Русский Česky Svenska IP8330: Supreme Night Visibility • 60 fps @ VGA I IP8332: Megapixel EN-2... -
Page 4: Physical Description
Physical Description Front Panel IR LED Lens Light Sensor Inner View Reset Button MicroSD/SDHC Card Slot Connectors General I/O Terminal Block Ethernet 10/100 RJ45 Plug Power Cord Socket (black) EN-3... -
Page 5: Hardware Installation
Hardware Installation 1. Loose the waterproof connector, then remove the rubber. 2. Loose the back cover. 3. Tear down the aluminum foil vacuum bag and take out the silica gel. Attach the supplied silica gel to the inner side of the Network Camera. (Please replace the silica gel with a new one if you open the back cover after installation.) 4. -
Page 6: Network Deployment
Network Deployment General Connection (without PoE) 1. If you have external devices such as sensors and alarms, make the connection from general I/O terminal block. GND : Ground : Digital Input AC24V: 24V AC24V AC24V 2. Use the supplied RJ45 female/female AC24V: 24V coupler to connect the Network Camera to a switch. - Page 7 Power over Ethernet (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable. PoE Switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and...
-
Page 8: Assigning An Ip Address
“Next” button to continue the program. Installation Wizard 2 3. The program will search for all VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the bottom of your device to connect to the Network Camera via Internet Explorer. -
Page 9: Ready To Use
Ready to Use 1. Access the Network Camera from the LAN. 2. Retrieve live video through web browsers or recording software. 2010/03/12 14:53:02 For further setup, please refer to the user’s manual on the software CD. EN-8... - Page 10 VIVOTEK INC. VIVOTEK USA, INC. 6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C. 2050 Ringwood Avenue, San Jose, CA 95131 |T: +886-2-82455282| F: +886-2-82455532| E: sales@vivotek.com |T: 408-773-8686| F: 408-773-8298| E: salesusa@vivotek.com...
