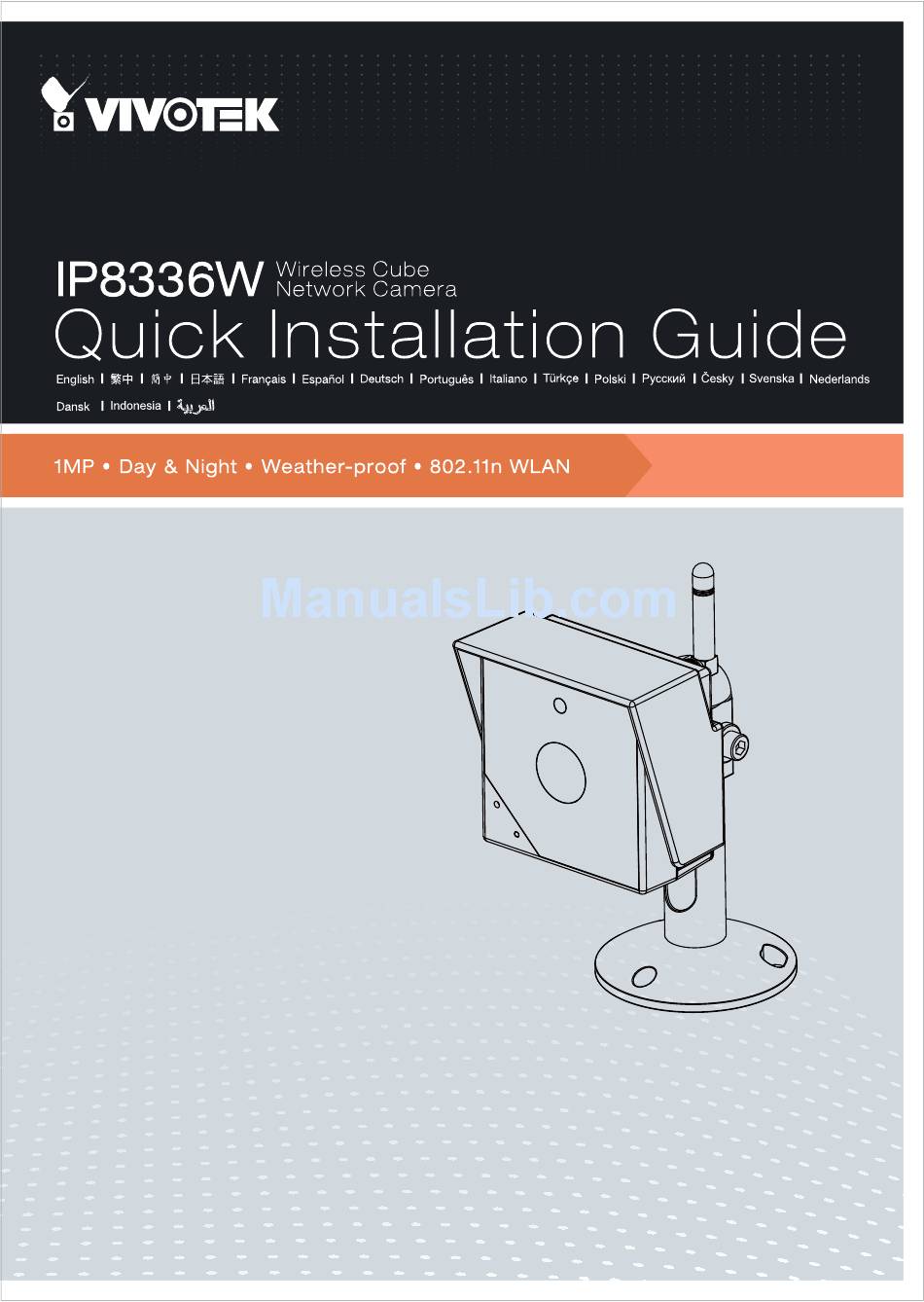

Vivotek IP8336W Quick Installation Manual

Vivotek IP8336W Quick Installation Manual

Wireless cube network camera 1mp
Hide thumbs Also See for IP8336W:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP8336W and is the answer not in the manual?

Questions and answers

Related Manuals for Vivotek IP8336W

Summary of Contents for Vivotek IP8336W

  • Page 2 Warning Before Installation Power off the Network Camera as Keep the Network Camera away soon as smoke or unusual odors are from water. If the Network Camera detected. becomes wet, power off immediately. Do not place the Network Camera Refer to your user’s manual for the around heat sources, such as a operating temperature.

  • Page 3: Package Contents

    Package Contents IP8336W Power Adaptor (+12V, 2A) Camera Stand Software CD Warranty Card Quick Installation Guide Screws Antenna EN - 2...

  • Page 4: Front Panel

    Physical Description Front Panel Antenna Light Sensor Lens IR LEDs behind panel Microphone Status LED Item LED status Description Steady Red Powered and system booting, or network failed Blue LED blinks every 0.15 sec. Searching for WPS Green LED blinks every 1 sec. Network connected to an AP Green and RED blink consecutively every 0.15 sec.

  • Page 5: Bottom View

    Bottom View Reset button MicroSD/SDHC WPS button Card Slot NOTE: An antenna comes with the camera. Install it by turning clockwise to attach to the connector. Network Deployment Power Connection 1. If you have external devices such as a sensors and alarm, make connections from the digital input connector.
  • Page 6 Wireless Connection #1: Using the WPS Button 1. Make sure your AP (Access Point) and Operating System support WPS (Wi-Fi Protected Setup) functions. WPS enables easy setup with compatible APs. 2. Use the included hex wrench to open the bottom cover. When powered on, the camera LED should light red for a minute, and then turn blue.
  • Page 7 VIVOTEK (1C:CC) Client mode 2. Right-click or double-click on the VIVOTEK (MAC addr) icon. The camera name is presented as: "VIVOTEK: (the last 4 digits of the camera's MAC address)." Open a browser session using the camera's default IP "192.168.1.1"...
  • Page 8 You can also discover the camera using the IW2 utility. Install the IW2 utlity from the included product CD. 3. Enter your wireless AP's SSID and security password to connect to an existing AP. You may also use the "Search your AP" button to locate an AP of your preferrence. Double- click on an AP to make the connection.
  • Page 9 4. Open the IW2 utility. The camera will be assigned with a new IP address. Double-click on it to start a web session. The camera LED will start blinking green by every second. NOTE: When you encounter configuration errors, you can press the WPS button for 5 seconds to restore network settings.
  • Page 10 When connected, manually enter the SSID and security code for access to another AP, or use the "Search your AP" function to search for nearby APs. VIVOTEK (1C:CC) The search may take several seconds. 3. Select and connect to a preferred AP.

  • Page 11: Hardware Installation

    4. Open the IW2 utility on a PC or laptop located in the same subnet of the camera. The camera will be assigned with a new IP address by the AP. Double-click on it to start a web session. Hardware Installation 1.
