720p hd wdr pro ip67 network camera
Hide thumbs Also See for IP8335H:

Advertisement

Quick Links

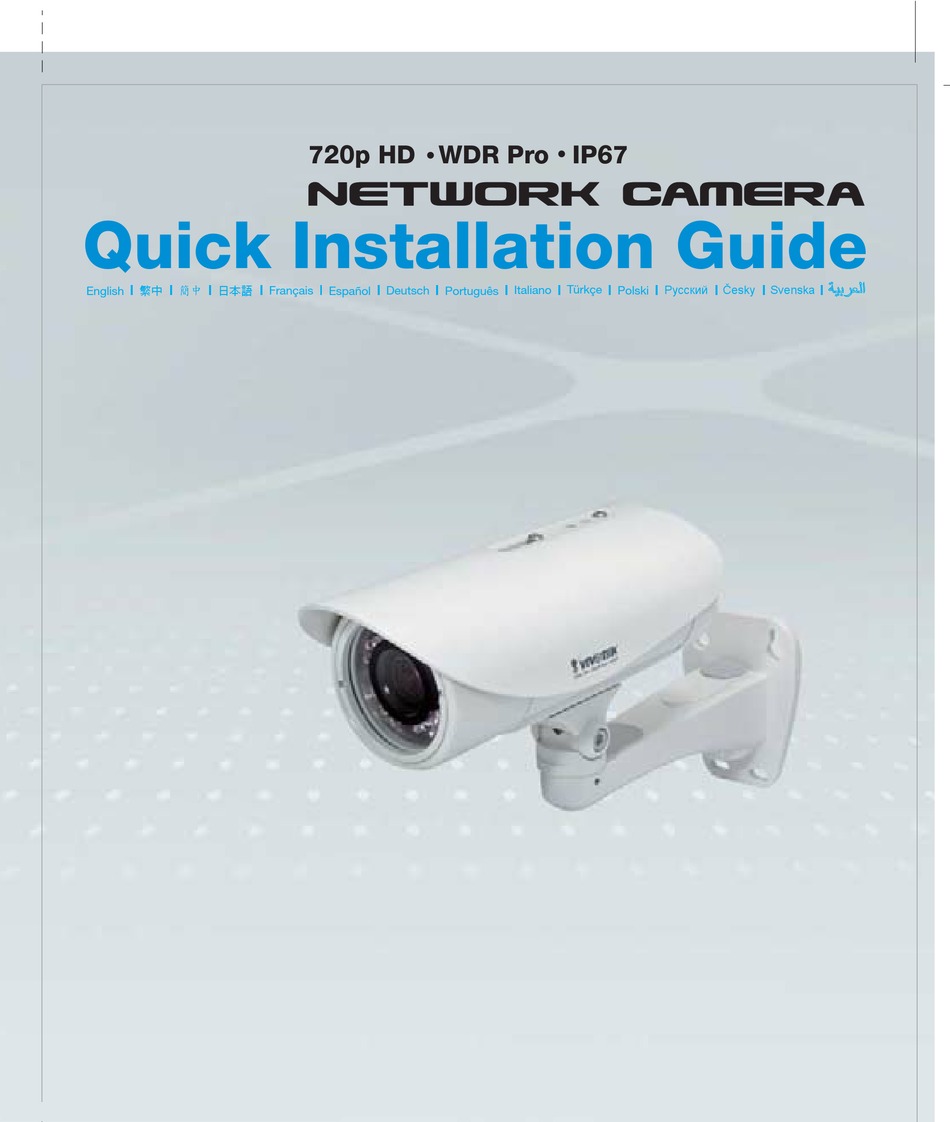

720p HD WDR Pro IP67

Quick Installation Guide

Deutsch
Italiano
Türkçe
English
Français
Español
Português
Polski
Русский
Česky
Svenska
繁中
簡中
日本語
IP8335H
This guide describes the basic functions of IP8335H. More
details can be found in the User Manual.
IP Sur veillance

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP8335H and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivotek IP8335H

  • Page 1: Quick Installation Guide

    720p HD WDR Pro IP67 Quick Installation Guide Deutsch Italiano Türkçe English Français Español Português Polski Русский Česky Svenska 繁中 簡中 日本語 IP8335H This guide describes the basic functions of IP8335H. More details can be found in the User Manual. IP Sur veillance...
  • Page 2 Warning Before Installation Power off the Network Camera as Refer to your user's manual for the soon as smoke or unusual odors are operating temperature. detected. Contact your distributor in the event of occurrence. Do not touch the Network Camera Do not place the Network Camera on during a lightning storm.
  • Page 3: Package Contents

    Package Contents IP8335H Alignment Sticker Sun Shield Wrench / RJ45 Female/Female Coupler / Double-sided Tape / Screws Power Adapter Wall Mount Bracket Waterproof Connector (for backup Moisture Absorber use) Quick Installation Guide / Software CD Warranty Card EN-2...
  • Page 4: Physical Description

    Physical Description Light Sensor Lens IR LED Focus Controller Reset Button Zoom Controller General I/O Terminal Block Ethernet 10/100 Micrso SD/SDHC RJ45 Plug Card Slot Power Cord Socket Alternate AC Power Source AC 24V + AC 24V - EN-3...
  • Page 5: Hardware Installation

    Hardware Installation 1. Attach the alignment sticker to the wall. Drill three holes into the wall. Then hammer the supplied plastic anchors into the holes and secure the plate with supplied screws. 2. Feed the cables through the front opening of the wall mount bracket. (If you want to use external devices such as sensors and alarms, please refer to the assembling steps on the next page.) 3.
  • Page 6: Waterproof Connector

    Waterproof Connector Components of the Waterproof Connector Rubber (A) Screw Nut (B) Seal (C) Seals (D) Housing (E) Sealing Nut (F) Pin Definitions The terminal block is accessible when the rear cover is opened. Micro SD Socket Ethernet Power Digital Input 1: DI1 Digital Input: - (Ground) RS485 + DO- *...
  • Page 7 Assembling Steps 1. Disassemble the components of the waterproof connector into part (A) ~ (F) as shown above. 2. Remove the rubber stopper from the bottom of the Network Camera and secure the rubber (A) and screw nut (B) tightly. 3.
  • Page 8: Network Deployment

    Network Deployment Power over Ethernet (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable. RJ45 Female/ Female Coupler PoE Switch...
  • Page 9: Assigning An Ip Address

    "Next" button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one on the product label to connect to the Network Camera via Internet Explorer.
  • Page 10: Ready To Use

    Ready to Use 1. Access the Network Camera from the LAN. 2. Retrieve live video through a web browser or recording software. For further setup, please refer to the user's manual on the software CD. 3. Unscrew the zoom controller to adjust the zoom factor.
  • Page 11: Installation Procedure

    5. Tighten the lens cover. 6. Replace the moisture absorber with a new one if you open the back cover during the installation procedure. NOTE: Please tear down the aluminum foil vacuum bag and take out the moisture absorber, then attach the moisture absorber with the supplied double-sided tape.
  • Page 12 P/N: 625015800G Ver.1.0 Copyright 2011 VIVOTEK INC. All right reserved. New Taipei City...
