CHARGING the BTH-300-KD LAPEL MICROPHONE
The PRYMEBLU BTH-300-KD lapel microphone has an internal Lithium Ion rechargeable battery pack
which must be charged prior to operation. A fully charged battery will provide approximately 10 hours
(or more) of operation before needing to be recharged. However, operating time can vary depending
on usage and the condition of the battery pack. Recharge the battery regularly.
To charge the PRYMEBLU BTH-300-KD lapel microphone:
1. Ensure the PRYMEBLU Lapel Microphone is turned o using the Power Button.
2. Plug the supplied wall charger into a standard 120 volt AC outlet.
3. Plug the charge cable into the AC wall charger and then into the charge jack on the side of the lapel
microphone. You will need to remove the protective rubber cover that is inserted into the charge jack.
(To prevent dust and moisture from damaging your lapel microphone, always ensure this cover is in
place when you are not charging the lapel mic.)
4. Once the charging process has begun, the LED indicator on the back of the PRYMEBLU Lapel
Microphone will show a continuous red light. When the battery is done charging, the LED light will
turn o .
5. Typical charge time is approximately 4 hours. Actual charge time will vary depending on several
factors including the battery's charge state, condition, and age.
6. Disconnect the charger from the lapel mic when charging is completed.
Charging Cautions:
- Use only the wall charger supplied by the
manufacturer. Do not use any other charger.
- Do not use a wall charger that appears
to be damaged. (Example: frayed wires,
melted plastic, etc.) Contact PRYME to
get a new manufacturer-approved
replacement charger.
- Do not tamper with or modify the
PRYMEBLU BTH-300-KD lapel microphone or charger.
- Always turn the power switch to the position
when charging the PRYMEBLU Lapel Microphone.
P-CBL-BT-USB charger cable and P-CHA-BT-USB
wall charger included with BTH-300-KD.
3

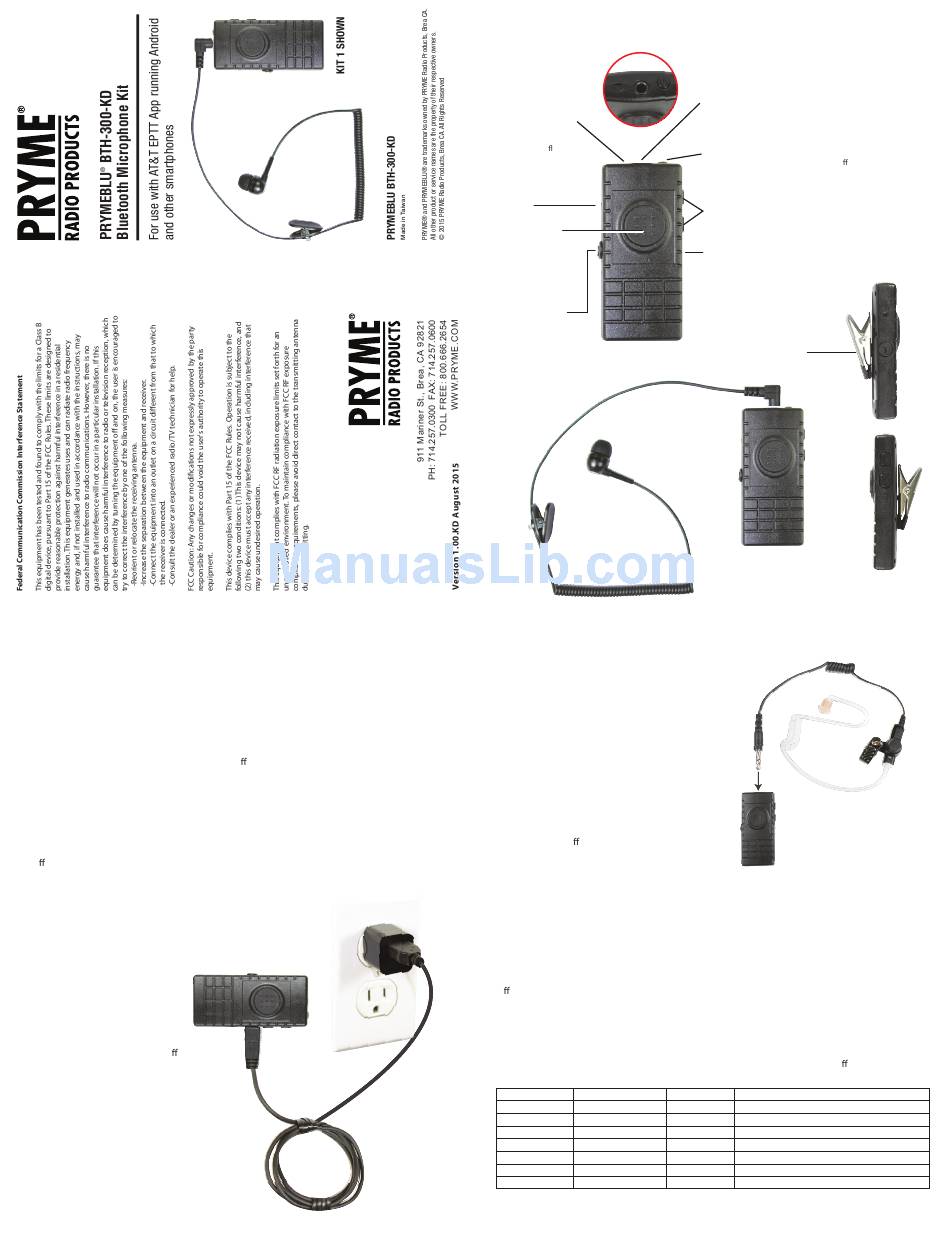

Controls and Connection
BUILT-IN MICROPHONE
When the BTH-300-KD is used
with a listen-only earphone,
TOP VIEW
this microphone picks up the
user's voice audio to send
over- the-air. When an
accessory containing a
microphone is used, the
internal microphone is muted.
STATUS LED
The status LED ashes
messages that let the
user know the current
status of the device.
For a complete list of
the LED messages, see
page 7.
PUSH-TO-TALK
BUTTON
This button is used
to activate
the push-to-talk
feature of the
AT&T EPTT app.
PHONE BUTTON
When the BTH-300-KD is
paired with a cellular
telephone, this button
can be used to manage
telephone functions
such as answering
or hanging up a call.
EARPHONE/AUDIO
ACCESSORY
PRYME EH-1189SC
shown. Other
earphones/ audio
accessories are
listed below.
CONNECTING AN AUDIO ACCESSORY TO THE BTH-300-KD LAPEL MICROPHONE
The PRYMEBLU BTH-300-KD lapel microphone has an internal
Lithium Ion rechargeable battery pack which must be charged
prior to operation. A fully charged battery will provide
approximately 10 hours (or more) of operation before
needing to be recharged. However, operating time can
vary depending on usage and the condition of the
battery pack. Recharge the battery regularly.
In order to be able to hear incoming signals
received by the two-way radio or cellular phone,
the PRYMEBLU BTH-300-KD lapel microphone must
be used with a wired audio accessory that includes
an earphone. A PRYME EH-1189SC ear bud-style
earphone is included with the lapel microphone kit.
However, many di erent optional wired audio
accessories are also available.
To connect an audio accessory to the BTH-300-KD lapel microphone:
1. Plug the audio accessory into the 3.5 mm audio jack located on the top of the PRYMEBLU
BTH-300-KD lapel microphone. Make sure that the connector on the audio accessory is pushed all the
way into the jack on the lapel microphone.
2. You can adjust the volume of received signals by using the Volume Up and Volume Down buttons on
the lapel microphone or by adjusting the volume setting on the radio or cellular telephone.
Optional Audio Accessories:
Although the BTH-300-KD KIT 1 includes a PRYME ear bud-style earphone, it is possible to use a
di erent audio accessory, if you wish. The 3.5 mm audio jack on the lapel mic will accept any mono or
stereo earphone with a 3.5 mm audio plug. You can also use any 3.5 mm 4-conductor (Apple iPhone
compatible) audio accessory that includes both an earphone and a microphone, such as Apple part
numbers ME186LL/A, or MD827LL/A (not included). If the audio accessory has a built-in microphone,
transmit audio will be taken from the accessory microphone.
PRYME makes a variety of listen-only earphones and accessory microphones in di erent styles that
will work with the BTH-300-KD:
KIT MODEL
BTH-300-KD KIT 1 E H-1189SC
BTH-300-KD KIT 2 EH-1399SC Recon™
BTH-300-KD KIT 3 EH-3099SC Bullet™
BTH-300-KD KIT 4 EH-GH99SC G-Hook™
BTH-300-KD KIT 5 SPM-499D Ranger™
BTH-300-KD KIT 6 SPM-1599 Gladiator™
BTH-300-KD KIT 7 SPM-899B Highway™
EARPHONE/ACCESSORY JACK
Any standard 3.5 mm mono or stereo listen-only earphone can
be plugged into this jack. Received calls will be heard over the
earphone. This jack can also be used with a 3.5 mm 4-conductor
(Apple iPhone compatible) audio accessory that contains both
an earphone and a microphone such as Apple part numbers
ME186LL/A, or MD827LL/A. (Not included.) When used with such
an accessory, received calls can be heard over the accessory
earphones and transmit audio will be taken from the accessory
microphone.
POWER BUTTON
Pressing this button for one second turns the PRYMEBLU
BTH-300-KD lapel microphone on or o . This button is also
used to place the lapel microphone in pairing mode so
that it can be connected wirelessly to a cellular telephone.
VOLUME UP/DOWN BUTTONS
These buttons can be used to set the volume level of the
earphone connected to the BTH-300-KD's Earphone/Accessory
Jack.
USB CHARGE JACK
This micro-USB jack is used to connect the supplied charge
cable to the BTH-300-KD in order to recharge the device's internal
lithium-ion battery pack.
CLOTHING CLIP
The alligator-type clip secures
the PRYMEBLU BTH-300-KD
lapel microphone to the
user's clothing during use.
The clip can be rotated to
allow the mic to be better
positioned.
2
TYPE STYLE
Listen-only Ear Bud Earphone
Listen-only Acoustic Tube Earphone
Listen-only Bullet Transducer Acoustic Tube Earphone
Listen-only G-hook Swivel Earphone
Mic+Earphone Boom Mic Headset with D-ring Earphone
Mic+Earphone Throat Mic Headset with Acoustic Tube Earphone
Mic+Earphone Motorcycle Helmet Boom Mic Kit
