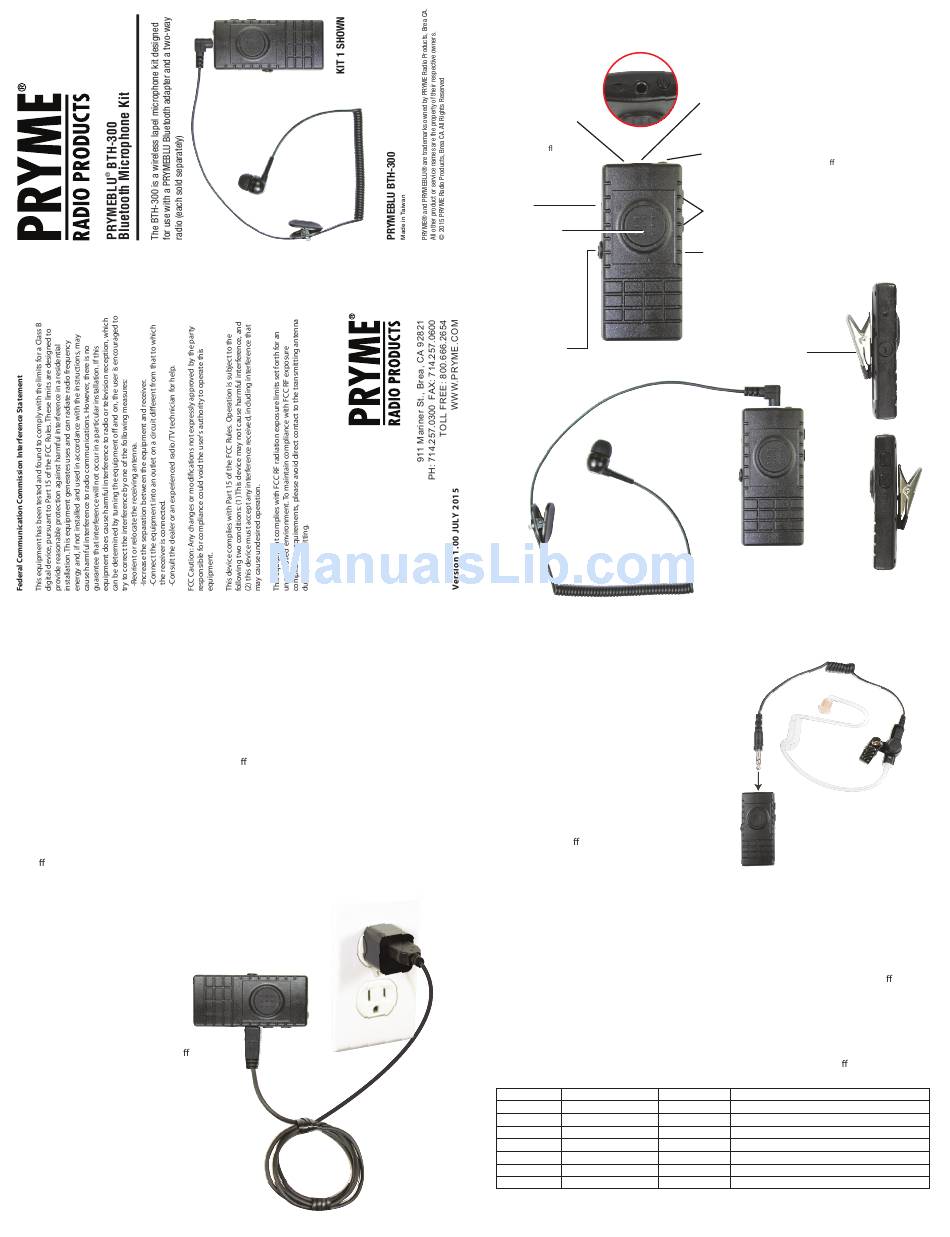

PRYME Radio Product PRYMEBLU BTH-300 Manual

CHARGING the BTH-300 LAPEL MICROPHONE
The PRYMEBLU BTH-300 lapel microphone has an internal Lithium Ion rechargeable battery pack which
must be charged prior to operation. A fully charged battery will provide approximately 10 hours (or
more) of operation before needing to be recharged. However, operating time can vary depending on
usage and the condition of the battery pack. Recharge the battery regularly.
To charge the PRYMEBLU BTH-300 lapel microphone:
1. Ensure the PRYMEBLU Lapel Microphone is turned o using the Power Button.
2. Plug the supplied wall charger into a standard 120 volt AC outlet.
3. Plug the charge cable into the AC wall charger and then into the charge jack on the side of the lapel
microphone. You will need to remove the protective rubber cover that is inserted into the charge jack.
(To prevent dust and moisture from damaging your lapel microphone, always ensure this cover is in
place when you are not charging the lapel mic.)
4. Once the charging process has begun, the LED indicator on the back of the PRYMEBLU Lapel
Microphone will show a continuous red light. When the battery is done charging, the LED light will
turn o .
5. Typical charge time is approximately 4 hours. Actual charge time will vary depending on several
factors including the battery's charge state, condition, and age.
6. Disconnect the charger from the lapel mic when charging is completed.
Charging Cautions:
- Use only the wall charger supplied by the
manufacturer. Do not use any other charger.
- Do not use a wall charger that appears
to be damaged. (Example: frayed wires,
melted plastic, etc.) Contact PRYME to
get a new manufacturer-approved
replacement charger.
- Do not tamper with or modify the
PRYMEBLU BTH-300 lapel microphone or charger.
- Always turn the power switch to the o¬ position
when charging the PRYMEBLU Lapel Microphone.
P-CBL-BT-USB charger cable and P-CHA-BT-USB
wall charger included with BTH-300.
3
Controls and Connection
BUILT-IN MICROPHONE
When the BTH-300 is used
with a listen-only earphone,
TOP VIEW
this microphone picks up the
user's voice audio to send
over- the-air. When an
accessory containing a
microphone is used, the
internal microphone is muted.
STATUS LED
The status LED ashes
messages that let the
user know the current
status of the device.
For a complete list of
the LED messages, see
page 7.
PUSH-TO-TALK
BUTTON
When the PRYMEBLU
BTH-300 lapel
microphone is paired
with a PRYMEBLU
Bluetooth adapter,
holding this button
down activates the
Push-to-Talk feature
of the two-way radio.
PHONE BUTTON
When the BTH-300 is
paired with a cellular
telephone, this button
can be used to manage
telephone functions
EARPHONE/AUDIO
such as answering
ACCESSORY
or hanging up a call.
PRYME EH-1189SC
shown. Other
earphones/ audio
accessories are
listed below.
CONNECTING AN AUDIO ACCESSORY TO THE BTH-300 LAPEL MICROPHONE
The PRYMEBLU BTH-300 lapel microphone has an internal
Lithium Ion rechargeable battery pack which must be charged
prior to operation. A fully charged battery will provide
approximately 10 hours (or more) of operation before
needing to be recharged. However, operating time can
vary depending on usage and the condition of the
battery pack. Recharge the battery regularly.
In order to be able to hear incoming signals
received by the two-way radio or cellular phone,
the PRYMEBLU BTH-300 lapel microphone must
be used with a wired audio accessory that includes
an earphone. A PRYME EH-1189SC ear bud-style
earphone is included with the lapel microphone kit.
However, many di erent optional wired audio
accessories are also available.
To connect an audio accessory to the BTH-300 lapel microphone:
1. Plug the audio accessory into the 3.5 mm audio jack located on the top of the PRYMEBLU BTH-300
lapel microphone. Make sure that the connector on the audio accessory is pushed all the way into the
jack on the lapel microphone.
2. You can adjust the volume of received signals by using the Volume Up and Volume Down buttons on
the lapel microphone or by adjusting the volume setting on the radio or cellular telephone.
Optional Audio Accessories:
Although the BTH-300 KIT 1 includes a PRYME ear bud-style earphone, it is possible to use a di erent
audio accessory, if you wish. The 3.5 mm audio jack on the lapel mic will accept any mono or stereo
earphone with a 3.5 mm audio plug. You can also use any 3.5 mm 4-conductor (Apple iPhone
compatible) audio accessory that includes both an earphone and a microphone, such as Apple part
numbers ME186LL/A, or MD827LL/A (not included). If the audio accessory has a built-in microphone,
transmit audio will be taken from the accessory microphone.
PRYME makes a variety of listen-only earphones and accessory microphones in di erent styles that
will work with the BTH-300:
KIT MODEL TYPE
BTH-300 KIT 1 EH-1189SC Listen-only
BTH-300 KIT 2 EH-1399SC Recon™ Listen-only
BTH-300 KIT 3 EH-3099SC Bullet™ Listen-only
BTH-300 KIT 4 EH-GH99SC G-Hook™ Listen-only
BTH-300 KIT 5 SPM-499D Ranger™ Mic+Earphone
BTH-300 KIT 6 SPM-1599 Gladiator™ Mic+Earphone
BTH-300 KIT 7 SPM-899B Highway™ Mic+Earphone
EARPHONE/ACCESSORY JACK
Any standard 3.5 mm mono or stereo listen-only earphone can
be plugged into this jack. Received calls will be heard over the
earphone. This jack can also be used with a 3.5 mm 4-conductor
(Apple iPhone compatible) audio accessory that contains both
an earphone and a microphone such as Apple part numbers
ME186LL/A, or MD827LL/A. (Not included.) When used with such
an accessory, received calls can be heard over the accessory
earphones and transmit audio will be taken from the accessory
microphone.
POWER BUTTON
Pressing this button for one second turns the PRYMEBLU
BTH-300 lapel microphone on or o . This button is also
used to place the lapel microphone in pairing mode so
that it can be connected wirelessly to a PRYMEBLU
adapter or a cellular telephone.
VOLUME UP/DOWN BUTTONS
These buttons can be used to set the volume level of the
earphone connected to the BTH-300's Earphone/Accessory Jack.
USB CHARGE JACK
This micro-USB jack is used to connect the supplied charge
cable to the BTH-300 in order to recharge the device's internal
lithium-ion battery pack.
CLOTHING CLIP
The alligator-type clip secures
the PRYMEBLU BTH-300 lapel
microphone to the user's
clothing during use. The clip
can be rotated to allow the
mic to be better positioned.
2
STYLE
Ear Bud Earphone
Acoustic Tube Earphone
Bullet Transducer Acoustic Tube Earphone
G-hook Swivel Earphone
Boom Mic Headset with D-ring Earphone
Throat Mic Headset with Acoustic Tube Earphone
Motorcycle Helmet Boom Mic Kit
