Charging the Speaker Microphone
The BTH-SPM100-ZD speaker microphone has an internal Lithium Ion rechargeable battery pack which
must be charged prior to operation, and must be recharged regularly. A fully charged battery will
provide approximately 5 hours (or more) of continuous operation before needing to be recharged.
However, operating time can vary depending on usage and the condition of the battery pack.
Recharge the battery regularly.
To charge the speaker microphone
1. Ensure the device is turned o using the multifunction button.
2. Plug the charge cable into any powered USB outlet, such as the included AC wall charger, and then
into the charge jack on the bottom of the speaker microphone. You will need to remove the protective
rubber cover that is inserted into the charge jack. (To prevent dust and moisture from damaging your
speaker microphone, always ensure this cover is in place when you are not charging.)
3. Once the charging process has begun, the LED indicator on the bottom of the speaker microphone
will show a constant red light.
4. Typical charge time is approximately three hours. Actual charge time will vary depending on several
factors including the battery's charge state, condition, and age.
5. Disconnect the charger from the adapter when charging is completed.
Charging Cautions:
- Do not use a wall charger or charge cable that appears to be damaged. (Example: frayed wires,
melted plastic, etc.) Contact PRYME to get a new manufacturer-approved replacement charger.
- Do not tamper with or modify the speaker microphone or charger.
- Always turn the speaker microphone o when charging.
3

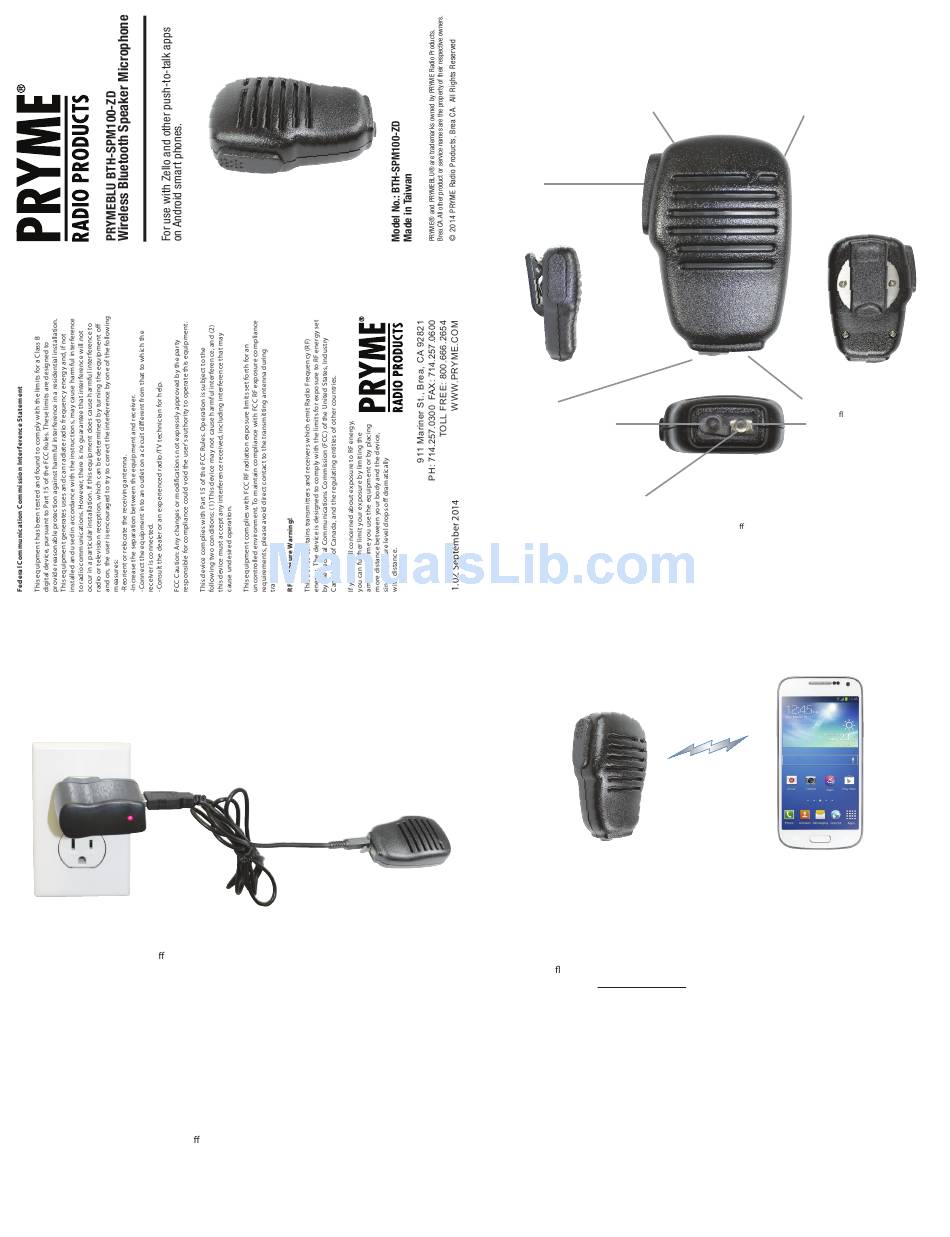

Controls and Connection
Front Firing Speaker
Received calls are heard over this speaker.
The volume level is controlled using the
volume controls on the phone.
PTT Button
This button is used to activate the
push-to-talk feature of the Zello app.
It can also be used to answer or hang
up incoming telephone calls.
Earphone / Charge Jack
This jack is used to connect the
supplied charge cable to the
speaker microphone. It can also
be used to connect a wired listen-only
earphone for enhanced privacy.
Multifunction Button
Holding down this button for one second
will turn the speaker microphone on and o .
This button can also be used to place the speaker
microphone into pairing mode so that it can be
connected wirelessly to a cellular phone
Pairing with a Smartphone
The BTH-SPM100-ZD speaker microphone is designed to work with smartphones running the Android
operating system. Prior to normal operation, the phone and speaker microphone must be paired together
using the following process:
1. Activate the pairing mode on the speaker microphone by holding down the multifunction button until
the status LED ashes BLUE-RED-BLUE-RED continuously in sequence.
2. On your phone, go to Settings > Bluetooth. Move the Bluetooth slider to turn the phone's Bluetooth
radio on.
3. Select "Search for Devices" from the phone's Bluetooth menu. The phone will scan for nearby Bluetooth
devices and a list showing the names of nearby Bluetooth devices will be shown on the screen.
4. Choose "BTH-SPM100-ZD" from the list.
5. Keep the phone and speaker mic near each other and wait a few seconds. The devices will pair to each other.
Reconnecting a Previously Paired Speaker Microphone and Phone
Once the speaker microphone and phone have been successfully paired together, both devices will
remember that connection. They will reestablish their link whenever the speaker microphone and phone
are both powered on and in within range of each other, as long as the Bluetooth radio is enabled in the
phone. Re-establishing this connection can take 10-60 seconds.
In the event that the phone and speaker microphone do not automatically reestablish their link, simply
press the multifunction button on the BTH-SPM100-ZD to restore the connection.
Microphone:
This microphone picks up
the user's voice audio
Clothing Clip
The alligator-type clip secures
the speaker ,icrophone
to the user's clothing during use.
The clip can be rotated to allow the
microphone to be better positioned.
Status LED
The LED ashes messages that
let the user know the current
status of the speaker microphone.
