USING THE GPSMIC: Operation of the PRYME GPSMIC is simple and transparent.
Turn the two-way radio that the GPSMIC is attached to on, select the operating channel, and set the
volume to a comfortable listening level.
To transmit, hold the GPSMIC approximately six inches in front of your mouth, hold down the Push-To-Talk
key, and speak slowly and clearly. When you are done speaking, release the PTT key.
Received signals will be head over the GPSMIC's large front-firing speaker (unless you are using an
optional external speaker or earphone).
• Because location messages are sent automatically, the user needs only to operate the GPSMIC as they
would any other remote speaker microphone.
EMERGENCY FUNCTION: The GPSMIC has a built-in emergency function that can be activated in the
event of a crisis. press and hold the orange panic button on the GPSMIC for three seconds. By default,
this function will cause the GPSMIC to transmit a new location message automatically every minute.
To cancel the emergency and return to normal operation again press and hold the emergency button for
three seconds.
LED STATUS INDICATIONS: The LED indicator on the side of the GPSMIC will show various message
states that help you know the status of the unit. These messages vary depending on what power source
the GPSMIC is using. Refer to the following table:
--------------------------------- GPSMIC Power Source ---------------------------------
Internal Battery AC Charging Adapter
LED Condition
(portable operation)
GREEN for 3 The two-way radio attached to the GPSMIC was just turned on, the char ging
seconds, then off cable was disconnected, a charged battery was installed, or an external power
Blinks GREEN once N/A Charging is in progress
every 10 seconds
Continuous GREEN N/A The battery is done
RED for 3 seconds, The attached two-way radio was turned off or
then off the GPSMIC was disconnected from the radio.
Blinks RED once
The battery pack power
every 10 seconds level is low
Continuous RED Internal Fault
Continuous AMBER The GPSMIC has a valid satellite location fix.
(This will only appear if the GPS Lock LED function is enabled during initial programming of the unit.
The LED will revert to normal operation when the GPSMIC does not have a valid GPS fix.
By default, this option is disabled.)
DISCLAIMER: The information contained in this help file is believed to be correct as of the date of
publication. However, PRYME follows a policy of continuous development, so the information is subject
to change without notice, and does not represent a commitment on the part of PRYME Radio Products.
If you have questions, please contact PRYME Technical Support or your local PRYME dealer.
GPS ACCURACY NOTICE: GPS location data is acquired from government satellites. Accuracy of this
data is subject to obstructions, reflections, interference, and government interventions, and is not under
PRYME's control. Users should avoid placing absolute reliance on coordinates obtained from any GPS
receiving device.
© 2009 PRYME Radio Products, Brea, CA. All rights are reserved.
4
GPSMIC USER'S GUIDE
External 12 VDC
(charging) (vehicle or base operation)
source was connected.
N/A
GPSMIC is operational
charging
N/A N/A
Charging Error Internal Fault

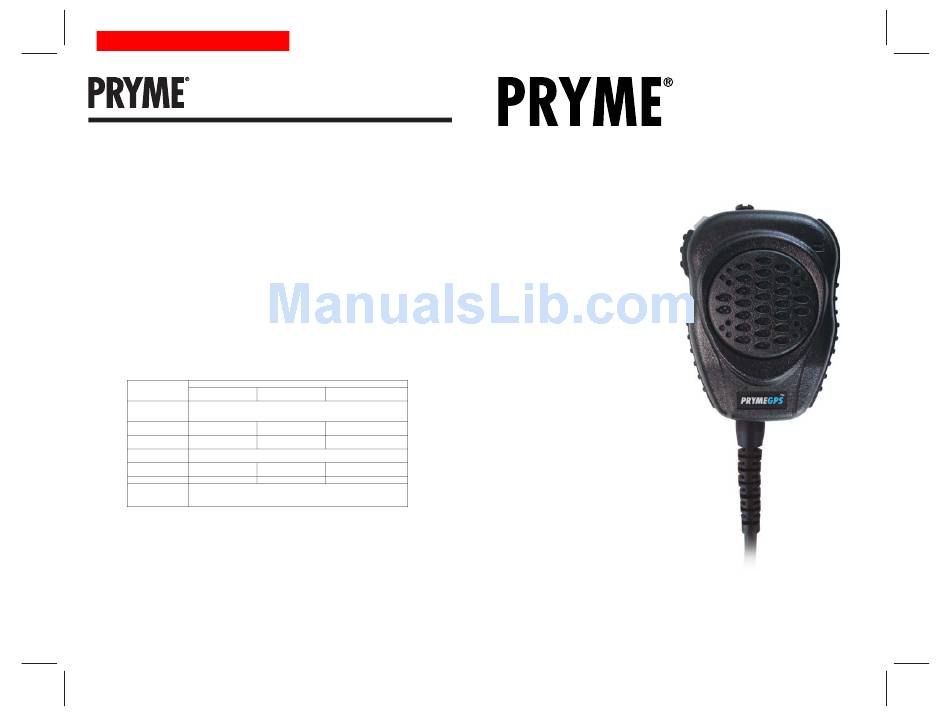

GPS-4100P Series
PORTABLE BASED-CONFIGURED
GPSMIC User's Guide ™

PACKAGE CONTENTS

• PRYME Mobile GPSMIC
(GPS-41xxP) for portable radios
• PRYME Battery Pack (GPS-BATT-LI)
• PRYME Wall Charger (GPS-USBC)
• PRYME Programming &
Computer Interface Cable (GPS-PUSB)
• Quickstart Guide & User Guide
GPS Microphone for
Handheld, Portable Radios
version 2.1 May 2010
