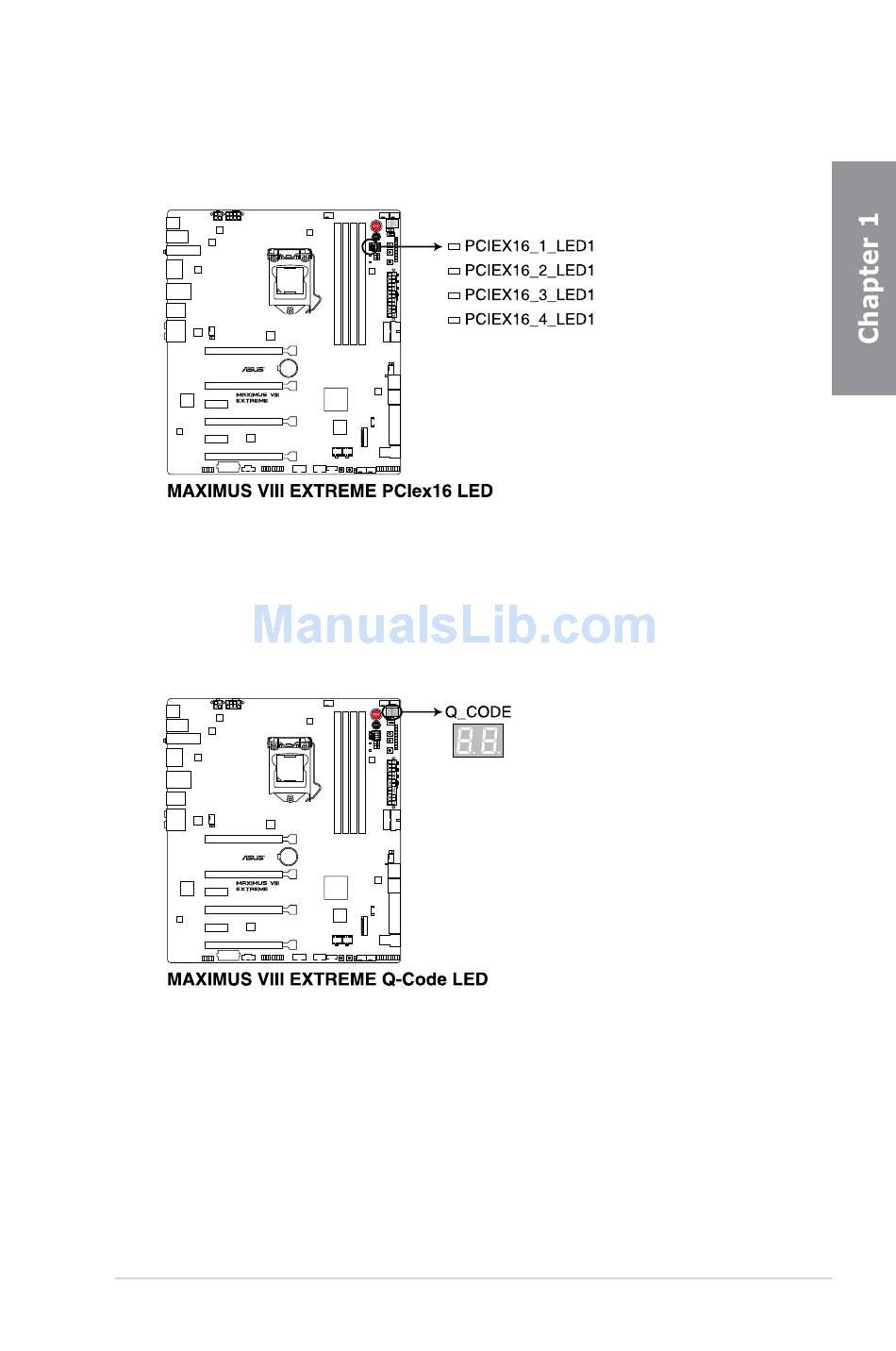

PCIex16 lane LED indicator (PCIEX16_1_LED1; PCIEX16_2_LED1; PCIEX16_3_
LED1; PCIEX16_4_LED1)
Indicates the PCIE lane used.
6.
Q-Code LED (Q_CODE)
The Q-Code LED design provides you with a 2-digit error code that displays the system
status. Refer to the Q-Code table on the following page for details.
