CONNECTIONS

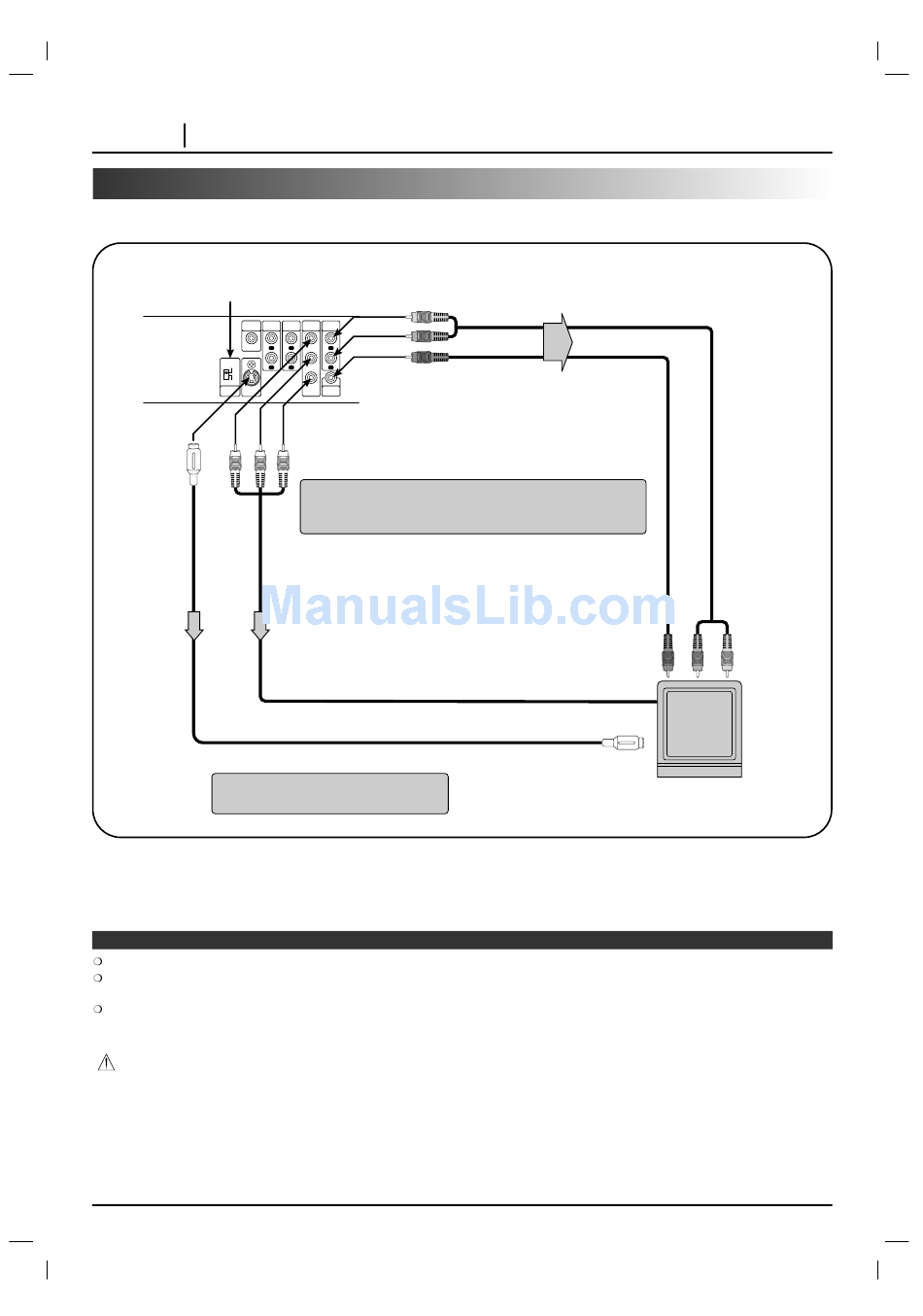

Connecting to a TV

Connect the DVD player to your TV.
VIDEO OUTPUT
SELECT switch
DIGITAL REMOTE
OUT CONTROL
COAXIAL
S-VIDEO
COMPONENT
VIDEO
S-VIDEO
OUTPUT
OUT
To S-VIDEO OUT
If the TV has an S-video input, connect
the DVD player with the S-video cable.
Notes
Refer to the owner's manual of your TV as well.
Before you connect the DVD player to your TV, be sure to turn off the power and unplug both units from the wall outlet before
making any connections.
Connect the DVD player to your TV directly. If you connect the DVD player to a VCR, the playback picture will be distorted
because DVD video discs are copy protected.
Warning
Do not set the Digital Audio Output of this DVD player to "Dolby Digital" unless you are connecting the DIGITAL OUT jack of this
DVD player to an AV decoder that has the Dolby Digital decoding function. High volume sound may damage your hearing as well
as the speakers (Refer to "Selecting Digital Audio Output" on page 39).
AUDIO AUDIO
COMPONENT
OUT2 VIDEO OUT OUT1
IN L L
C
B
OUT R R
C
R
To AUDIO OUT (L/R)/VIDEO OUT
VIDEO
Y
OUT
To COMPONENT
VIDEO OUT
When using COMPONENT VIDEO OUT jack, set the VIDEO
OUTPUT switch to COMPONENT or when using S-VIDEO
OUT jack, set the VIDEO OUTPUT switch to S-VIDEO.
Video cable (Y, C , C ) (not supplied)
B R
S-video cable (not supplied)
Audio/Video cable (supplied)
To video input
To S-video input
TV or monitor with
audio/video inputs
To audio inputs
