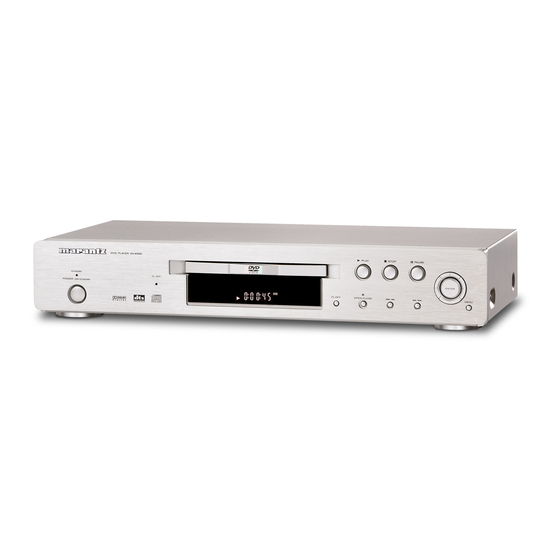

Marantz DV4500 Service Manual
Hide thumbs Also See for DV4500:

Advertisement

Service
Manual
STANDBY
POWER ON / STANDBY
SECTION
TECHNICAL SPECIFICATIONS .............................................................................................. 1-1-1
SERVICE HINTS AND TOOLS ................................................................................................ 1-2-1
WARNING AND LASER SAFETY INSTRUCTIONS ................................................................ 1-2-2
LASER BEAM SAFETY PRECAUTIONS ................................................................................ 1-2-3
IMPORTANT SAFETY PRECAUTIONS .................................................................................. 1-3-1
STANDARD NOTES FOR SERVICING ................................................................................... 1-4-1
CABINET DISASSEMBLY INSTRUCTIONS ............................................................................ 1-5-1
TROUBLESHOOTING ............................................................................................................. 1-6-1
BLOCK DIAGRAMS ................................................................................................................. 1-7-1
SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS .......................................................... 1-8-1
WAVEFORMS .......................................................................................................................... 1-9-1
WIRING DIAGRAMS .............................................................................................................. 1-10-1
FIRMWARE RENEWAL MODE ............................................................................................. 1-11-1
IC PIN FUNCTION DESCRIPTIONS ..................................................................................... 1-12-1
LEAD IDENTIFICATIONS ...................................................................................................... 1-13-1
EXPLODED VIEWS ............................................................................................................... 1-14-1
PARTS LIST ........................................................................................................................... 1-15-1
Please use this service manual with referring to the user guide (D.F.U) without fail.
DVD PLAYER DV4500
FL OFF

TABLE OF CONTENTS

DV4500
DV4500 /
PLAY
STOP
PAUSE
P.SCAN
DVD
FL OFF
OPEN/CLOSE
VCD
N1B/N1S
DVD Player
ENTER
MENU
PAGE
Part no. 90M12BW855010
First Issue 2004.05
ecm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV4500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Marantz DV4500

  • Page 1: Table Of Contents

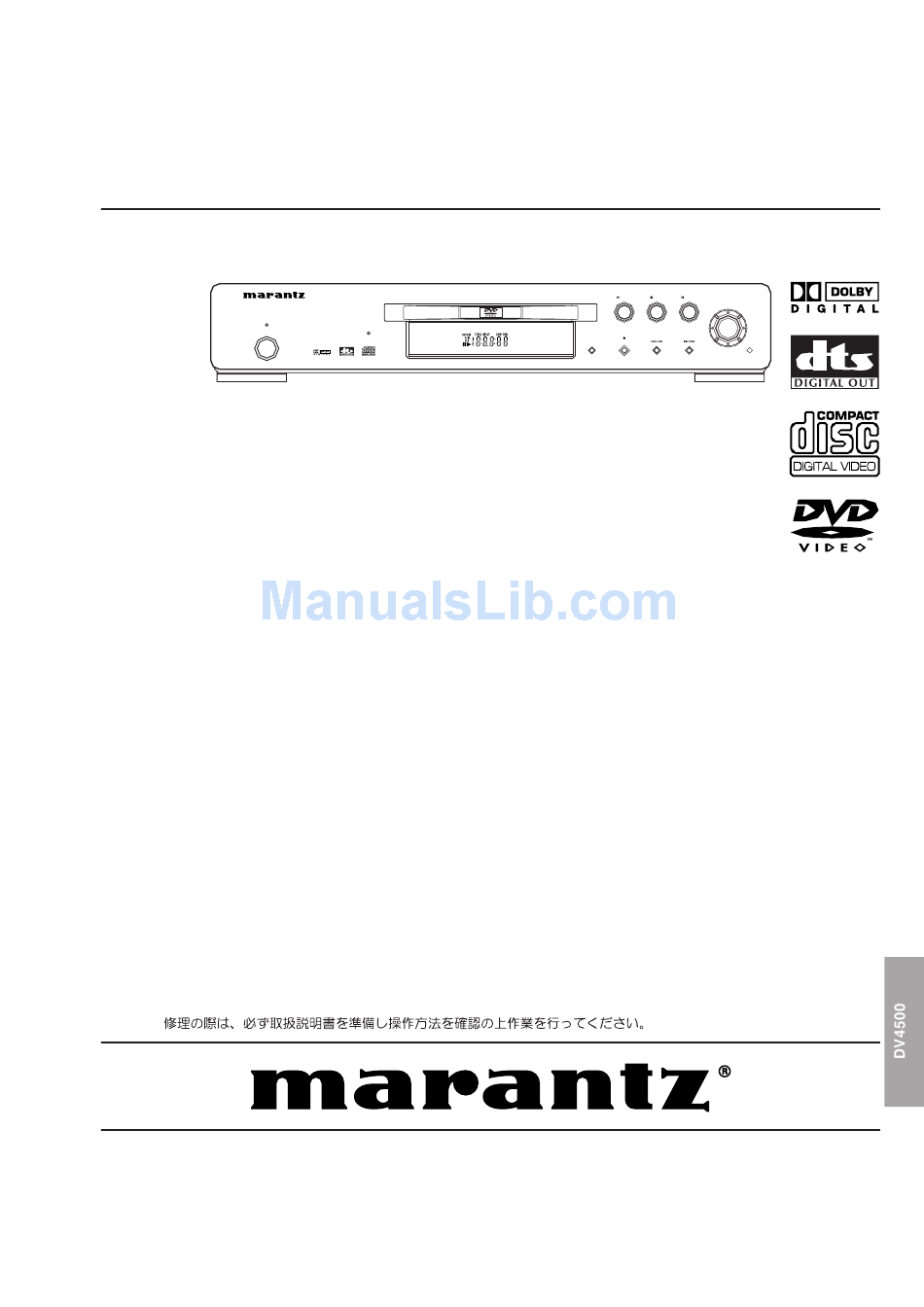

    Service DV4500 / N1B/N1S Manual DVD Player DVD PLAYER DV4500 PLAY STOP PAUSE STANDBY FL OFF ENTER POWER ON / STANDBY P.SCAN FL OFF OPEN/CLOSE MENU TABLE OF CONTENTS SECTION PAGE TECHNICAL SPECIFICATIONS ....................1-1-1 SERVICE HINTS AND TOOLS ....................1-2-1 WARNING AND LASER SAFETY INSTRUCTIONS ..............
  • Page 2 MARANTZ Parts for your equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
  • Page 3: Technical Specifications

    TECHNICAL SPECIFICATIONS SIGNAL SYSTEM PAL color APPLICABLE DISCS (1) DVD-Video Discs 1-layer 12cm single-sided discs, 2-layer 12cm single-sided discs, 2-layer 12cm double-sided discs (1 layer per side) Contacts, signal levels and impedances 1-layer 8cm single-sided discs, 2-layer 8cm single-sided discs, 2-layer 8cm double-sided discs (1 layer per side) Contact 1 (2) DVD-R/DVD-RW Audio Output (Right):...
  • Page 4: Playable Discs

    NOTE: Playable Discs Only the sound recorded on the normal CD layer can be The following discs can be played back on this delivered. The sound recorded on the high density Super Audio CD DVD player. layer cannot be delivered. Usable Recorded Mark (logo)
  • Page 5: Service Hints And Tools

    SERVICE HINTS AND TOOLS SERVICE HINTS SERVICE TOOLS Audio signals disc 4822 397 30184 Disc without errors (SBC444)+ Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245 Disc (65 min 1kHz) without no pause 4822 397 30155 Max.
  • Page 6: Warning And Laser Safety Instructions

    WARNING AND LASER SAFETY INSTRUCTIONS WARNING WAARSCHUWING All ICs and many other semi-conductors are Alle IC’s en vele andere halfgeleiders zijn susceptible to electrostatic discharges (ESD). gevoelig voor elektrostatische ontladingen Careless handling during repair can reduce (ESD). life drastically. Onzorgvuldig behandelen tijdens reparatie When repairing, make sure that you are kan de levensduur drastisch doen connected with the same potential as the...
  • Page 7: Laser Beam Safety Precautions

    LASER BEAM SAFETY PRECAUTIONS This DVD player uses a pickup that emits a laser beam. Do not look directly at the laser beam coming from the pickup or allow it to strike against your skin. The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 30cm away from the pickup lens when the diode is turned on.
  • Page 8: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS Product Safety Notice J. Be careful that foreign objects (screws, solder droplets, etc.) do not remain inside the set. Some electrical and mechanical parts have special K. Crimp type wire connector safety-related characteristics which are often not evi- The power transformer uses crimp type connectors dent from visual inspection, nor can the protection they which connect the power cord and the primary side...
  • Page 9: Safety Check After Servicing

    Safety Check after Servicing Examine the area surrounding the repaired location for Chassis or Secondary Conductor damage or deterioration. Observe that screws, parts, and wires have been returned to their original posi- Primary Circuit Terminals tions. Afterwards, do the following tests and confirm the specified values to verify compliance with safety standards.
  • Page 10: Standard Notes For Servicing

    STANDARD NOTES FOR SERVICING Circuit Board Indications Pb (Lead) Free Solder When soldering, be sure to use the Pb free solder. 1. The output pin of the 3 pin Regulator ICs is indi- cated as shown. How to Remove / Install Flat Pack-IC Top View Bottom View 1.
  • Page 11 3. The flat pack-IC on the CBA is affixed with glue, so With Soldering Iron: be careful not to break or damage the foil of each (1) Using desoldering braid, remove the solder from all pin or the solder lands under the IC when removing pins of the flat pack-IC.
  • Page 12 (4) Bottom of the flat pack-IC is fixed with glue to the 2. Installation CBA; when removing entire flat pack-IC, first apply (1) Using desoldering braid, remove the solder from soldering iron to center of the flat pack-IC and heat the foil of each pin of the flat pack-IC on the CBA so up.
  • Page 13 Instructions for Handling Semi-conductors Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electro- static charge during unpacking or repair work. 1. Ground for Human Body Be sure to wear a grounding band (1MΩ) that is prop- erly grounded to remove any static electricity that may be charged on the body.
  • Page 14: Cabinet Disassembly Instructions

    CABINET DISASSEMBLY INSTRUCTIONS 1. Disassembly Flowchart REMOVAL This flowchart indicates the disassembly steps to gain REMOVE/*UNHOOK/ LOC. PART Fig. access to item(s) to be serviced. When reassembling, UNLOCK/RELEASE/ Note follow the steps in reverse order. Bend, route, and UNPLUG/DESOLDER dress the cables as they were originally. Stopper [12] D8 ----------...
  • Page 15 CAUTION 2: Electrostatic breakdown of the laser diode in the optical system block may occur as a potential difference caused by electrostatic charge (S-2) [3] Function CBA accumulated on cloth, human body etc, during unpacking or repair work. (S-2) To avoid damage of pickup follow next procedures. 2-1.
  • Page 16 (S-7) (S-5B) (S-5A) (S-8) [8] LED CBA CN201 CN601 CN2082 CN301 CN401 [6] DVD Main CBA Unit [9] AV CBA Fig. D7 Short the three short lands by soldering. (Either of two places.) (S-9) [11] Power (S-9) PCB Holder (S-10) [10] Loader Base Connector...
  • Page 17 HOW TO EJECT MANUALLY 1. Remove the Top Cover. 2. Rotate the roulette in the direction of the arrow as shown below. View for A Rotate this roulette in the direction of the arrow 1-5-4 E59M2DC...
  • Page 18: Troubleshooting

    TROUBLESHOOTING FLOW CHART NO.1 The power cannot be turned on. Is the fuse normal? See FLOW CHART No.2 <The fuse blows out.> Is normal state restored when once unplugged Check if there is any leak or short-circuiting on the power cord is plugged again after several seconds? primary circuit component, and service it if defective.
  • Page 19 FLOW CHART NO.6 P-ON+11V (EV+11V) is not outputted. Check D1030, D1048, C1035, C1048, L1009 and Is 11V voltage supplied to the emitter of Q1002? the periphery circuit, and service it if defective. Check Q1016 and PWRCON line and service it if Is the voltage of base on Q1002 lower than the defective.
  • Page 20 FLOW CHART NO.11 The fluorescent display tube does not light up. Is 3.3V voltage supplied to Pins(6,24) of IC2001? Check the EV+3.3V line and service it if defective. Is the voltage of approximately -20V supplied to Check the -FL (-20V) line and service it if defective. Pin(15) of IC2001? Is there 500kHz oscillation at Pin(26) of IC2001? Check R2002, IC2001 and their periphery, and...
  • Page 21 FLOW CHART NO.14 The disc tray cannot be opened and closed. (It can be done using the remote control unit.) Replace the "OPEN/CLOSE" button (SW2188). Is the normal control voltage inputted to Pin(4) of IC2001? Refer to "FLOW CHART NO.12" <The key operation is not functioning.>...
  • Page 22 FLOW CHART NO.20 Picture does not appear normally. Set the disc on the disc tray, and playback. Replace the DVD Main CBA or DVD Mecha. Are the video signals outputted to each pin of CN1601 on the AV CBA? CN1601 1PIN CN1601 4PIN...
  • Page 23 FLOW CHART NO.21 Audio is not outputted normally. Set the disc on the disc tray, and playback. Replace the DVD Main CBA or DVD Mecha. Are the analog audio signals outputted to each pin of CN1601 on AV CBA? CN1601 14PIN AUDIO-L CN1601 16PIN AUDIO-R Check each line between each pin of CN1601 Are the analog audio signals inputted to each pin...
  • Page 24: Block Diagrams

    BLOCK DIAGRAMS System Control / Servo Block Diagram E59M2BLS 1-7-1...
  • Page 25 Digital Signal Process Block Diagram E59M2BLD 1-7-2...
  • Page 26 Video / Audio Block Diagram E59M2BLV 1-7-3...
  • Page 27 Power Supply Block Diagram E59M2BLP 1-7-4...
  • Page 28: Schematic Diagrams / Cba's And Test Points

    SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS Standard Notes Notes: WARNING 1. Do not use the part number shown on these draw- ings for ordering. The correct part number is shown Many electrical and mechanical parts in this chassis in the parts list, and may be slightly different or have special characteristics.
  • Page 29 LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES: 1. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. 2. CAUTION: Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply.
  • Page 30 DVD Main 1/3 Schematic Diagram 1-8-3 1-8-4 E59M2SCD1...
  • Page 31 DVD Main 2/3 Schematic Diagram 1-8-6 1-8-5 E59M2SCD2...
  • Page 32 IC101 VOLTAGE CHART PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----...
  • Page 33 DVD Main 3/3 Schematic Diagram 1-8-9 1-8-10 E59M2SCD3...
  • Page 34 AV 1/3 Schematic Diagram CAUTION ! CAUTION Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. NOTE : If Main Fuse (F1001) is blown, check to see that all components in the power supply FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, THE VOLTAGE FOR PARTS IN HOT CIRCUIT IS MEASURED USING circuit are not defective before you connect the AC plug to the AC power supply.
  • Page 35 AV 2/3 Schematic Diagram 1-8-14 1-8-13 E59M2SCAV2...
  • Page 36 AV 3/3,Function & LED Schematic Diagram FL2001 MATRIX CHART SACD REPEAT PSCAN GROUP TITLE SACD REPEAT TITLE GROUP PSCAN HD VCD 1-8-16 1-8-15 E59M2SCAV3...
  • Page 37 AV CBA Top View CAUTION ! Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. CAUTION If Main Fuse (F1001) is blown, check to see that all components in the power supply NOTE : FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, circuit are not defective before you connect the AC plug to the AC power supply.
  • Page 38 AV CBA Bottom View CAUTION ! Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. CAUTION If Main Fuse (F1001) is blown, check to see that all components in the power supply NOTE : FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, circuit are not defective before you connect the AC plug to the AC power supply.
  • Page 39 FUNCTION CBA Top View FUNCTION CBA Bottom View 1-8-22 1-8-21 BE5982F01011B...
  • Page 40 LED CBA Top View LED CBA Bottom View 1-8-23 1-8-24 BE5982F01011C...
  • Page 41: Waveforms

    WAVEFORMS Pin 8 of CN1601 Pin 16 of CN1601 VIDEO-Y VIDEO-Y 0.2V 0.2V 20µs AUDIO-R AUDIO-R 0.5ms 0.5ms Pin 10 of CN1601 Pin 19 of CN1601 VIDEO-C VIDEO-C 0.2V 0.2V 20µs SPDIF SPDIF 0.1µs C1402 PLUS LEAD NOTE: Input CD: 1kHz PLAY (WF4~WF6) DVD: POWER ON (STOP) MODE VIDEO-CVBS...
  • Page 42: Wiring Diagram

    WIRING DIAGRAM 1-10-1 E59M2WI...
  • Page 43: Firmware Renewal Mode

    FIRMWARE RENEWAL MODE 1. Turn the power on and remove the disc on the tray. 5. After programming is finished, the tray opens auto- 2. To put the DVD player into version up mode, press matically. Fig. e appears on the screen and the [9], [8], [7], [6], and [SEARCH MODE] buttons on checksum in (*3) of Fig.
  • Page 44: Ic Pin Function Descriptions

    IC PIN FUNCTION DESCRIPTIONS IC2001 [ PT6313-S-TP ] Signal In/Out Name Function Name FP-CLK Clock Input FP-STB Serial Interface Strobe Key Data 1 Input Key Data 2 Input Power Supply a / KEY-1 Segment Output / Key Source-1 b / KEY-2 Segment Output / Key Source-2 Segment Output / Key c / KEY-3...
  • Page 45: Lead Identifications

    LEAD IDENTIFICATIONS 2SK3566 2SC1815-Y(TPE2) 2SA1015-Y(TPE2) 2SC2785(H) 2SC2120-Y(TPE2) BN1L3Z(P) 2SC2236-Y-TPE6,C KRA110M BN1F4M-T KTA1267(Y) KRC103M KTC3199(GR,Y) KTA1266(Y) KTC3203(Y) KTC3205(Y) E C B E C B G D S KIA4558P FAN431AZXA NJM4558D PT6313-S-TP MM1636XWRE KIA431-AT SC16313 PQ070XZ5MZP MM1637XVBE LTV-817B-F LTV-817C-F K A R PS2561A-1(Q,W) 1: Vin 2: Vc...
  • Page 46: Exploded Views

    EXPLODED VIEWS Cabinet See Electrical Parts List for parts with this mark. 2L011 Some Ref. Numbers are 2L011 not in sequence. 2L021 2L021 2L021 2L105 2L106 DVD Main CBA Unit 2L107 JK2081 2L105 JK1401 2L021 2L011 JK1405 JK1404 JK1202 IC1204 F1001 2L102 2L106...
  • Page 47 Packing Unit 1-14-2 E59M2EX...
  • Page 48: Parts List

    CN2101 90M-YU001650R FPC 9P FFC AV PCB TO FNT PCB WX1E59M2-002 NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. NOTE ON SAFETY : Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol .
