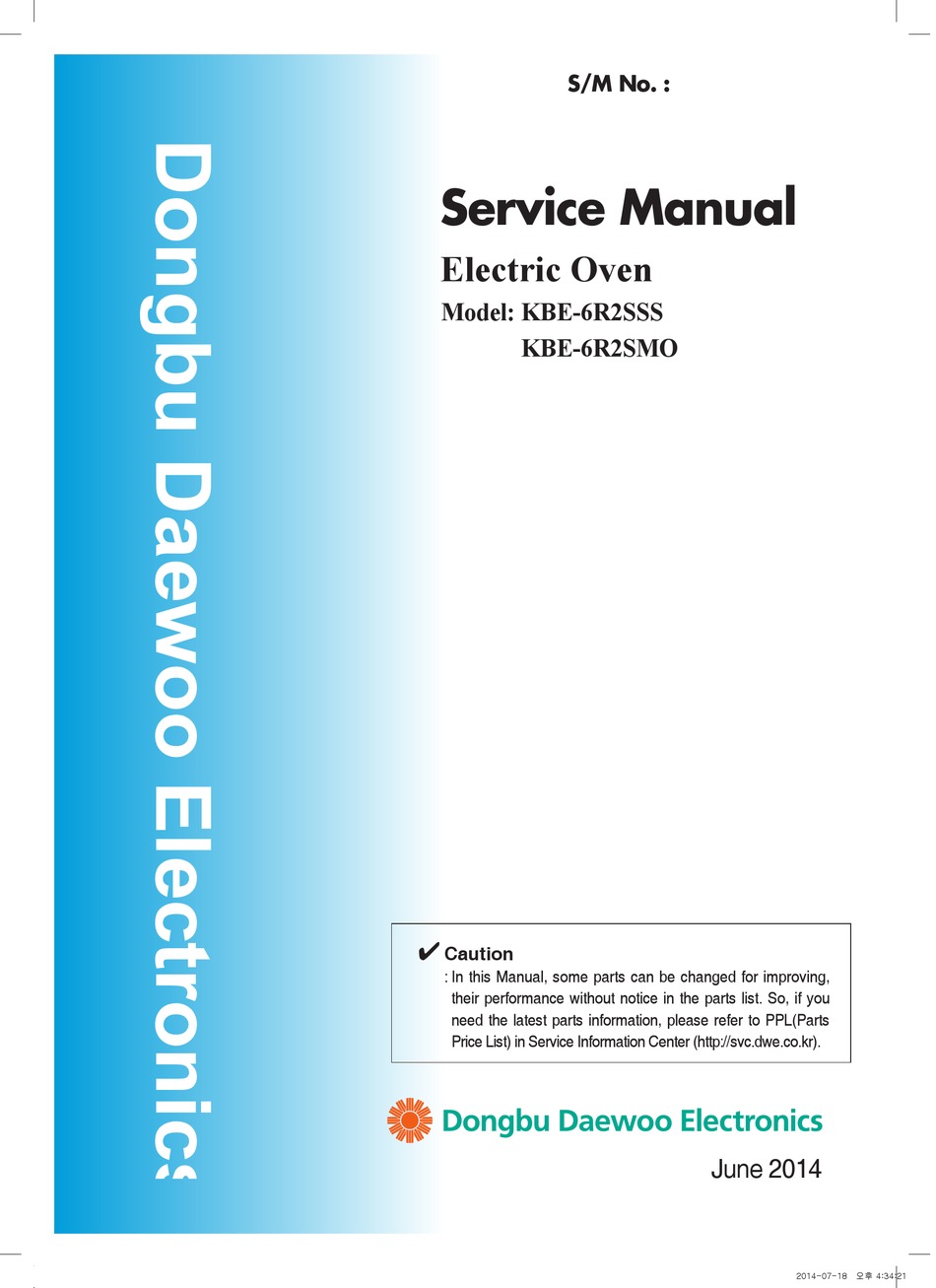

KBE-6R2SSS_6R2SMO(SM)_프랑스향.indd 1
S/M No. :
Service Manual

Electric Oven

Model: KBE-6R2SSS
KBE-6R2SMO
Caution
: In this Manual, some parts can be changed for improving,
their performance without notice in the parts list. So, if you
need the latest parts information, please refer to PPL(Parts
Price List) in Service Information Center (http://svc.dwe.co.kr).
June 2014
2014-07-18 오후 4:34:21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KBE-6R2SSS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo KBE-6R2SSS

Summary of Contents for Daewoo KBE-6R2SSS

  • Page 1: Electric Oven

    S/M No. : Service Manual Electric Oven Model: KBE-6R2SSS KBE-6R2SMO  Caution : In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service Information Center (http://svc.dwe.co.kr).

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY AND PRECAUTIONS ............................2 2. SPECIFICATIONS ................................3 3. ACCESSORIES ................................3 4. INSTALLATION ................................5 5. CONTROL PANEL ................................6 6. DISASSEmbLY AND ASSEmbLY ..........................8 Door reMovaL ................................8 Door InStaLLatIon ..............................8 reMovIng the oven froM the WaLL .........................

  • Page 3: Safety And Precautions

    1. SAFETY AND PRECAUTIONS ImPORTANT SAFETY INSTRUCTIONS read and follow all instructions before using your oven to prevent the risk of re, electric shock, personal injury, or damage when using the range. this guide does not cover all possible conditions that may occur. for further assistance contact your service agent or manufacturer.

  • Page 4: Specifications

    2. SPECIFICATIONS MoDeL kbe-6r2SSS kbe-6r2SMo PoWer SuPPLy 230v~, 50 hz top heater 1,000 W 1,000 W bottom heater 1,000 W 1,000 W PoWer Convection heater 2,000 W 2,000 W ConSuMPtIon grILL heater 2,000 W 2,000 W MaX. 3,200 W 3,000 W...

  • Page 5: Securing The Oven To The Cabinet

    SECURINg ThE OvEN TO ThE CABINET NOTE : the number of a accessories included depends on the particular appliance purchased. 1. fit oven into the cabinet recess. 2. open the oven door. 3. Secure the oven to the kitchen cabinet with two distance holders "a" which fit the holes in the oven frame and fit the two wood screws "b".

  • Page 6: Installation

    • T his appliance is supplied with cable of special type, which, if damaged, must be repaired with cable of same type. Such a cable can be purchased from DaeWoo and must be installed by a Qualified Person. 6. Examine the oven after unpacking for any damage such as: a misaligned door, broken door or a dent in cavity.

  • Page 7: Control Panel

    5. CONTROL PANEL 1) KBE-6R2SSS Function knob Remind button Start button Temperature knob Time button Stop button Symbol Function description oven Lamp : which enables the user to observe the progress of cooking without opening the door. Deforst : the circulation of air at room temperature enables quicker thawing of frozen food (without heating).
  • Page 8 2) KBE-6R2SMO Function knob Remind button Start button Temperature knob Time button Stop button Symbol Function description oven Lamp : which enables the user to observe the progress of cooking without opening the door. Defrost : the circulation of air at room temperature enables quicker thawing of frozen food (without heating).

  • Page 9: Disassembly And Assembly

    6. DISASSEmBLY AND ASSEmBLY WARNINg: turn off the electrical power supply to the appliance prior to servicing it. failure to disconnect the power supply during service may result in an electrical shock or fire hazard. Door Removal WARNINg: Do not attempt to disengage the hinge locks on the door while it is removed from the oven. WARNINg: the hinge springs could release, causing personal injury.

  • Page 10: Removing The Oven From The Wall

    Removing the Oven from the Wall the wall for service. use of an appliance dolly will minimize the risk of personal injury as a result of the oven tipping. WARNINg: hold the oven steady when removing it from the wall. otherwise, the oven will have a tendency to tip forward, increasing the risk of personal injury.

  • Page 11: Front Door Glass Assembly

    • H olding the door tightly with both hands, turn it over and place it on the flat, padded surface with the front door glass facing up. • I f the door gaskets or hinges require replacement, replace them while the front door glass is removed (depending on the oven models) • M ake sure that the door spacers in the top corners of the door are still in place before putting the front door glass back into in place. • Holding the door tightly with both hands, turn it over and place it on the flat, padded surface with the door gasket facing up. • T o reinstall the door handle, grasp the top end of the door with one hand and pull up. Hold the handle in position on the front. Lower the door onto the padded surface. • R eplace the screws in the bottom and of the door and tighten into place. Do not over-tighten the screws because the door glass could crack. • Reinstall the oven door(s) as described on page 8. (KBE-6R2SSS only.) KBE-6R2SSS_6R2SMO(SM)_프랑스향.indd 10 2014-07-18 오후 4:34:26...

  • Page 12: Control Panel

    Control Panel WARNINg: turn off the electrical power supply to the appliance prior to servicing it. failure to disconnect the power supply during service may result in an electrical shock or fire hazard. the control panel, power supply, and relay board assemblies in this oven contain electronic components that are sensitive to electrostatic discharge (eSD).

  • Page 13: Components Behind The Back Cover

    Components Behind the Back Cover WARNINg: turn off the electrical power supply to the appliance prior to servicing it. failure to disconnect the power supply during service may result in an electrical shock or fire hazard. Removing the Back Cover • Remove the oven completely from the wall as specified on page 9 • Remove the screws from the back cover. Some of the screws that hold the cover in place are located around sides.

  • Page 14: Convection Element Disassembly

    Convection Element Disassembly 1. to remove convection element, hold it with one hand and turn the nut clockwise with a wrench. 2. grasp the convection element at the base and pull it out slowly with a gentle, rocking motion. Do not pull the convection element out too quickly because the wires that connect to the element could pull free inside the oven wall.

  • Page 15: Bake Element Assembly Removal

    Bake Element Assembly Removal ImPORTANT: the bake element wires must be properly labeled so that they can be connected to the same terminal when the element is replaced. If the wires are not properly connected, the oven will not function properly. ImPORTANT: When removing it from the oven, do not hold the bake element assembly by the wires.

  • Page 16: Broil Element Assembly Removal

    Broil Element Assembly Removal ImPORTANT: the broil element wires must be properly labeled so that they can be connected to the same terminal when the element is replaced. If the wires are not properly connected, the oven will not function properly. ImPORTANT: When removing it from the oven, do not hold the broil element assembly by the wires.

  • Page 17: Temperature Sensor Removal

    Temperature Sensor Removal • Remove the oven door(s) as described on page 4. • Remove the oven racks from the oven chamber. Rack Support Removal • R emove the screws that hold the rack support (on the appropriate side) in place. Be careful not to scratch the inside surface of the oven when removing it. Temperature sensor removal • Remove the screws that hold the temperature sensor in place. • W hen removing the temperature sensor, pull the wires attached to the sensor gently toward you through the hole in the back of the oven to expose the connector. Do not pull hard on the wires because the connector may come loose inside the oven wall.

  • Page 18: Cooling Fan (Blower)

    Cooling Fan (blower) WARNINg: accessing the cooling fan requires that oven's top panel be removed. When the top panel is removed, the oven’s printed circuit assemblies are exposed. the printed circuit assemblies contain electronic components that are sensitive to electrostatic discharge or eSD. Wear a properly grounded antistatic wrist strap when touching or servicing the printed circuit assemblies.

  • Page 19: Electrical Wiring

    lectrical Wiring: 7. ELECTRICAL WIRINg KBE-6R2SSS_6R2SMO(SM)_프랑스향.indd 18 2014-07-18 오후 4:34:36...
  • Page 20 KBE-6R2SSS_6R2SMO(SM)_프랑스향.indd 19 2014-07-18 오후 4:34:36...
  • Page 21 KBE-6R2SSS_6R2SMO(SM)_프랑스향.indd 20 2014-07-18 오후 4:34:36...
  • Page 22 KBE-6R2SSS_6R2SMO(SM)_프랑스향.indd 21 2014-07-18 오후 4:34:36...

  • Page 23: Troubleshoots

    8. TROUBLEShOOTS OPERATIONAL DIFFICULTIES AND POSSIbLE CAUSES Symptom Cause or Source Troubleshooting Checks Solution User Actions/ Solutions oven will turn on oven will turn on oven will turn on automatically at preset time. automatically at preset time. automatically at preset oven set for delay timed Press CANCEL/SECURE Press CANCEL/SECURE...

  • Page 24: Error Codes

    9. ERROR CODES Displayed Error Description Software Logic Description Solution Message / Failure Criteria Er-1 temperature sensor open circuit all load stopped working (1) turn off the power, 1 minute later, turn on the Er-2 temperature sensor short circuit all load stopped working power, checked whether display error code or not.
  • Page 25 DONgbU DAEWOO ELECTRONICS CORP. Dongbu financial Center, 432, teheran-ro gangnam-gu, Seoul 135-523, korea S/M no. : r-559y001 PrInteD Date: June 2014 KBE-6R2SSS_6R2SMO(SM)_프랑스향.indd 24 2014-07-18 오후 4:34:37...
  • Page 26 ABOUT THIS MANUAL ABOUT THIS MANUAL VISION CREATIVE. INC. 서울 종로구 통의동 6번지 이룸빌딩 4층 담 당 조상민 님 KBE-6R2SSS M O D E L KBE-6R2SMO (SM) 접 수 2014.07.18 M E M O (총 25p)_CS3 140718 - 신규 총 25p(1~25) 연락처...
