ABOUT THIS MANUAL
ABOUT THIS MANUAL
담
당
이기웅 님
브 랜 드
DAEWOO
F. MODEL
KOC-1C0K5S
B.MODEL
KOC-1C0KB/KOC-1C0KW/KOC-1C4K
B U Y E R
Europe
COUNTRY
인
쇄
MEMO
총 33p
11.05.30-전체신규 33p
V V I I S S I I O O N N C C R R E E A A T T I I V V E E , , I I N N C C . .
서울 종로구 통의동
6번지 이룸빌딩 4층
언 어
영어
연락처
VISION
담 담 당 당
방 문 수
TEL: 730-0660 FAX: 730-3788
Advertisement
Table of Contents
Related Manuals for Daewoo KOC-1C0KB
Summary of Contents for Daewoo KOC-1C0KB
- Page 1 서울 종로구 통의동 6번지 이룸빌딩 4층 담 당 이기웅 님 브 랜 드 DAEWOO 언 어 영어 F. MODEL KOC-1C0K5S B.MODEL KOC-1C0KB/KOC-1C0KW/KOC-1C4K B U Y E R Europe COUNTRY 인 쇄 MEMO 총 33p 11.05.30-전체신규 33p 연락처 VISION 담 담 당 당...

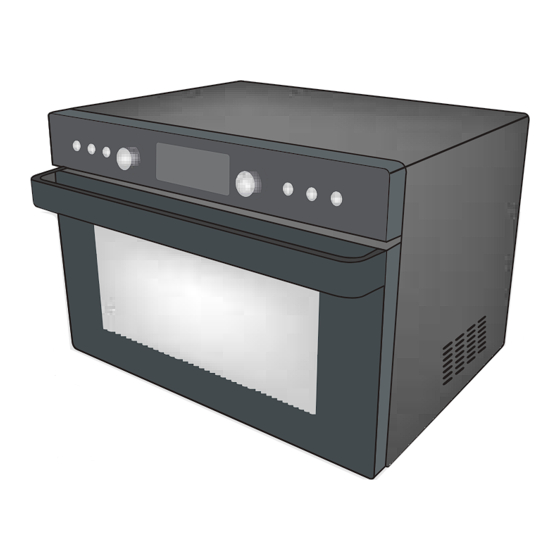

- Page 2 MULTI-FUNCTION OVEN KOC-1C0KB/KOC-1C0KW/KOC-1C4K OWNER’S MANUAL Before operating this oven, please read these manual completely.
-
Page 3: Table Of Contents
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. -
Page 4: Earthing Instructions
EARTHING INSTRUCTIONS This appliance must be earthed. In the event of an IMPORTANT electrical short circuit, earthing reduces the risk of electric The wires in this mains lead fitted to this appliance are shock by providing an escape wire for the electric current. colored in accordance with the following code. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING : To prevent fire, burns, electric shock and other warnings: Listed below are, as with all appliances, certain rules to follow and safeguards to assure high performance from this oven: 11. -
Page 6: General Use
GENERAL USE Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven: 11. Do not use the oven for any reason other than food 14. Do not attempt to remove covers, panels, etc. preparation, such as for drying clothes, paper, or any other nonfood items or for sterilizing purposes. -
Page 7: Which Utensils Can Be Used In The Oven
TO AVOID EXPLOSION AND SUDDEN BOILIING 1. Eggs Never cook eggs in their shells. Steam will build up inside WARNING the shell during cooking and the egg will explode. If you want to cook or reheat eggs which have not been Liquids, such as water, coffee, or tea are able to be broken up by scrambling or mixing, you must always overheated beyond the boiling point without appearing to be... -
Page 8: Control Panel
CONTROL PANEL 1 Display 6 Control Dial Knob ( You can enter cooking time, quantity, weight, and The display shows you some information such as temperature by turning the Control Dial knob. cooking time, menu, quantity and temperature and so 7 Selection( ) Button: You can confirm the contents 2 Quick defrost(... -
Page 9: Display Window
DISPLAY WINDOW 1 Display window 4 Icons of cooking menu The display shows you some cooking information such as : It means Quick defrost. lights in the display cooking time, clock, temperature, quantity and so on. during Quick defrosting. : It means Steam cleaning. lights in the display during Steam cleaning. -
Page 10: Accessories
ACCESSORIES This oven is equipped with several accessories. They can be used in various ways to facilitate cooking. 1 Metal Tray - Put food or proper cookware on the metal tray. NOTE : Metal Tray is attached to the left cushion. 2 Grill Rack - Put the grill rack on the metal tray. -
Page 11: Auto Cook
AUTO COOK This function allows you to cook some kind of popular food easily and automatically. 35 6 1. Turn the Menu Dial Knob to adjust to AUTO COOK 2. Turn the control dial knob to select AUTO COOK menu. (example: Roast Pork) •... - Page 12 Auto Cook Menu Chart Auto Cook Menu Minimum Weight Maximum Weight Weight Step ROAST PORK 800 g 1800 g 100 g ROAST BEEF 800 g 1800 g 100 g ROAST CHICKEN 800 g 1500 g 100 g BAKED FISH 300 g 900 g 100 g FRESH VEGETABLE...
-
Page 13: Instant Cook
INSTANT COOK This function allows you to cook some kind of instant food easily and automatically. 35 6 1. Turn the Menu Dial Knob to adjust to INSTANT COOK 2. Turn the control dial knob to select Instant Cook menu. (example: Frozen Hamburger) •... - Page 14 Instant Cook Menu Chart Instant Cook Menu Minimum Weight Maximum Weight Weight Step FROZEN HAMBURGER 1 pcs 4 pcs 1 pcs SAUSAGE 100 g 500 g 100 g BAKED POTATO 1 pcs 5 pcs 1 pcs FROZEN PIZZA 100 g 700 g 50 g FROZEN VEGETABLE...
-
Page 15: Microwave Cook
MICROWAVE COOK This function allows you to cook food with microwave energy. You can change the microwave power level from P-00 to P-HI. Each power level gives you microwave energy a certain percent of the time. P-HI means that the oven cooks food at full microwave energy. -
Page 16: Speedy Cook
SPEEDY COOK This function allows you to cook immediately at full power of microwave energy only. It can be used as a speedy cook for 30 seconds. Then You can add 30 seconds to the time counting down each time the Start button is pressed. -
Page 17: Convection Cook (Without Preheating)
CONVECTION COOK (Without Preheating) This function enables you to cook food in the same way as in a traditional oven. 1. Turn the Menu Dial Knob to adjust to CONVECTION COOK. 2. Turn the Control Dial Knob to select the Temperature. (example: 180 ºC) Temperature sequence 180ºC... -
Page 18: Convection Cook (With Preheating)
CONVECTION COOK (With Preheating) For convection cooking, it is recommended that you preheat the oven to the appropriate temperature before placing the food in the oven.The maximum preheating time is 30 minutes. If the cooking is not started immediately after preheating ,the preheating indicator will continue to flash and the preheated oven temperature will be displayed. -
Page 19: Grill Cook
GRILL COOK The grill enables you to heat and brown food quickly without microwave energy. 1. Turn the Menu Dial Knob to adjust to GRILL COOK 2. Turn the Control Dial Knob to enter the cooking time. (example: 1 hour of cooking time.) You can enter the cooking time up to 1 hour and 30 minutes in Grill cook. -
Page 20: Combination Cook (Microwave+Convection)
COMBINATION COOK (Microwave + Convection) This function allows you to combine convection operation with microwave to produce traditional baked or roasted results in less time. Always use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly. 35 7 1. -
Page 21: Auto Defrost
AUTO DEFROST (Weight Defrost with Microwave Feature) Weight Defrost automatically sets the defrosting times and power levels to give even defrosting results for frozen food. During the defrosting process the oven will beep to remind you to check the food. The oven will beep, open the door, turn the frozen food over and close the door, press the START button. -
Page 22: Auto Defrost
AUTO DEFROST (Time Defrost with Microwave Feature) During the defrosting process the oven will beep to remind you to check the food. The oven will beep, open the door, turn the frozen food over and close the door, press the START button. 1. -
Page 23: Fermentation (With Convection Feature)
FERMENTATION (with Convection Feature) This function helps you to ferment doughs easily. If the temperature in the inside of oven is high, it might reduce the quality of fermentation. Then you should cool the oven down to the room temperature before fermentation. 1. -
Page 24: Quick Defrost (With Microwave Feature)
QUICK DEFROST (with Microwave Feature) You can defrost a 500 grams of food quickly and easily. 1. Press the Quick defrost button The oven starts working immediately. 2. The display shows “End” and beep sounds when the cooking is completed. WARNING: The oven and accessories are very hot after cooking. -
Page 25: Steam Cleaning (With Microwave Feature)
STEAM CLEANING (with Microwave Feature) This function helps you to clean the inside of oven. 1. Put about 200cc water in a mug cup or small bowl in the middle of the metal tray on the first level in the oven. 2. -
Page 26: Deodorization (With Convection Feature)
Deodorization (with Convection Feature) The oven has a special function to blow off smells in the oven. You'd better put a metal tray on the first level. 1. Press the Deodorization button The oven starts working immediately, and it works for 10 minutes. 2. -
Page 27: Memory Cook (With Microwave Feature)
MEMORY COOK (with Microwave Feature) You can save the microwave cook used frequently in the memory. 1. Turn the Menu Dial knob to adjust to MEMORY COOK 2. Turn the Control Dial knob to select the number of memory. (example: When you select the second momory storage ) 3. -
Page 28: Setting The Memory Cook
SETTING THE MEMORY COOK You can save the microwave cook used frequently in the memory. 1468 Example: If you want to save 30 seconds of microwave cook at full power into the second memory storage... 1. Press and hold the Selection button for 3 seconds. -
Page 29: Setting The Clock
SETTING THE CLOCK When the oven is plugged in, the display shows " 0" with a sound. Your oven provides you with a muliple (12hr/ 24hr) time format. In order to set the clock, follow the steps below. 1468 Example: If you want to set the clock to 10:25 ... 1. -
Page 30: Power Save Mode
POWER SAVE MODE Power save mode helps energy to be saved by turning the display off while the oven doesn't work for long time. If the oven is left for 10 minutes without user's touch on a button and dial, Power save mode will work automatically to turn the display off. The power save mode could be cancelled when you press any button, turn a dial or open the door during the power save mode. -
Page 31: General Guidelines
GENERAL GUIDE LINES Since microwave cooking to some extent is different from Covering food helps: traditional cooking, the following general guidelines should be • To reduce spattering • To shorten cooking times considered whenever you use your microwave oven • To retain food moisture All covering, which will allow microwaves to pass through are If the food is undercooked suitable-See above “Which utensils can be used in the oven?”... -
Page 32: Care Of Your Microwave Oven
CARE OF YOUR MICROWAVE OVEN The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Turn the oven off before cleaning. -
Page 33: Keep The Oven Clean
KEEP THE OVEN CLEAN Note: • Although your oven is provided with safety features, it is important to observe the following: 1. It is important not to defeat or tamper with safety interlocks. 2. Do not place any object between the oven front face and the door or allow residue to accumulate on sealing surfaces. -
Page 34: Before Calling For Service
BEFORE CALLING FOR SERVICE You can often correct operating problems yourself. Note: If your microwave/grill oven fails to work properly, It is quite normal for steam to be emitted around the door locate the operating problem in the chart below and during the cooking cycle. -
Page 35: Questions And Answers
QUESTIONS AND ANSWERS * Q : I accidentally ran my microwave oven without any * Q : Why does my oven not always cook as fast as the food in it. Is it damaged? microwave cooking guide says? A : Running the oven empty for a short time will not damage A : Check your cooking guide again, to make sure you’ve the oven. -
Page 36: Specifications
SPECIFICATIONS Power supply 230V AC, 50Hz Single Phase Power consumption 1450W Microwave Output power 800W(IEC 705) Frequency 2,450MHz Grill power consumption 1250W Convection power consumption 2650W Combination heating power consumption 2750W Maximum power consumption 2900W Outside Dimension(WXDXH) 524 X 477 X 375 mm Cavity Dimensions(WXDXH) 400 X 365 X 233 mm Net Weight... -
Page 37: Cooking Instructions
COOKING INSTRUCTIONS Only use utensils that are suitable for use in microwave ovens. To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken choosing the utensil. If the utensil is marked microwave-safe, you do not need to worry. The following table lists various of utensil and indicates whether and how they should be used in a microwave oven.
