Effectrode Delta-Trem Owner's Manual

Download this manual

Enlarged version

S p e c i f i c a t i o n s

• Input impedance: greater than 1MOhm

• Output impedance: less than 1KOhm

• Controls: Shape, Depth, Speed and Rhythm

• Features: Raysistor and tube tremolo circuitry

• Expression pedal: Roland EV-5 or EV-7.

• Turquoise LEDs: pulsate with modulation

speed for visual song tempo matching.

• Continuously variable L.F.O.: Three banks

containing 48 different waveforms.

• Power requirements: 12VDC @ 1Amp

• Dimensions: width 7.5" depth 4.8" height 1.3"

• Weight: 2lb (on Earth); 2.1lb (Saturn)

• Construction: solid die-cast aluminum box

• Finish: Olive-brown powder coat

DT-2A

Serial #

Audiophile Pedals

R A Y S I S T O R T R E M O L O - P A N N E R

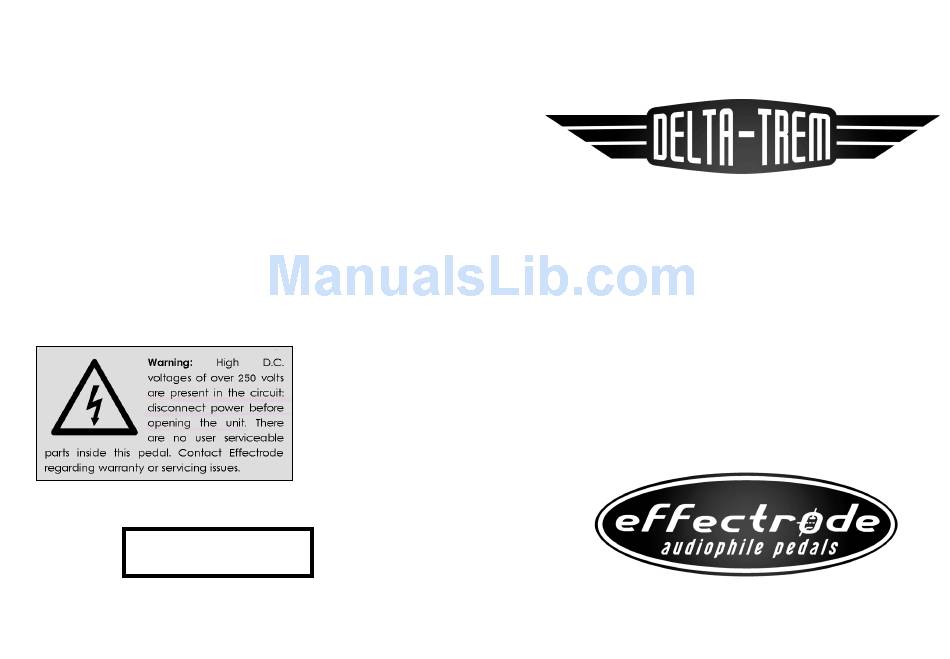

Owner's Manual

12 Broughton Crescent, Barlaston,

Staffs, UK. ST12 9DB

www.effectrode.com

Need help?

Do you have a question about the Delta-Trem and is the answer not in the manual?

Page 1 • Dimensions: width 7.5" depth 4.8" height 1.3" • Weight: 2lb (on Earth); 2.1lb (Saturn) Owner’s Manual • Construction: solid die-cast aluminum box • Finish: Olive-brown powder coat DT-2A Serial # 12 Broughton Crescent, Barlaston, Staffs, UK. ST12 9DB www.effectrode.com â Copyright © 2015 Effectrode Audiophile Pedals...
Page 2 I n t r o d u c t i o n T u b e s Delta-Trem ä The 12AU7 tubes in the Delta-Trem can be swapped authentically recreates with other 9-pin double triode tubes such as the alluring, hypnotic tone and feel of a vintage tube 12AX7, 12AY7, etc.
Page 3 ‘ticking’ noise and also lose gain at lower modulation rates, resulting in a weaker intensity of effect. These The Delta-Trem tremolo speed can also be issues have been engineered out in the Delta-Trem controlled using external V.C.O.
Page 4 (such as guitar) or as a true stereo tremolo for use with Tone Tip! The Delta-Trem can be utilised as an stereo keyboards. When the switch is ‘up’ the input audiophile tube boost/buffer/splitter when the ‘Depth’...
