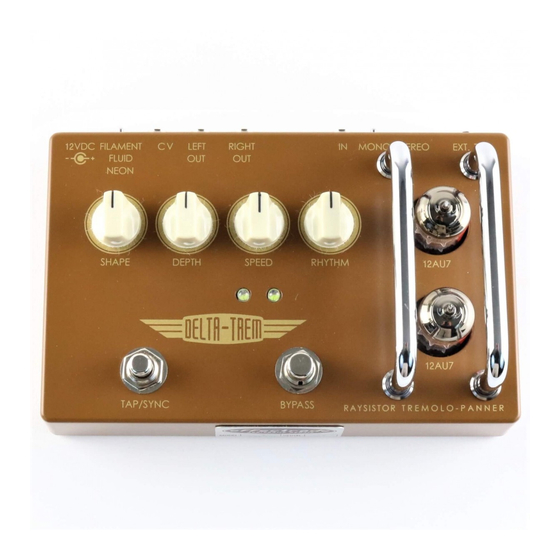

Effectrode DELTA-TREM DT-2A Owner's Manual

Raysistor t remolo-panner

Download this manual

S p e c i f i c a t i o n s

• Input impedance: greater than 1MΩ

• Output impedance: less than 1KΩ

• Controls: Shape, Depth, Speed and Rhythm

• Features: Raysistor and tube tremolo circuitry

• Expression pedal: Roland EV-5 or EV-7.

• Turquoise LEDs: pulsate with modulation

speed for visual song tempo matching.

• Continuously variable L.F .O.: Three banks

containing dozens of different waveforms.

• Power requirements: 12VDC @ 1Amp

• Dimensions: width 7.5" depth 4.8" height 1.3"

• Weight: 2lb ( on Earth); 2.1lb (Saturn)

• Construction: solid die-cast aluminum box

• Finish: Olive-brown powder coat

Serial #

DT-2A

Thermionic

R A Y S I S T O R T R E M O L O - P A N N E R

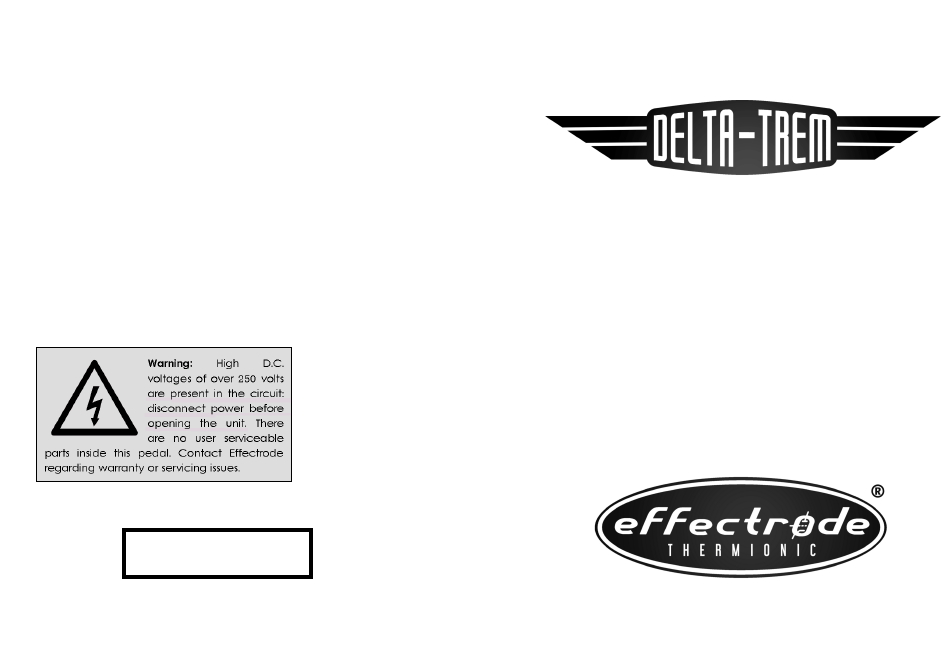

Owner's Manual

12 Br o ug ht on C re sce n t, Barl as t on ,

S taf fs , E nglan d. S T1 2 9DB

ww w. ef fe ct r od e. co m

Need help?

Do you have a question about the DELTA-TREM DT-2A and is the answer not in the manual?

Page 2 'n' roll, surf tremolo tones and much, much more with unparalleled warmth and clarity . P o t s Thank you for trusting Effectrode to be your effects This pedal is fitted with custom British made Omeg company . We wish you many years of musical potentiometers.
Page 3 space pace With the internal jumper Link in place the ‘Shape’, C o n t r o l s ‘Depth’, ‘Speed’ and ‘Rhythm’ parameters of the Shape knob adjusts the character of the tremolo by ‘Right’ tremolo are the same as the ‘Left’ tremolo altering the L.F .O.
Page 4 Rhythm knob selects 1 of 8 different accented Tap/Sync footswitch sets the tremolo speed of the Delta-Trem. Two or more successive presses (taps) rhythmic patterns to emphasise specific tremolo pulse beats. The following time signatures are of the footswitch set the speed according to the foot available: 1/1, 1/2 (march time ), 3/4 (waltz time ), 4/4 tap rate putting the pedal into ‘tap tempo’...
