S p e c i f i c a t i o n s
• Input impedance: greater than 1MOhm
• Output impedance: less than 1KOhm
• Controls: Intensity, Speed and Volume
• Features: stagger-tuned capacitors
• Expression pedal: Roland EV-5 or EV-7.
• LED: pulsates with modulation speed
for visual song tempo matching.
• L.F.O.: DC (frozen) -10Hz
• Power requirements: 12VDC @ 1Amp
Owner's Manual
• Dimensions: width 7.5" depth 4.8" height 1.3"
• Weight: 2lb (on Earth); 0.8lbs (on Mars)
• Construction: solid die-cast aluminum box
• Finish: Retro purple powder coat
TV-5A
Serial #
12 Broughton Crescent, Barlaston,
Staffs, UK. ST12 9DB
â
Copyright © 2014 Effectrode
Audiophile Pedals
www.effectrode.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the TUBE-VIBE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Effectrode TUBE-VIBE

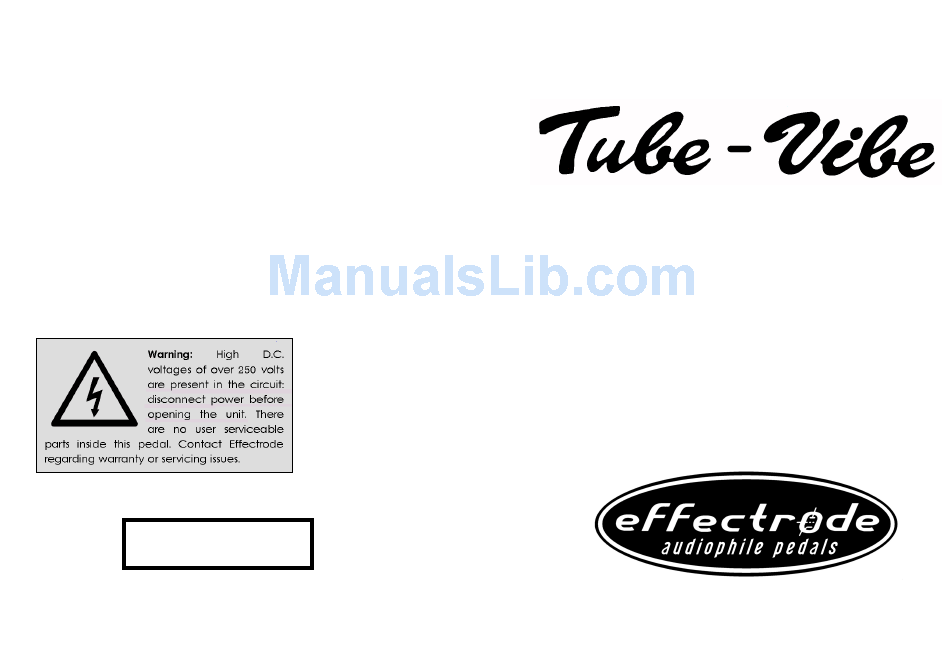

  • Page 1 • Dimensions: width 7.5" depth 4.8" height 1.3" • Weight: 2lb (on Earth); 0.8lbs (on Mars) • Construction: solid die-cast aluminum box • Finish: Retro purple powder coat TV-5A Serial # 12 Broughton Crescent, Barlaston, Staffs, UK. ST12 9DB â Copyright © 2014 Effectrode Audiophile Pedals www.effectrode.com...
  • Page 2 I n t r o d u c t i o n T u b e s The Tube-Vibe is a no-compromise re-design of the The 12AU7 tube in the Tube-Vibe can be swapped Shin-Ei Shiftee Uni-Vibe used to create many classic with many 9-pin double triode tubes, including recordings by artists such as Dave Gilmour, Robin 12AT7, 12AX7, 12AY7, etc.
  • Page 3 (slow vibrato with full sweep produces a seasick sound). Volume knob sets the output level when the Tube- External VCO The Tube-Vibe modulation speed Vibe is engaged. In the centre 12 o’clock position can also be controlled using an external VCO gain is roughly unity.
  • Page 4 The tube signal path in Effectrode pedals is built to demanding audiophile standards to ensure hi-fidelity and signal integrity at all times, with the benefit that your guitar...
