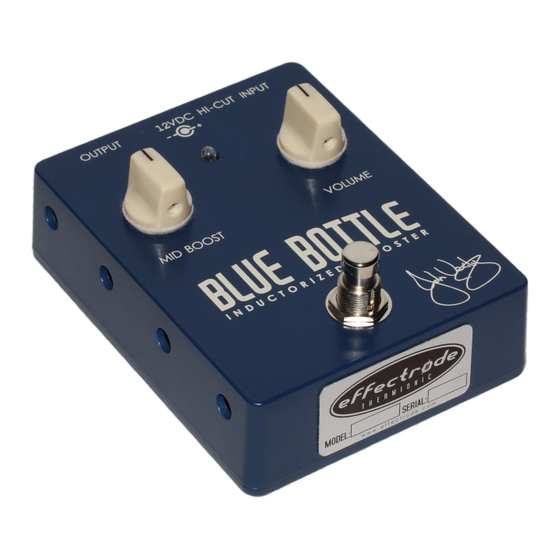

Effectrode Blue Bottle Manual

Download this manual

S p e c i f i c a t i o n s

• Input impedance: Greater than 1MΩ

• Output impedance: Less than 40KΩ

• Controls: Mid Boost and Volume

• Features: Hi-Cut switch selectable low-pass

–3dB points at 3KHz and 6KHz

• All tube: Based on N.O.S. 'Sylvania' 6111W A

subminiature triode tube operating in class-A

• Gain: Continuously variable from -∞dB to 18dB

• True bypass: With 'anti-pop' or 'thump' foot-

switching circuitry

• Power requirements: 12VDC @ 600mA -

centre positive 2.1mm barrel connector

• Dimensions: Width 4.75"; Depth 3.75"

• Weight: 12oz ( on Earth); 13.5oz (Neptune )

• Construction: Solid die-cast aluminum box

• Finish: Tough cobalt blue powder coat

Serial #

JV-1A

Thermionic

12 Br o ugh t on C re sc ent , B arla s t on,

St af fs , En glan d. S T12 9DB

ww w. ef fe ct r od e. co m

Need help?

Do you have a question about the Blue Bottle and is the answer not in the manual?

Page 2 I n t r o d u c t i o n T u b e s The JV-1A (a.k.a. Blue Bottle™) is a limited edition The JV-1A signal path is based on signature mid-boost pedal designed by Effectrode Sylvania 6111 N.O.S.
Page 3 With the knob set fully clockwise the Blue Bottle adds up to 12dB of pure tube mid-boost Tone Tip! To create the last word in all-tube preamp ® which can be used to great effect on a Fender rigs we recommend placing the Fire Bottle pickup Stratocaster™...
Page 4 Hi-Cut 3-way toggle switch applies a -6dB/oct low- remains pure, pristine and intact. pass filter at the output of the Blue Bottle. In the ‘center’ position the filter response is flat and when the switch is in the ‘up’ or ‘down’ position the low- pass filter has -3dB points at 3KHz and 6KHz respectively .
