B. Water System - Compact CP 30SC E Service Manual

F.A.G. SRL
ME-CPT1-199
mod. CP30 - CP45
CP70
E
SB
WT
OF
P

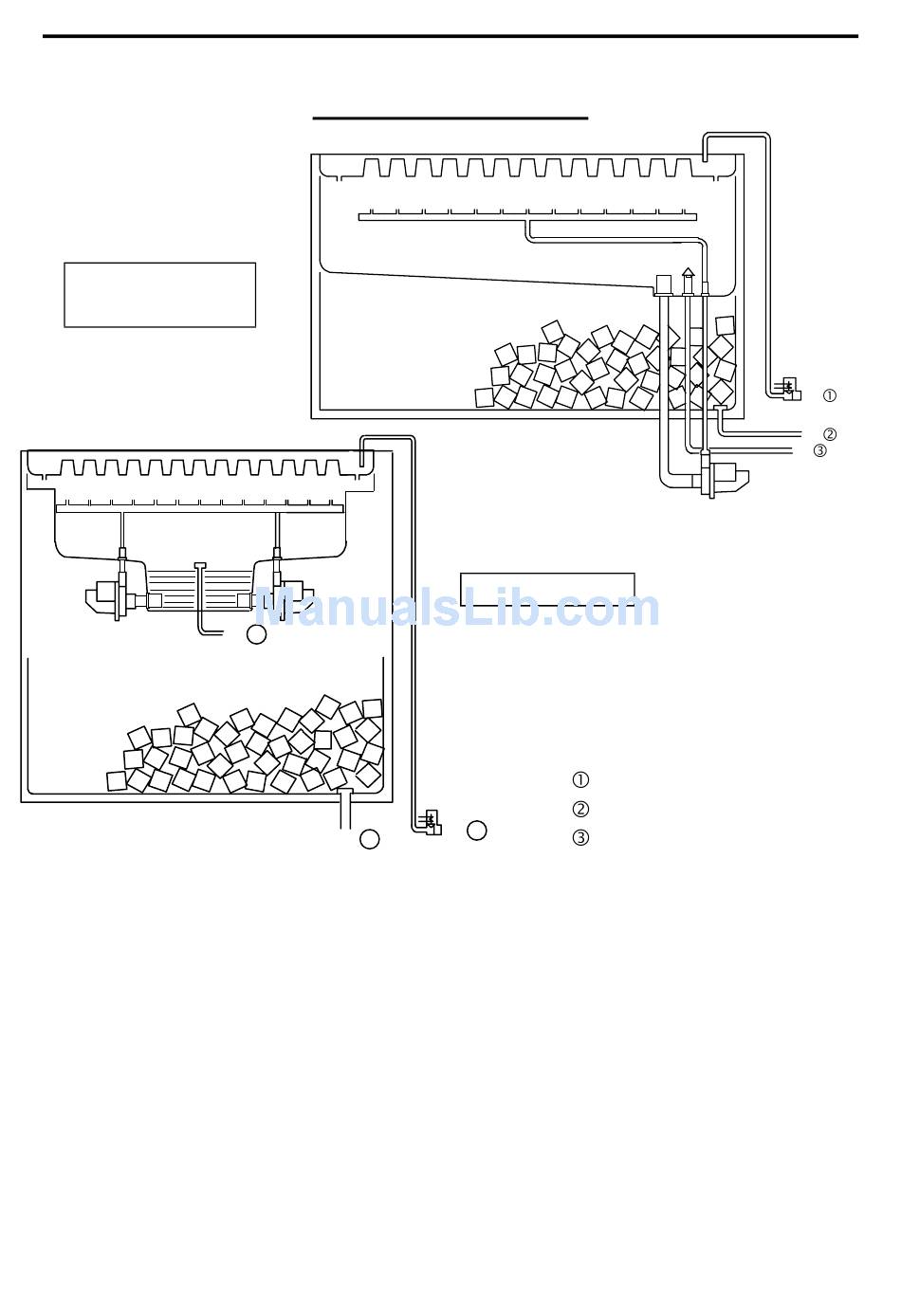

1.B.a. Freezing cycle
1. The pump P takes water from the water tank WT through a suction pipe and sends it to the
spray bar SB (two pumps and two spray bars for mod. CP120).
2. The water sprayed by the nozzles reaches the cooled cups on the evaporator E. A quantity of
water freezes and the excess falls again into the water tank.
3. The water inlet valve VA is closed.
1.B.b. Defrost cycle (harvest)
1. The water inlet valve VA is open. Fresh water goes up on top of evaporator, helping defrost.
2. From the top of the evaporator, water falls into the water tank and refills it.
3. Excess water is discharged by the overflow control OF.
4. Water pump(s) is not working.
1.B.c. Ice storage bin
1. Water from melted ice is drained separately, and does not enter again into the water system.

1.B. WATER SYSTEM

E
WT
P
⇒ ⇒ ⇒ ⇒
3
⇒ ⇒ ⇒ ⇒
2
SELF CONTAINED UNITS WITH TIMER
COMPACT SERVICE MANUAL
SB
mod. CP 120 only
P
SB
WT
VA
E
OF
⇐
VA
⇒
⇐ ⇐ ⇐ ⇐
1
⇒
PAG.4
OF
P
Pump(s)
Spray bar(s)
Water tank
Inlet water valve
Evaporator
Overflow
Water inlet
Bin overflow drain
Tank overflow drain
⇐
⇒
⇒
