General Information - Compact CP 30SC E Service Manual

F.A.G. SRL
ME-CPT1-199
MODEL
CP 30SC E
CP 30SC E W
CP 30 E
CP 30 E W
CP 45 E
CP 45 E W
CP 70 E
CP 70 E W
CP 120 E
CP 120 E W
5.

GENERAL INFORMATION

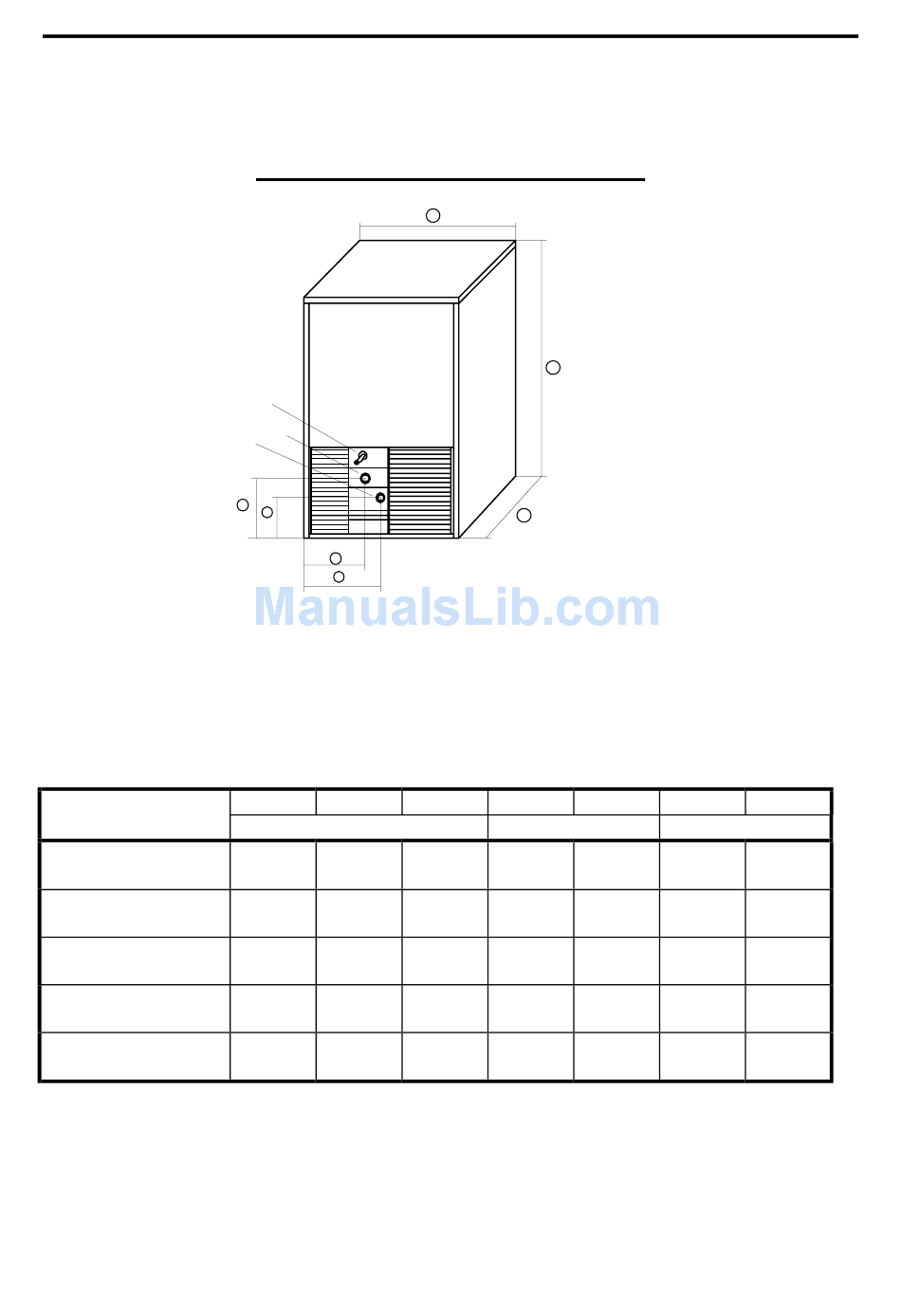

5.A. WEIGHTS & DIMENSIONS
1
2
3
B
D
C
A
1) Electrical cord
2) Water inlet 3/4"
3) Water drain ø 20 mm
L P
mm
405 430
495 560
495 560
710 560
710 560
SELF CONTAINED UNITS WITH TIMER
COMPACT SERVICE MANUAL
L
H
P
dimensions
H A
mm
650 55
745 220
815 220
900 425
1270 425
PAG.14
B C
mm
90 100
145 275
145 275
195 485
195 485
D
70
65
65
120
120
