Summary of Contents for Planet Audio P8.2UAW

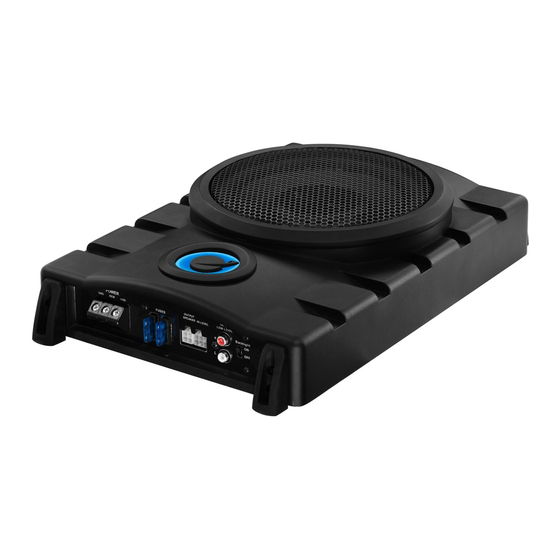

- Page 2 Congratulations on your purchase of the Planet Audio P8.2UAW, amplified Under Seat Subwoofer. It has been designed, engineered and manufactured to bring you the highest level of performance and quality, and will afford you years of listening pleasure. Thank you for making a Planet Audio your choice for car audio entertainment! P8.2UAW...
-
Page 3: What Is Included
When first unpacking your new amplified system, please check that the package contains all of the items below. If something is missing, contact our Tech Dept. Main Unit P8.2UAW Amplified System Accessories Subwoofer Remote Control w/ Cable High-Level Input Harness... -
Page 4: Front Panel Controls And Features
Front Panel Controls and Features ① LED STATUS INDICATOR Green – On Red –Protection ② CH 1/2 GAIN CONTROL Ch 1/2 Gain control should be first set. The volume control on the head unit should be turned up to ¾ of max. -
Page 5: Rear Panel Controls And Features
Rear Panel Controls and Features ①POWER TERMINALS Planet Audio recommends the use of high quality 8 gauge wiring. The ground should be kept under 3ft (36”). Always scrape away any paint for the ground connection. Ground point should be clean with the correct type of bolt to secure it. - Page 6 RCA Inputs (Low Level) RCA cables are preferred for best audio performance. Installation lengths will vary due to sizes. Always connect with the high-quality cables to avoid any induced noise. NOTE: DO NOT USE/CONNECT BOTH HIGH-LEVEL AND RCA INPUTS AT THE SAME TIME Speaker Input (High-Level) The high-level input(s) should only be used when your receiver lacks Full-Range RCA Outputs.
- Page 7 High-Level Input & Speaker Output Wiring The high-level input(s) should only be used when your receiver lacks Full-Range RCA Outputs. If the RCA outputs are not present, connect the speaker outputs from the receiver to the high-level input connector of the amplifier. Be sure to observe polarity to avoid audio phase problems.
-
Page 8: Power Input Connections
Power Input Connections Connect the ground terminal to the closest point on the chassis of the vehicle. Keep this ground wire to less than 3 ft. (36”) in length. Use a high quality OFC 8 gauge wire. Connect the remote terminal to the remote output of the head unit to “REM” using 16 gauge wire. -
Page 9: Mounting The Subwoofer
Mounting the subwoofer 1. Find a suitable location in the vehicle in which to mount the amplifier. An optional location is shown below: 2. Make sure there is sufficient air circulation around the intended mounting Location. 3. The mounting feet have multiple mounting locations. 4. -
Page 10: Troubleshooting
Troubleshooting If you experience operation or performance problems with this product, compare your installation with the electrical wiring diagrams on the previous pages. If problems persist, read the following troubleshooting guide which may help. If you have any further questions, please give our Tech Department a call. Check to make sure you have a good ground connection Check that the remote input (turn-on) has at least 9VDC Check that there is battery power on the (+)terminal... -
Page 11: Specifications
Specifications Maximum Power 800 W + (250 W @ 2 Ohm) < 0.1% S/N Ratio >88db Frequency Response 20 Hz - 150 Hz Input Sensitivity 100 mV - 6 V Low Pass Filter 50 Hz – 150 Hz @ 12dB/Oct Subsonic Filter 20 Hz –...
