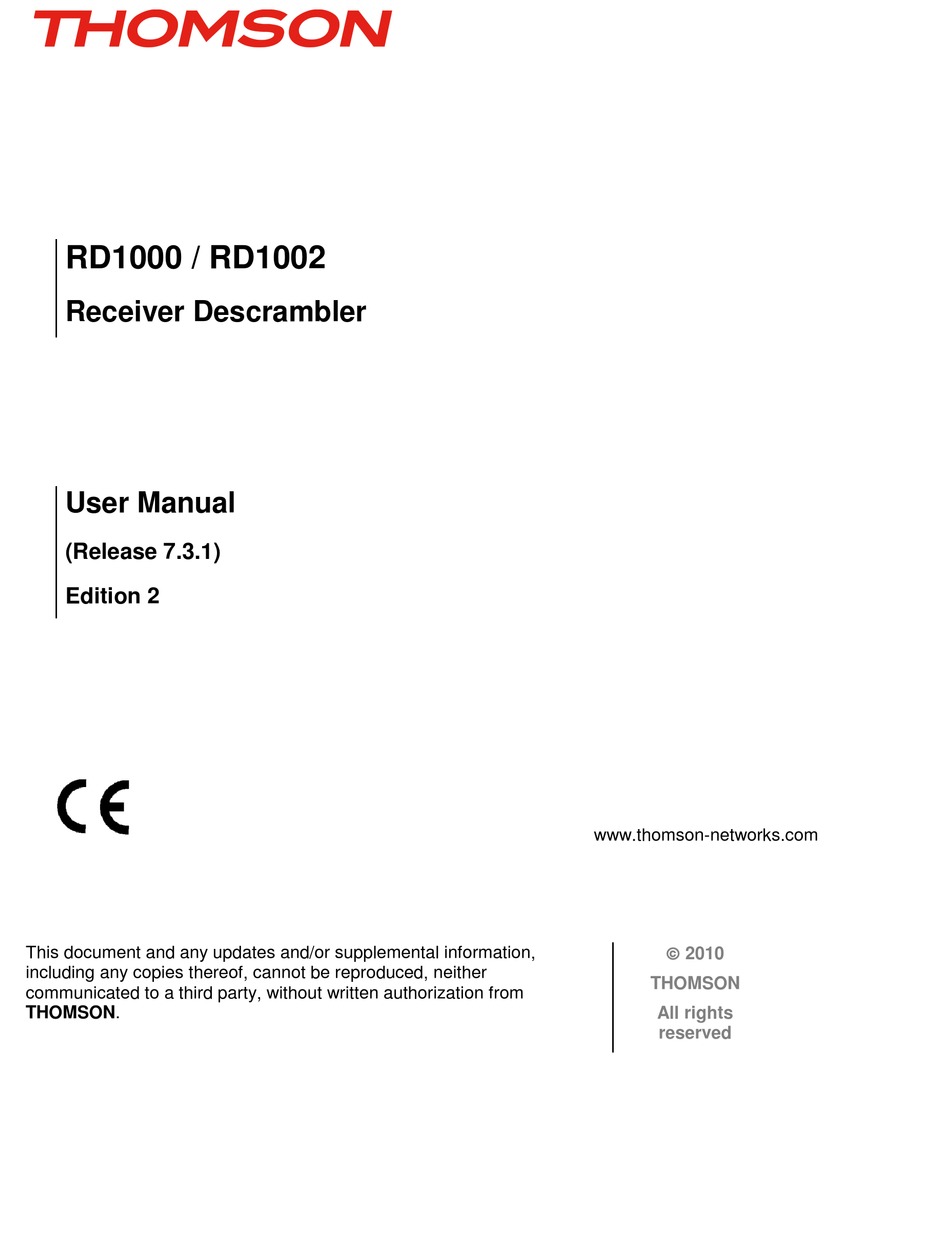

RD1000 / RD1002
Receiver Descrambler

User Manual

(Release 7.3.1)
Edition 2
This document and any updates and/or supplemental information,
including any copies thereof, cannot be reproduced, neither
communicated to a third party, without written authorization from
THOMSON.
www.thomson-networks.com
 2010
THOMSON
All rights
reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RD1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for THOMSON RD1000

Summary of Contents for THOMSON RD1000

  • Page 1: User Manual

    RD1000 / RD1002 Receiver Descrambler User Manual (Release 7.3.1) Edition 2 www.thomson-networks.com  2010 This document and any updates and/or supplemental information, including any copies thereof, cannot be reproduced, neither THOMSON communicated to a third party, without written authorization from THOMSON.
  • Page 2 Page 2 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 3 THOMSON RD1000 / RD1002 Page 3 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 4 FCC Class A Information The RD1000 and RD1002 have been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 5 Never allow your equipment to be exposed to water or high moisture environments. If exposed to a liquid, remove power safely (at the breaker) and send your equipment to be serviced by a qualified technician. THOMSON RD1000 / RD1002 Page 5 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 6 BLANK PAGE Page 6 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 7: Table Of Contents

    4.15 System Information ........................73 4.16 Feature Licensing ......................... 77 Section 5 – Using the Web Client to Configure the unit..................78 THOMSON RD1000 / RD1002 Page 7 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 8 Appendix C.i. DVB-S2 advanced features – Software Option NRD00S02AA ........107 Appendix D – Coordinated Universal Time ..................... 108 Appendix E – Open Source Software ......................109 Page 8 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 9: Overview

    Overview The RD1000 or RD1002 is extremely versatile piece of equipment and in order to further expand its capabilities its internal setup can be factory configured in a number of different ways. The RD1000 is a mono channel receiver – descrambler.

  • Page 10: Ordering References

    NRD00H10AA Hardware Option. General Purpose In and Out Software Option; DVB-S2 Advanced modes (16APSK, 32APSK, ISI filtering, DVB-S2 adv modes NRD00S02AA VCM) Page 10 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 11: Section 1 - Getting Started

    Section 1 – Getting Started Introduction This section includes the following topics: Installation ............................. 12 Quick Start Guide .......................... 13 Maintenance ..........................13 THOMSON RD1000 / RD1002 Page 11 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...

  • Page 12: Installation

    3. Slide the unit into position in the rack. 4. Secure the unit to the rack by installing the four supplied screws through the front mounting holes and tightening. Page 12 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 13: Quick Start Guide

    This filter is removed easily, for cleaning, by opening the door on the front right side of the unit and removing the filter. THOMSON RD1000 / RD1002 Page 13 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 14 BLANK PAGE Page 14 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 15: Section 2 - Controls And Configuration

    Input Error Logic ........................... 17 Temperature Error Logic ....................... 17 Fan Error Logic ..........................17 SNMP Traps ..........................17 Input/Output Slot Organization ...................... 17 THOMSON RD1000 / RD1002 Page 15 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...

  • Page 16: Front Of Unit

    Locally the unit’s status can be checked by visually looking at the INPUT LED and the ERROR LED on the front panel, then use the “Error List” under the button to pinpoint the error. Page 16 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 17: Input Error Logic

    The bottom row of slots is numbered 1-1 through 1-4 (left to right). The top row is numbered 2-1 through 2-4 as shown. THOMSON RD1000 / RD1002 Page 17 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 18 BLANK PAGE Page 18 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 19: Section 3 - Option Cards Overview

    CAM Decryption – Basic feature ....................21 Dual MPEG over IP Input/ UDP Output – Option NRD00H05AA ........... 22 Advanced Satellite Features – Option NRD00S02AA ..............22 THOMSON RD1000 / RD1002 Page 19 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 20 3.6 CAM Decryption – Basic feature 3.7 Dual MPEG over IP Input/ UDP Output – Option NRD00H05AA 3.8 Advanced Satellite Features – Option NRD00S02AA Page 20 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 21: 8Vsb/Qam Receiver - Option Nrd00Hcsaa

    In a single channel configuration, the two CAM slot are automatically daisy chained. It allows supporting up to two CAS systems per incoming Transport Stream. In dual channels configuration, a CAM slot is allocated to each channel. THOMSON RD1000 / RD1002 Page 21 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 22: Dual Mpeg Over Ip Input/ Udp Output - Option Nrd00H05Aa

    If the NRD00S02AA option is installed, the”Multistream” settings will be available and the NRD00H12AB card will be able to receive multistream transport streams, VCM, 16APSK modulation and 32APSK modulation. Page 22 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 23: Section 4 - Using The Front Panel To Configure The Unit

    Panel Lock ............................ 67 4.13 SNMP Configuration ........................69 4.14 SMPTE 333M Configuration ......................72 4.15 System Information ........................73 4.16 Feature Licensing ......................... 77 THOMSON RD1000 / RD1002 Page 23 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...

  • Page 24: Input Option - Active Input And Backup Configuration Selection

     Input to change the Active Input selection, then press the Active Input: button to save the selection. ► ASI/310M 2-3 (P) Page 24 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 25 ► MPEG/IP 1-3 use as the Backup and then press the button to save the selection. THOMSON RD1000 / RD1002 Page 25 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 26 ►Switchover:05 secs timeout (3 – 45 seconds), then press the button to save the selection. Page 26 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 27: 8Vsb/Qam Receiver - Option Nrd00Hcsaa

    Status screen for MPEG/IP 2-3 ►VSB/QAM 1-4 the VSB/QAM card. 5. Press the button again to display the Edit screen for the VSB/QAM card. THOMSON RD1000 / RD1002 Page 27 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 28 “Error” LED to illuminate on the front panel, a description of the error will be shown in the “Active Errors” menu under the button, and an entry will be logged in the event log. Page 28 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 29 VSB/QAM 1-4 Counters” then press the button. Low:+00dBmV MER:10dB 4. Press the button again to reset the FEC error counters. ►Reset Counters THOMSON RD1000 / RD1002 Page 29 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...

  • Page 30: Serial Transport Stream Input/Output (Dvb-Asi/Smpte 310M) - Option Nrd00H02Aa

    Status screen for the ASI/310M card. 5. Press the button again to display the Edit screen for the ASI/310M card. Page 30 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 31: Input Type

    ASI/310M 2-3 ►Type:ASI 2. Use the buttons to select the appropriate input (“ASI”, “310M”), then press the button to save the selection. THOMSON RD1000 / RD1002 Page 31 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...

  • Page 32: Gpio Module - Option Nrd00H10Aa

    Open-Collector Output #2 Open-Collector Output #3 Relay Contact #1 Relay Contact #1 Relay Contact #2 Relay Contact #2 Relay Contact #3 Relay Contact #3 Page 32 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 33: Dual Input Cofdm Receiver - Option Nrd00H04Aa

    Edit screen for the COFDM card. Source This option will select which input, on the back of the card, will be active. THOMSON RD1000 / RD1002 Page 33 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 34 These settings correspond to the input on “Source B.” Center Frequency B The COFDM card tunes to the center frequency of the channel to tune to. Page 34 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 35 Channel BW:8 MHz 2. Use the buttons to change the spectrum ► Spectrum:Normal (“Normal”, “Inverted”), then press the button to save the selection. THOMSON RD1000 / RD1002 Page 35 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...

  • Page 36: Quad Input Dvb-S/Dvb-S2 Receiver With Lnb - Option Nrd00H12Ab

    Status screen for the DVB-S/S2 card. 5. Press the button again to display the Edit screen for the DVB-S/S2 card. Page 36 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 37: Source Settings

    When licensed, the “Multistream” settings will be available and the NRD00H12AB option card will be able to receive multistream transport streams, VCM, 16APSK modulation and 32APSK modulation. THOMSON RD1000 / RD1002 Page 37 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 38: Lnb Power

    LNB power is configurable separately for each Source input, but is only supplied to the active source. In addition, the power is used to transmit the polarization to the LNB. Page 38 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 39: Khz Tone

    05150MHz”, 09750MHz”, “10600MHz”, “10750MHz” or Sat Freq:00950 Mhz “11250MHz” as the “LO Offset” setting, then press the button to save the setting. THOMSON RD1000 / RD1002 Page 39 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 40 (1 ►Sym Rt:27.000000MSps MSps – 45 MSps). 3. Then press the button to save the selection. Page 40 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 41: Ca Decryption - Basic Feature

    CAM Operation Mode: (“Enabled” or “Disabled”), then press the Use Decoded PIDs button to save the selection. THOMSON RD1000 / RD1002 Page 41 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 42 ► SVC:816 ABCHE Svc:892 CBCMH 3. The video and audio PIDs that are available for that Service in the PMT are listed. Page 42 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 43 “♦” or “◊”. Note: When the Service no longer has PIDs that are not in the PMT, it will not be listed as a “*”’ed Service. THOMSON RD1000 / RD1002 Page 43 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 44 ►Encrypt Session Word and use the buttons to enter the encrypted 0x0000000000000000 session word, then press the button to save the selection. Page 44 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 45 ►Injected ID and use the buttons to enter the injected ID, 0x00000000000000 then press the button to save the selection. THOMSON RD1000 / RD1002 Page 45 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...

  • Page 46: Dual Mpeg Over Ip Input/ Udp Output - Option Nrd00H05Aa

    10.0.0.51 Subnet Mask and use the buttons to change the Subnet ► 255.000.000.000 Mask, then press the button to save the selection. Page 46 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 47 Status screen for the MPEG/IP card. 5. Press the button again to display the Edit screen for the MPEG/IP card. THOMSON RD1000 / RD1002 Page 47 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 48 This is done because the Primary restore uses the TS Presence (“TrigTSErr”) to detect when the primary is present, and unstable operation could take place if the switchover triggers are not consistent. Page 48 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 49 1. Use the buttons to move the cursor to   MPEG/IP 1-4 “Receive 1” then press the button. Timeout:0.5s ►Receive 1 Receive 2 THOMSON RD1000 / RD1002 Page 49 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 50 ►Dest Port:01050 buttons to change the port (0 – FEC:Disable and use the 65536), then press the button to save the selection. Page 50 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 51 "IGMP V3 include <IP multicast source address> the unit will take only the IP packets coming from the indicated source address, thus eliminating the garbling problem. THOMSON RD1000 / RD1002 Page 51 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 52 IP address, then press the button to save the 000.000.000.000 selection. Clear All Note: A maximum of 64 IP addresses may be added to the list. Page 52 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 53 Receive:Enable 5. Choose the physical connector using the ►Phys Conn:Port 1 Ip:239.192.0.1 buttons (“Port 1” or “Port 2”) then press the button. THOMSON RD1000 / RD1002 Page 53 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 54 FEC:Disable buttons to select “Enable” or 2. Use the ►SSRC:Disable “Disable”, then press the SSRC Filt:0x00000000 button to save the selection. Page 54 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 55 MPEG/IP 1-4 2 “IGMP V3 Src Filter”, then press the button to access SSRC Filt:0x00000000 the Edit screen. Buffer:0100kb ►IGMP V3 Src Filter THOMSON RD1000 / RD1002 Page 55 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 56 “Edit” or 2. Use the   MPEG/IP 1-4 2 ←→ “Remove”, then press the button. Filter Mode:Include Edit Remove Add IP Page 56 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 57 ►MPEG/IP 1-4 3. Press the button once to display the selection screen for “Transmit 1” and “Transmit 2” of the MPEG/IP card. THOMSON RD1000 / RD1002 Page 57 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 58 Source Port:01030 destination port (1025 – 65536), then press the button to save the selection. Page 58 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 59 4. Use the buttons to change the selection to, Phys Conn:Port 1 “Enabled”, then press the IP:239.192.0.1 button to save the selection. THOMSON RD1000 / RD1002 Page 59 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 60 DiffServ:Default number of packets per frame (1 –7), then press the button to save the selection. Page 60 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 61 (“Default”, “AF11”, “AF12”, Packets/Ip:7 “AF13”, “AF21”, “AF22”, “AF23”, “AF31”, “AF32”, ►DiffServ:Default “AF33”, “AF41”, “AF42”, “AF43”, “EF”), then press the button to save the selection. THOMSON RD1000 / RD1002 Page 61 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...

  • Page 62: Active Errors

    Page 62 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 63: Event Log

    “current”, “day 1 log”, “day 2 log” or “day 3 ►current log”, then press the button. day 1 log day 2 log THOMSON RD1000 / RD1002 Page 63 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 64 2. The log selected will be listed followed by “has been cleared!” current has been cleared! Page 64 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 65: Network Setup

    DHCP The unit can be configured to use DHCP to obtain an IP address/Subnet Mask/Gateway. THOMSON RD1000 / RD1002 Page 65 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 66 Note: It may take up to a minute for the unit to obtain an IP address. During this time the unit will display a “busy” message next to DHCP. Page 66 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 67: Panel Lock

     Menu buttons to move the cursor to “Unlock 2. Use the Event Log Network Panel” then press the button. ►Unlock Panel THOMSON RD1000 / RD1002 Page 67 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 68 ←→ then the buttons to move to the next character. Enter Password 4. Press the button to unlock the front panel. ---------- Page 68 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 69: Snmp Configuration

    Ip1:10.0.15.10 then the buttons to change the Port1 value, ►Port1:0162 then press the button to save the selection. THOMSON RD1000 / RD1002 Page 69 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 70 Ip1:10.0.15.10 then the buttons to change the Port1 value, ►Port1:0162 then press the button to save the selection. Page 70 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 71 Ip2:0.0.0.0 then the buttons to change the Port2 value, ►Port2:0162 then press the button to save the selection. THOMSON RD1000 / RD1002 Page 71 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...

  • Page 72: Smpte 333M Configuration

     SMPTE 333M 4. Use the buttons to enable or disable SMPTE ►333M:Enabled 333M, then press the button to save the selection. Page 72 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 73: System Information

    “Profiles” 1. Use the   System then press the button. Versions ►Profiles Hardware THOMSON RD1000 / RD1002 Page 73 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 74  the details. Press the button to return to the Hardware Controller list. P/N: Assembly 3 Page 74 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 75 “Check 1. Use the   System Time Time:” then press the button. Auto Update:Off ►Check Time: Manual Time Entry: THOMSON RD1000 / RD1002 Page 75 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 76 Check Time: to the next character. ►Month:01 4. Press the button to save the value and to move to the next entry. Page 76 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 77: Feature Licensing

    Note: If you incorrectly enter the license key, you can go back and try again. Note: A reboot will be required when the unit has finished saving the settings. THOMSON RD1000 / RD1002 Page 77 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 78: Section 5 - Using The Web Client To Configure The Unit

    Web Passwords ..........................90 Reset Unit ............................. 90 Software Updates ......................... 91 Diagnostics ........................... 91 5.10 About ............................92 5.11 Feature Licensing ......................... 92 Page 78 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 79: Login

    “Error List.” detailed explanation is provided by clicking on the Refer to Appendix B for a more detailed explanation of the individual errors. THOMSON RD1000 / RD1002 Page 79 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 80: Configuration

    The current settings for any of the input cards can be verified by clicking on the button next to the desired input. Page 80 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 81: Psip Information

    The ATSC table grouping includes displaying the MGT, TVCT, EIT or STT. Click the tabs at the top of the window to view the corresponding table. THOMSON RD1000 / RD1002 Page 81 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...

  • Page 82: Unit

    (i.e. red circle) this section will give a more detailed description of the specific error along with the location of the item that is producing the error. Page 82 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 83: Event Logging

    Enter the IP address of the Time Server in the space provided. 4. Then click the button to save the changes. THOMSON RD1000 / RD1002 Page 83 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...

  • Page 84: Snmp Mib Modules

    5.4.4 SNMP MIB Modules In order to control the unit using SNMP, the MIB modules need to be downloaded. The THOMSON specific MIB modules are displayed under the “Admin/SNMP MIB Modules” heading. The generic MIB modules can be viewed and downloaded by clicking on the “View All MIB Modules…” hyperlink. That will bring up a new window displaying all the generic MIB modules.

  • Page 85: Profiles

    Up to 24 different profiles can be stored on an unit. New profiles can be added to the unit by configuring the various settings of the unit, then “saving” this profile and giving it a name. New profiles can also be added to an THOMSON RD1000 / RD1002 Page 85 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 86: Saving A Profile

    4. Click the button after the profile has been successfully saved. Note: The profile name should be no more than 15 characters long. Page 86 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 87: Deleting A Profile

    1. Use the drop down menu to select the profile to be renamed. 2. Click the button. THOMSON RD1000 / RD1002 Page 87 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...

  • Page 88: Applying A Saved Profile

    To download a profile from the unit, use the following steps: Page 88 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 89: Uploading A Saved Profile

    Select the file and then click 3. The file path box should now be filled in with the location of the profile. Click the button. THOMSON RD1000 / RD1002 Page 89 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...

  • Page 90: Web Passwords

    4. Once the unit has restarted the web client will be redirected back to the login page for the unit. Page 90 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 91: Software Updates

    Software Updates Occasionally THOMSON will release new software for the unit to provide new features and bug fixes. NEVER PERFORM A SOFTWARE UPDATE UNLESS INSTRUCTED TO DO SO BY A THOMSON REPRESENTATIVE. If an update is warranted, the representative will provide the software and instructions for the update.

  • Page 92: About

    5.10 About Under the tab, there are no user definable parameters but there is information about how to contact THOMSON, as well as information about the software versions on the unit, and which option cards are installed. 5.11 Feature Licensing The Web Client is the easiest way to upgrade the licensing on the unit.

  • Page 93: Section 6 - Appendices

    Appendix C.i. DVB-S2 advanced features – Software Option NRD00S02AA ........107 Appendix D – Coordinated Universal Time ..................... 108 Appendix E – Open Source Software ......................109 THOMSON RD1000 / RD1002 Page 93 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 94: Appendix A - Acronyms And Glossary

    High level: A range of allowed picture parameters defined by the MPEG-2 video coding specification which corresponds to high definition television. I/O: Input/Output IP: Internet Protocol LED: Light Emitting Diode LNB: Low-Noise Block MAC: Medium Access Control Page 94 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 95 RS-232: Recommended Standard. A standard for serial binary data interconnection. RU: Rack Unit RW: Read/Write SD: Standard Definition SDI: Serial Digital Interface SFP: Small Form-Factor Pluggable THOMSON RD1000 / RD1002 Page 95 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 96 VCT: Virtual Channel Table. Used in reference to either TVCT or CVCT. XLR: Cannon “X” series connector, with a Latch, and Rubber around the contacts. YPbPr: Component Red, Green, Blue Page 96 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 97: Appendix B - Error/Event List

    AFD Code Not Present Event – The unit is configured to use or embed the AFD code in the VANC, and the AFD code is not present with the input video. THOMSON RD1000 / RD1002 Page 97 Receiver Descrambler - User Manual (release 7.3.1)
  • Page 98 Temperature Error - The internal temperature has exceeded 70 Celsius.  DPI Stream Type Locked Error- User is not licensed to decode the selected stream. Page 98 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 99: Appendix C - Specifications

    Typical 2 Receivers with 8 option cards: 1.46 A / 70 W Connector: Tyco Amplimite 109 series 3C3 Line Cord: Detachable, 5 ½ foot THOMSON RD1000 / RD1002 Page 99 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 100 ICES-003 EN 55022 EN 55024 EN 61000-3-2 EN 61000-3.3 UL 60065 CAN/CSA 60065-03 (Canada) IEC 60065 :2001 (International) EN 60065 :2002 (Europe) Page 100 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 101: Appendix C.b. Cam Decryption - Basic Feature

    Mode 1 and Mode E (Injected ID only No Buried ID) Max TS Bit Rate: 120 Mbps total, split between both RDSs Capability: 1 BISS Word per RD1000 1 BISS Word per RDS for RD1002 THOMSON RD1000 / RD1002 Page 101 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 102: Appendix C.c. 8Vsb/Qam Receiver - Option Nrd00Hcsaa

    64 and 256 De-interleaver: I=1-128, J=128/1 Nyquist Roll Off (Alpha): 12%, 18% 8VSB - Standard: ATSC A/53E Decoding Levels: Nyquist Roll Off (Alpha): 11.5% Page 102 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 103: Appendix C.d. Serial Ts Input/Output (Dvb-Asi /Smpte 310M) - Option Nrd00H02Aa

    310M Serial TS Input / Output - Number of 310M Inputs: Number of 310M Outputs: 1 (non loop-through) Standard: SMPTE 310M Data Bit Rate: 19.39 Mbps, synchronous THOMSON RD1000 / RD1002 Page 103 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...

  • Page 104: Appendix C.e. Gpio Module - Option Nrd00H10Aa

    1/2, 2/3, 3/4, 5/6, 7/8 Constellation: QPSK, QAM16, QAM64 Connector: 2-F-81 Type, panel mount, female Impedance: 75 Ohms Return Loss: >9 dB Page 104 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 105: Appendix C.g. Quad Input Dvb-S/Dvb-S2 Receiver With Lnb - Option Nrd00H12Ab

    3/5, 2/3, 3/4, 5/6, 8/9, 9/10 Symbol rate: 1-45 MSym/s PER: Observable via front panel and web interface Pilot: On/Off Auto Detect THOMSON RD1000 / RD1002 Page 105 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...

  • Page 106: Appendix C.h. Dual Input Mpeg Over Ip Receiver/Udp Output - Option Nrd00H05Aa

    1 – 160 Mbps Bitrate Range: Packets/IP Frame: 1-7 MPEG Packets/IP Frame 2 Mirrored TS – Unicast and/or Multicast Number of Outputs: Page 106 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 107: Appendix C.i. Dvb-S2 Advanced Features - Software Option Nrd00S02Aa

    1-45 MSym/s Pilot: On/Off Auto Detect Multistream Support DVB-S2 multi-stream input. One incoming TS could be selected based on Stream Identifier (ISI) THOMSON RD1000 / RD1002 Page 107 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...

  • Page 108: Appendix D - Coordinated Universal Time

    05:45 Kathmandu 06:00 Amaty 06:30 Rangoon 07:00 Bangkok 08:00 Beijing 09:00 Osaka 09:30 Adelaide 10:00 Brisbane 11:00 Magadan 12:00 Auckland 13:00 Nuku Page 108 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

  • Page 109: Appendix E - Open Source Software

    Copyright (c) 2001, 2006, IBM, Sony, All rights reserved. Foundation. Toshiba. Copyright (c) 1999, IBM Corporation. All rights reserved. All rights reserved. THOMSON RD1000 / RD1002 Page 109 Receiver Descrambler - User Manual (release 7.3.1) Edition 2 – October 2010...
  • Page 110 BLANK PAGE Page 110 THOMSON RD1000 / RD1002 Edition 2 – October 2010 Receiver Descrambler - User Manual (release 7.3.1)

This manual is also suitable for:
