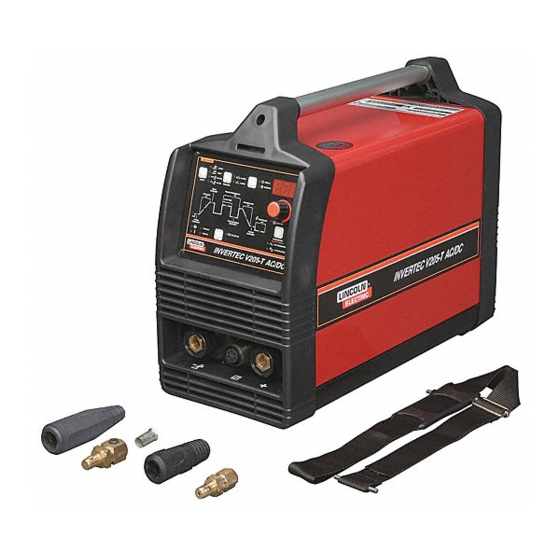

INVERTEC
V205-T AC/DC & V305-T AC/DC
OPERATOR'S MANUAL
MANUALE OPERATIVO
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL D'UTILISATION
BRUKSANVISNING OG DELELISTE
GEBRUIKSAANWIJZING
BRUKSANVISNING
INSTRUKCJA OBSŁUGI
KÄYTTÖOHJE
LINCOLN ELECTRIC ITALIA S.r.l
Via Fratelli Canepa 8, 16010 Serrà Riccò (GE), Italia
www.lincolnelectric.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INVERTEC V205-T and is the answer not in the manual?

Questions and answers

Related Manuals for Lincoln Electric INVERTEC V205-T

Summary of Contents for Lincoln Electric INVERTEC V205-T

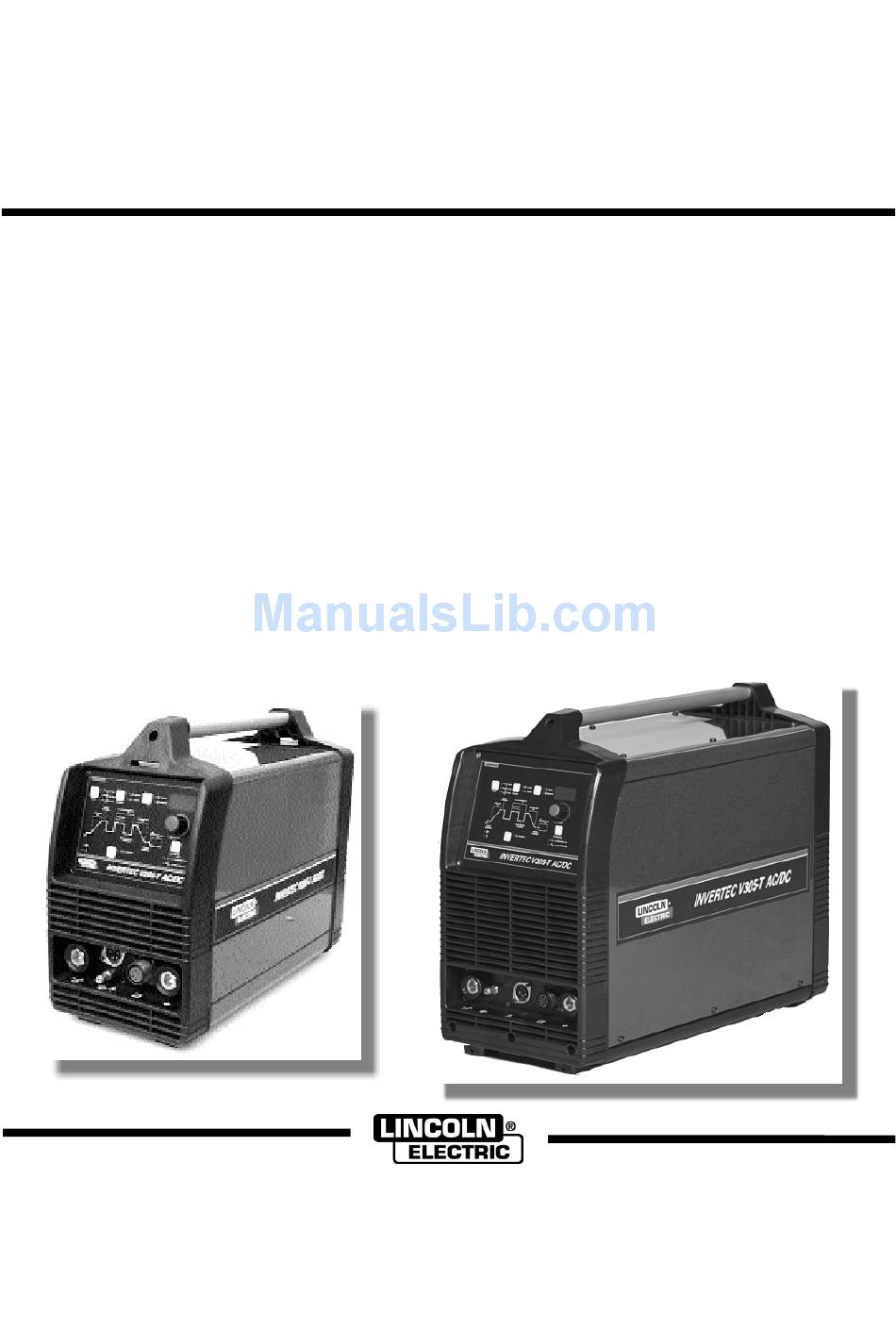

  • Page 1 Rev. 3 ® INVERTEC V205-T AC/DC & V305-T AC/DC OPERATOR’S MANUAL MANUALE OPERATIVO BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'UTILISATION BRUKSANVISNING OG DELELISTE GEBRUIKSAANWIJZING BRUKSANVISNING INSTRUKCJA OBSŁUGI KÄYTTÖOHJE LINCOLN ELECTRIC ITALIA S.r.l Via Fratelli Canepa 8, 16010 Serrà Riccò (GE), Italia www.lincolnelectric.eu...
  • Page 2 été conçu en conformité avec les normes: og er produsert og testet iht. følgende standarder: EN 60974-1, EN 60974-10 (2002) Dario Gatti European Engineering Director Machines LINCOLN ELECTRIC ITALIA S.r.l., Via Fratelli Canepa 8, 16010 Serra Riccò (GE), Italia 12/05...
  • Page 3 été conçu en conformité avec les normes: og er produsert og testet iht. følgende standarder: EN 60974-1, EN 60974-10 (2002) Dario Gatti European Engineering Director Machines LINCOLN ELECTRIC ITALIA S.r.l., Via Fratelli Canepa 8, 16010 Serra Riccò (GE), Italia 12/05...
  • Page 4 07/06 Do not dispose of electrical equipment together with normal waste! In observance of European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) and its implementation in accordance with national law, electrical equipment that has reached the end of its life must be collected separately and returned to an environmentally compatible recycling facility.
  • Page 5 Per ogni futuro riferimento, compilare la tabella sottostante con le informazioni di identificazione equipaggiamento. Modello, Codice (Code) e Matricola (Serial Number) sono reperibili sulla targa dati della macchina. VIELEN DANK! Dass Sie sich für ein QUALITÄTSPRODUKT von Lincoln Electric entschieden haben. •...
  • Page 6 Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation.

  • Page 7: Installation And Operator Instructions

    EQUIPMENT WEIGHT OVER 30kg: Move this equipment with care and with the help of another person. Lifting may be dangerous for your physical health. CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the correct shielding gas for the process used and properly operating regulators designed for the gas and pressure used.

  • Page 8: Remote Control Connection

    source ON and allow it to cool. Or, in the case of a Connect the gas hose from the supply voltage error, press any button to resume TIG torch to the gas connector (B) operation. on the front of the machine. If necessary, an extra gas connector V205-T AC/DC only: L3, L4 - VRD (Voltage Reduction for the fitting on the front of the...
  • Page 9 AC Frequency If the pushbutton S4 is held down for more than 2 Reset of all Parameters DC TIG Strike Current 6-200A seconds the AC frequency (Hz) parameter is selected DC TIG Start Polarity and can be adjusted using the Current/Function Control 0 = DC- (F1).
  • Page 10 button. The specific sequences of operation for these released the output will turn OFF and the postflow time two trigger modes are explained below. will start. 2-Step TIG Sequence The default setting is restart disabled. Restart enabled can be selected in the set-up menu. With the 2-step trigger mode and a TIG welding mode selected, the following welding sequence will occur.

  • Page 11: Maintenance

    Lincoln Electric. Before installing the machine, the operator must check the work area for any devices that may malfunction because of electromagnetic disturbances.

  • Page 12: Technical Specifications

    Consider the following guidelines to reduce electromagnetic emissions from the machine. • Connect the machine to the input supply according to this manual. If disturbances occur if may be necessary to take additional precautions such as filtering the input supply. •...
