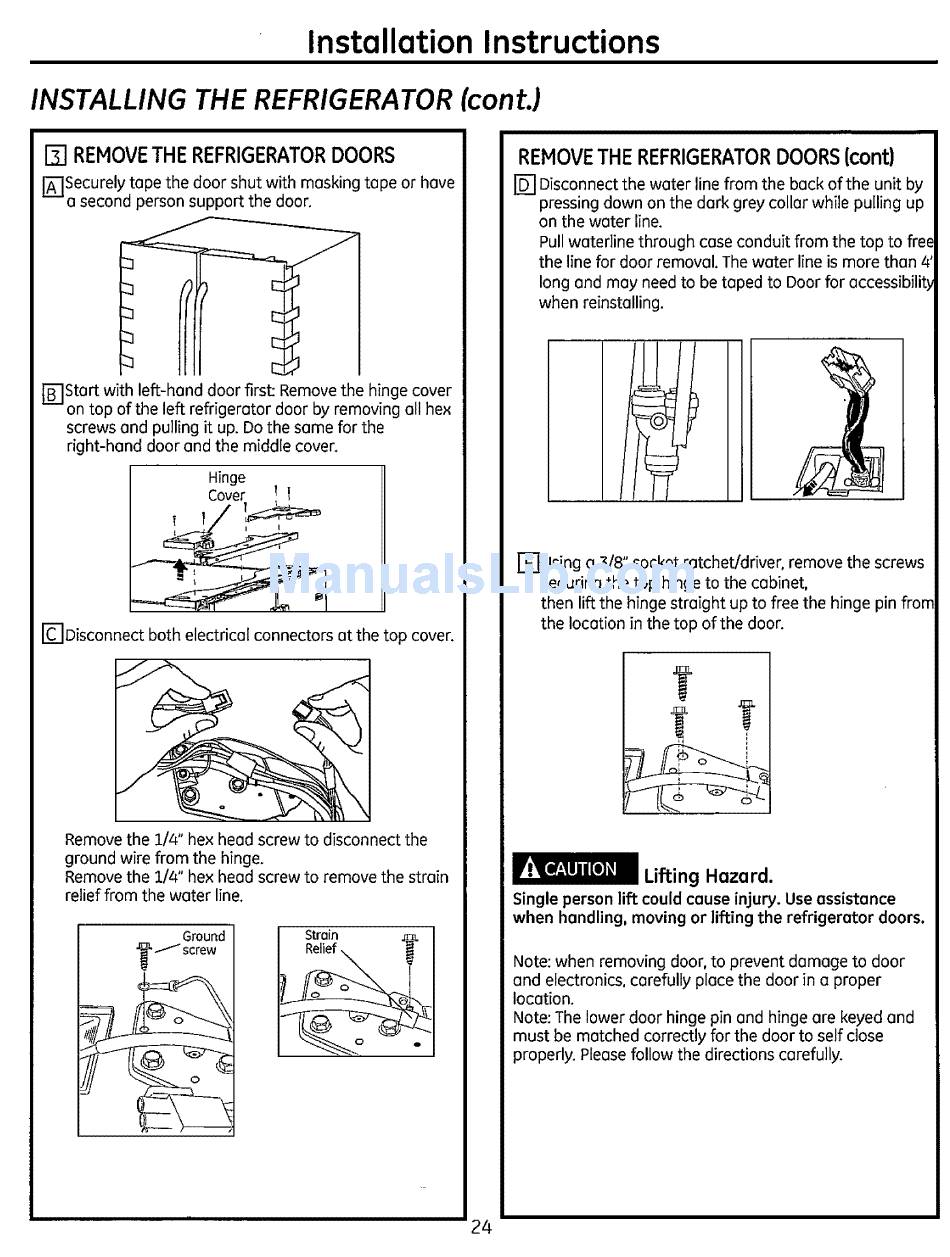

Installation Instructions
INSTALLING THE REFRIGERATOR
(cont.)
[] REMOVE THE REFRIGERATOR DOORS
[_Securely tope the door shut with masking tope or hove
o second person support the door.
[B"lStortwith left-hand door first: Remove the hinge cover
on top of the left refrigerator door by removing oil hex
screws and pulling it up. Do the some for the
right-hand door and the middEecover.
Hinge
I I
r_Disconnect both electrical connectors at the top cover.
Remove the 1/4" hex heod screw to disconnect the
ground wire from the hinge.
Remove the 1/4" hex head screw to remove the strain
relief from the woter line.
Ground
/screw
5 _
Strain
Relief
i ii1| i1_
REMOVE THE REFRIGERATOR DOORS {cant)
I-D-I Disconnect t hewaterline f romthebackoftheunit by
pressing d own on thedarkgreycollar while pulling up
on thewaterline.
Pull w aterline throughcaseconduit from thetoptofre_
theline f or doorremoval. Thewater line i smore than4'
longand may need to be topedto Doorforoccessibilit
when reinstalling.
r_using o 3/8" socket rotchet/drivero remove the screws
securing the top hinge to the cabinet,
then lift the hinge straight up to free the hinge pin frorr
the location in the top of the door.
Lifting Hozord.
Single person lift could couse injury. Use assistonce
when hondling, moving or lifting the refrigerotor doors.
Note: when removing door, to prevent damage to door
and electronics, carefully place the door in a proper
location.
Note: The lower door hinge pin and hinge ore keyed and
must be matched correctly for the door to self close
properly. Please follow the directions carefully.
" 24
