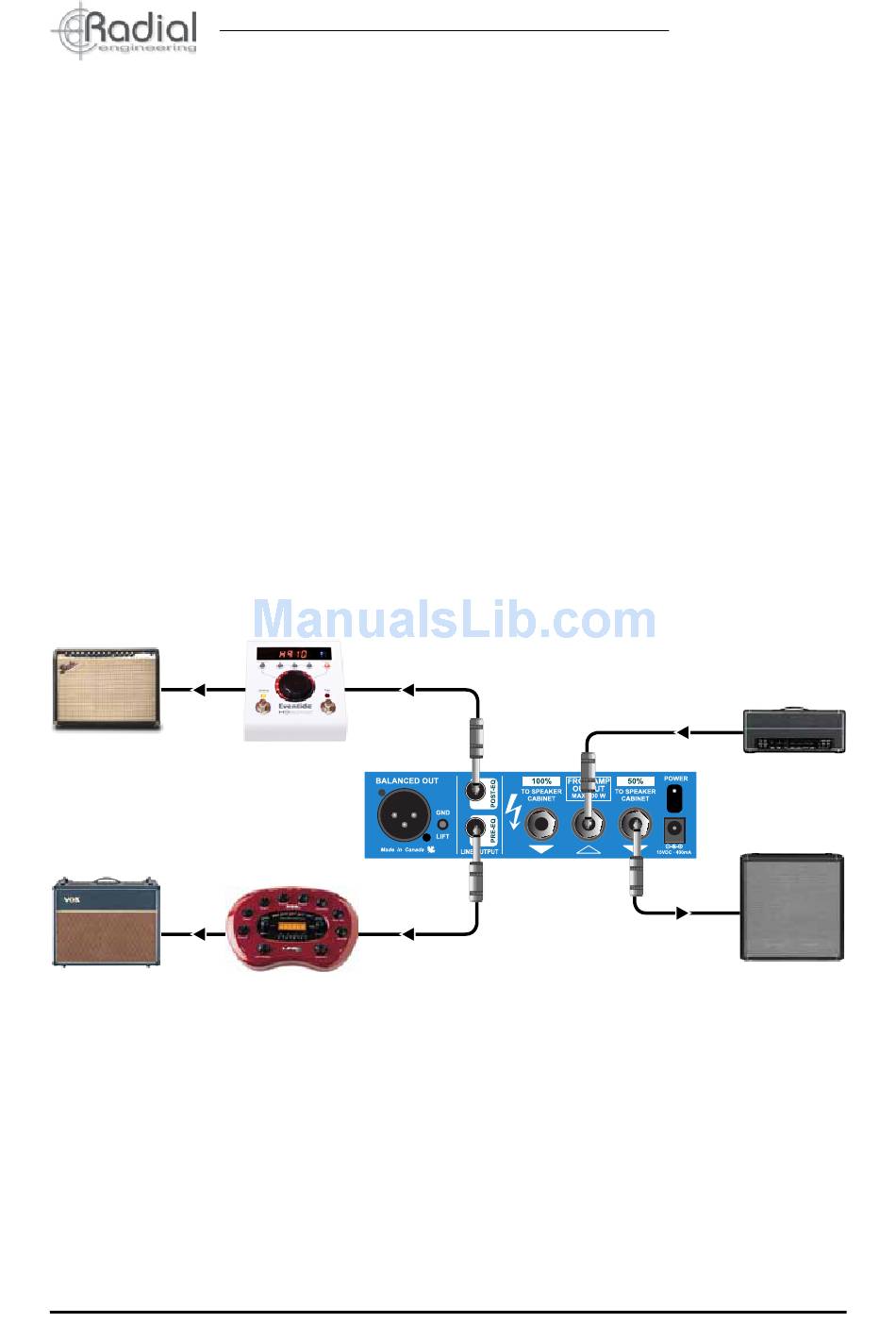

USING THE JDx AUx OUTPUTS
There are two additional ¼" unbalanced outputs on the rear panel. These provide connectivity
options that can open the door to new sounds or creative ideas. A dedicated front panel level
control lets you adjust the signal for both outputs to suit.
• Direct Output (pre-JDX)
This takes the original 'dry' sound from your guitar amp head and attenuates it so that it
can be used to drive another guitar amp, digital modeling device, effects pedals, or maybe
a JDI direct box so that you can then process the sound in your digital workstation or
reamp it in the future.
• Wet Output (post-JDX)
This parallel output produces the same processed or 'wet' signal as the JDX – only here
it is unbalanced. This means that the front panel EQ will also affect this output. It can be
used to feed effects pedals, digital modeler or maybe some other innovative studio device.
Radial Engineering Ltd.
POST EQ
PRE EQ
7
True to the Music
Headload Prodigy™ Load Box
AMP
CAB
