Philips GC8260 Service Manual

Philips GC8260 Service Manual

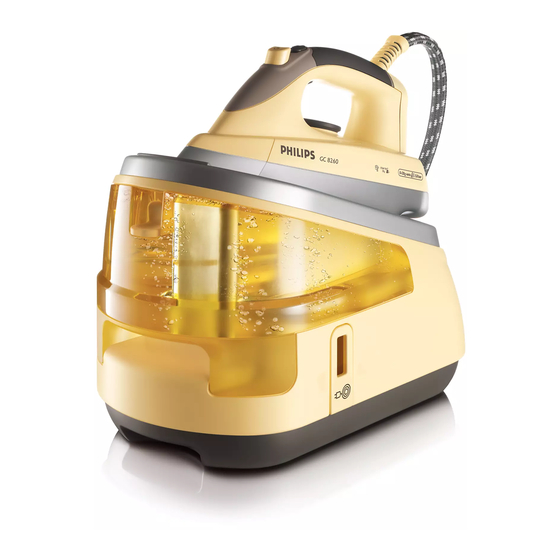

Boiler steam iron
Hide thumbs Also See for GC8260:

Advertisement

Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
Features
Iron
- Careeza Soleplate
- Continuous steam in horizontal & vertical position
- Adjustable steam rate up to 120 g/min
- Shot Of Steam up to 130 g/min
- Steam activator lock
- Automatic drip stop
- Soft touch hand grip
- Steam tip for hard-to-reach places
- Steam hose length : 1.7 m
Stand
- Anti-corrosion Inox boiler
- Boiler sensing
: Electronic
- Boiler pressure
: 5.0 bar
- Fast heat-up
: steam ready in 2 mins.
- Cord length
: 2.5 m
- Hose cord storage
- Easy to rinse
- Iron lock for safe storage
- Detachable tank
: 1.4 L
Safety Information
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down as this moment.
Published by Philips Domestic Appliances and Personal Care
07/08
TECHNICAL INFORMATION
Voltage
Frequency
Power
Iron
Boiler
Dimension (F-box)
Weight (with packing)
Water advice
If the tap water in your area is very hard, it is advisable to mix
the tap water with an equal amount of demineralised water.
Careeza soleplate
Scratch resistant, non-stick, easy to clean & very durable.
Fast ironing
Steam ready in 2 minutes & up to 5 bar of steam pressure
penetrating deeper into the fabrics.
Iron lock
Safely store the iron on the stand.
Easy to rinse
The new design of the rinse cap makes it very easy to rinse
the boiler regularly. Simply unscrew the cap and pour out the
"dirty" water into the sink.
No hassle with coins, extra tubes or anything of this sort.
Large detachable water tank
1.4 Liter water tank allows up to 3 hours freedom of ironing
without refi lling.
Printed in the Netherlands
© Copyright reserved
Boiler Steam Iron
GC8260
: 220 - 240 V
: 50 - 60 Hz
: 800 W
: 1200 W
: 350 x 350 x 250 mm (L x W x H)
: 6.4 kg
Subject to modification

Advertisement

loading
Need help?

Need help?

Do you have a question about the GC8260 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Philips GC8260

  • Page 1 1.4 Liter water tank allows up to 3 hours freedom of ironing properly and has to meet the safety requirements as without refi lling. officially laid down as this moment. Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification...
  • Page 2 GC8260 DISASSEMBLY ADVICE - IRON BACKPLATE 1 INLAY 4 SWIVEL 2 STEAM LOCK 6 HOSE CORD ASSY 3 LAMP ASSY 7 Remove Screw A MICROSWITCH ASSY 9 Disassemble BACKPLATE 1 SWITCH HOLDER 10 Remove Screw B1, B2 Remove Clamping plate...
  • Page 3 PARTS LIST - IRON & ELECTRICAL DIAGRAM GC8260 Service code Description 4239 026 22390 Backplate 4239 026 22650 Swivel (Yellow) 4239 021 31840 Hose cord assy 4239 026 21870 Inlay SOS Soft Touch 4239 026 08280 Lamp cover 4239 026 21820...
  • Page 4 EXPLODED VIEW - IRON GC8260 Hose clip (a) Hose clip (b)
  • Page 5: Inlet Tube

    GC8260 DISASSEMBLY ADVICE - STAND & DETACHABLE WATER TANK Remove Connections 9, 10, 11, 12 (Fig 5) TRAY RUBBER (MAIN) 30 Remove Screws M1, M2, M3 (Fig 5) TRAY 33 Disassemble CONTROL BOARD 44 STAND TOP 34 FRONT PANEL PRINTED 37...
  • Page 6 PARTS LIST - STAND & BOILER WIRING DIAGRAM GC8260 Service code Description Service code Description 4239 015 56010 Tray rubber (Main) 4239 015 55980 Boiler rubber support A 4239 015 56030 Tray rubber (Rear) 4239 015 55990 Boiler rubber support B...
  • Page 7 EXPLODED VIEW - STAND GC8260 62 60...
  • Page 8 EXPLODED VIEW & PARTS LIST - DETACHABLE WATER TANK GC8260 Service code Description Service code Description 4239 021 32920 Water tank assy (Yellow) 4239 026 22530 Tank lever (Yellow) 4239 026 22130 Tank washer 4239 010 09330 Spring 4239 015 55390...
  • Page 9: Repair Instructions

    REPAIR INSTRUCTIONS GC8260 - Due to the high wattage of the iron, only the specified cord set must be used. - Should damage be observed on the HOSE-CORD ASSY 3 or CORDSET 55, they must be replaced. Continued usage is not allowed.
