PTN SRG2 User Manual

PC Graphics Distribution Amplifier
USER MANUAL
PTN SRG2 is a high quality VGA signal distribution amplifier with 1 input and 2 outputs. Supporting the HD
resolution, up to 3200×2400@60 (-3dB), 1 GHz（-3dB）full loading.

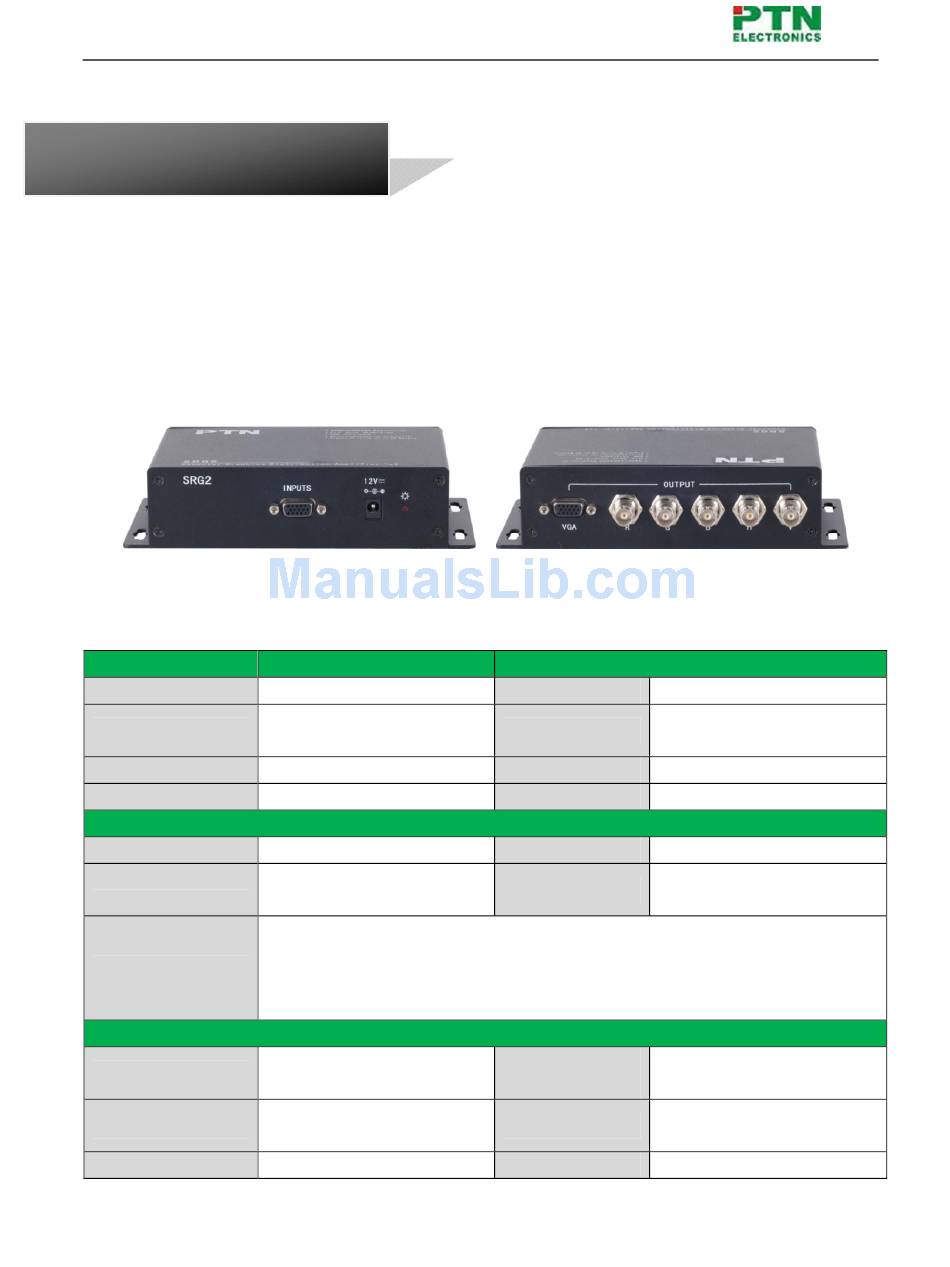

Front Panel
Specification
Video Input
Input
Input Connector
Input Level
Input Impedence
Video General
Return Loss
Max DC
Compensation
Bandwidth
General
Power Supply
Temperature
Case Dimension
PTN electronics Limited
SRG2
VGA Distribution Amplifier 1x2
1 VGA
Female 15 pin HD
0.5 ~ 2.0Vp-p
75Ω
-30dB@5MHz
1.5V
1GHz (-3dB) full loading
3200 x 2400@60 (-3dB)
0~10MHz is +0.1dB to -0.1dB
0~130MHz is +6dB to -0.8dB
100VAC ~ 240VAC, 50/60Hz
-20 ~ +70℃
W160 x H44 x D100 mm
Real Panel
Video Output
Output 1 VGA,1 RGBHV
Female 15 pin HD for VGA;
Output Connector
Female BNC for RGBHV
Output Level 0.5 ~ 2.0Vp-p
Output Impedence 75Ω
DC Compensation +5Mv-0
Crosstalk -50dB@5MHz
Power
5 W
Consumption
Humidity 10% ~ 90%
Product Weight 0.5Kg
www.PTN-electronics.com
