DVI Distribution Amplifier
USER MANUAL
SDV4 is equipped with high-quality 1 input, 4 outputs distribution chip, perfect matching with outside
devices and anti-static function enable the advantages over others in distributing DVI signal.
It is a DVI 1 x 4 splitter with DVI-I connectors, HDCP compliance, HDTV compatible, up to
1920*1200@60Hz.

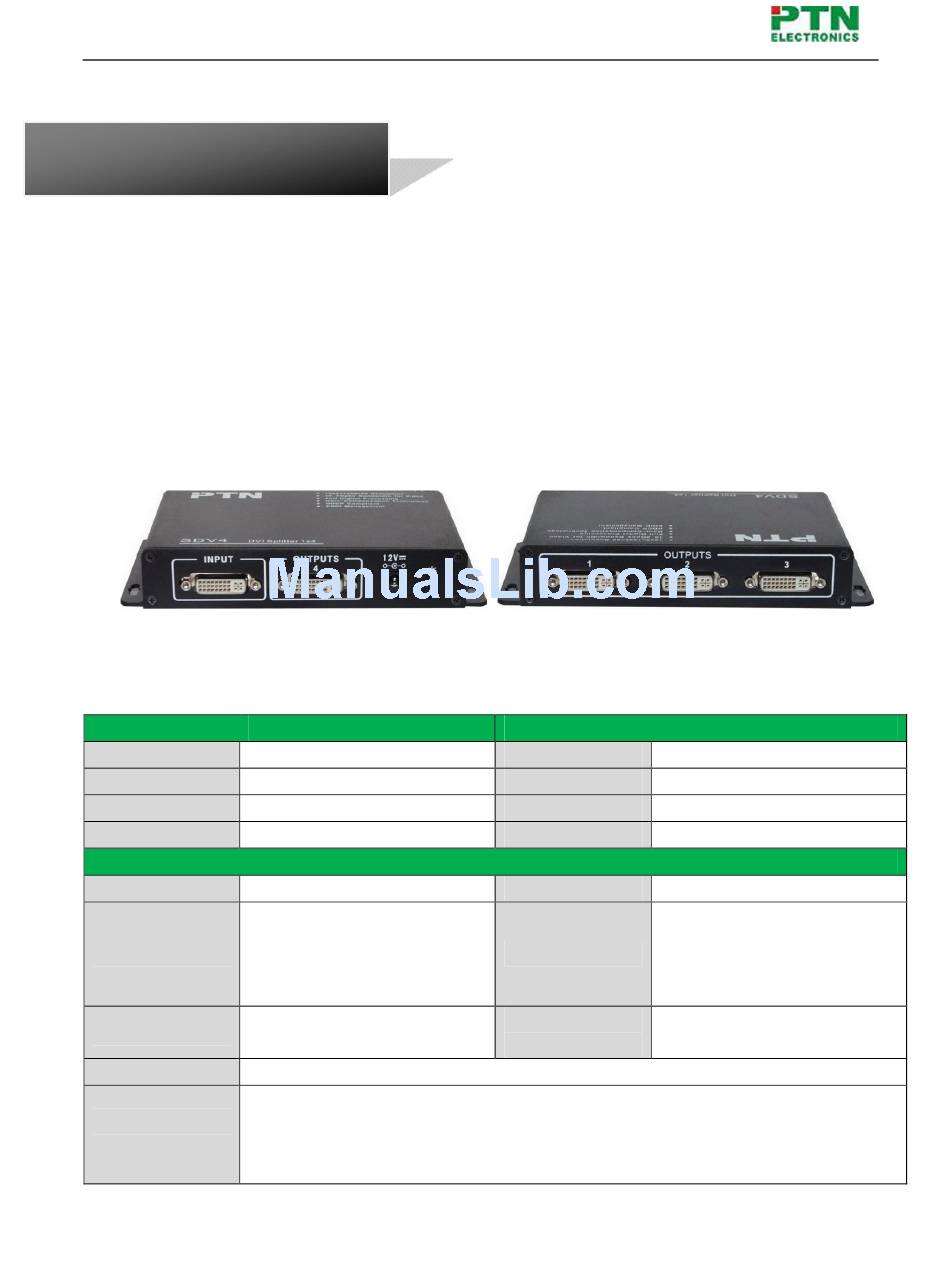

Front Panel
Specification
Video Input
Input
1 DVI
Input Connector
Female DB24+5
Input Level
T.M.D.S. 2.9V/3.3V
Input Impedence
50Ω
Video General
Gain
0 dB
DVI 1.0 standard DVI-D full
digital
Video Signal
T.M.D.S signal
HDMI 1.3
CMRR
>90dB @20Hz~20K Hz
Resolution Range
Up to 1920x1200 or 1080p 60 Hz
Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI
HDCP
1.3 standards. The built-in HDCP management technology can analyze HDCP key, and
Management
realize the handshake internally.
PTN electronics Limited
SDV4
DVI Distribution Amplifier 1x4
Video Output
Output
Output Connector
Output Level
Output Impedence
Bandwidth
Max Time-delay
Maximum Pixel
Clock
Real Panel
4 DVI
Female DB24+5
T.M.D.S. 2.9V/3.3V
50Ω
340 MHz (10.2 Gbit/s)
5nS (±1nS)
165 MHz
www.PTN-electronics.com
Advertisement
Table of Contents
Related Manuals for PTN SDV4
Summary of Contents for PTN SDV4
- Page 1 SDV4 DVI Distribution Amplifier 1x4 SDV4 is equipped with high-quality 1 input, 4 outputs distribution chip, perfect matching with outside devices and anti-static function enable the advantages over others in distributing DVI signal. It is a DVI 1 x 4 splitter with DVI-I connectors, HDCP compliance, HDTV compatible, up to 1920*1200@60Hz.
-
Page 2: System Diagram
EDID/DDC database can analyze these two signals, mix them, and realize the Management handshake of them internally. General Power Power Supply 100VAC ~ 240VAC, 50/60Hz Consumption Temperature Humidity 10% ~ 90% -20 ~ +70℃ Case Dimension W160 x H44 x D100 mm Product Weight 0.5Kg System Diagram PTN electronics Limited www.PTN-electronics.com...
