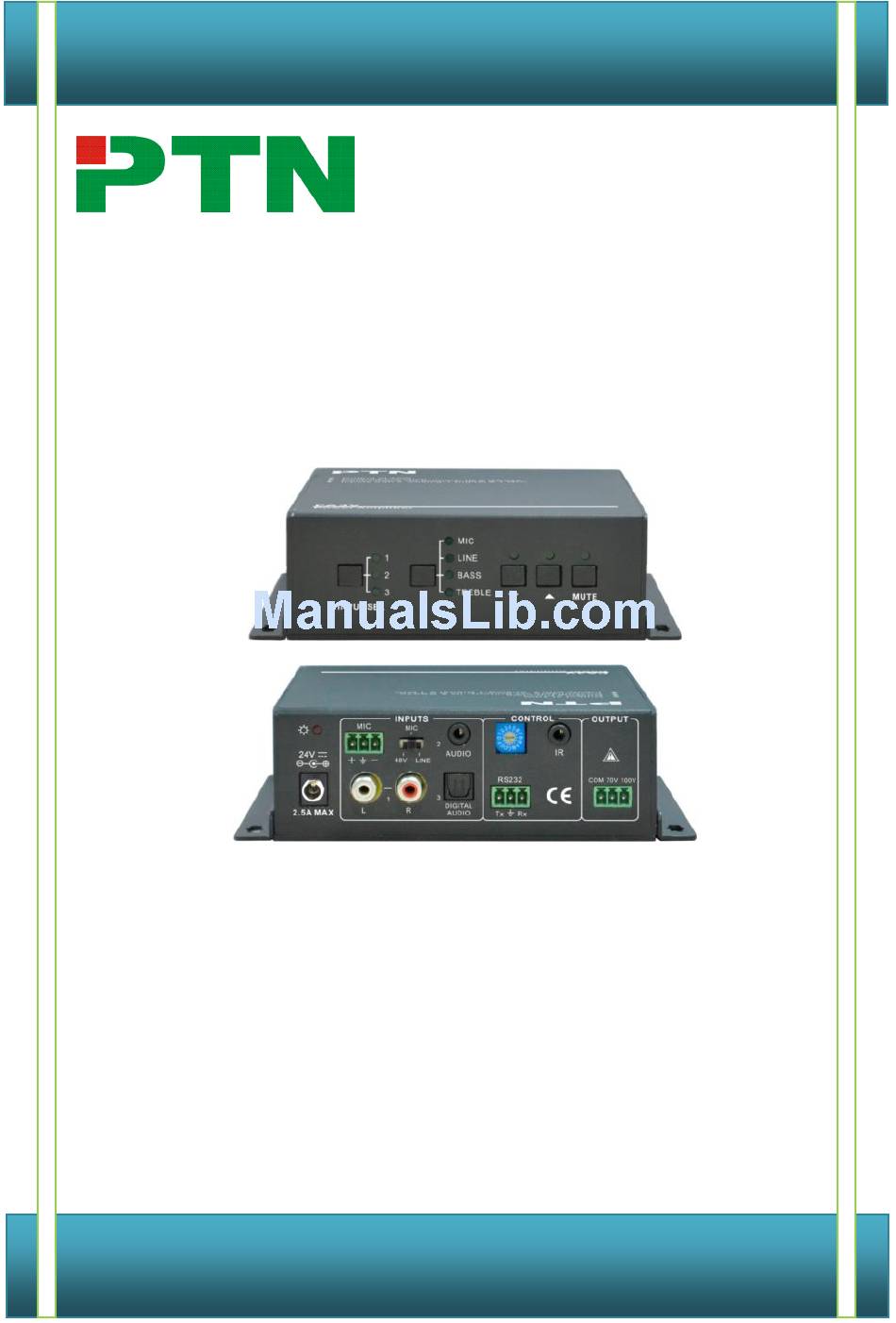

Page 1: User Manual
User Manual PA3V PTN 40W Power Amplifier All Rights Reserved Version: PA3V2013V1.0... - Page 2 Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited.
-
Page 3: Table Of Contents
40W Power Amplifier Table of Contents 1. Introduction ......................... 1 1.1 Introduction to PA3V ..................1 1.2 Features ......................1 1.3 Package Contents ..................... 1 2. Introduction of Product Appearance ................2 2.1 Introduction of Front Panel ................2 2.2 Introduction of Rear Panel ................. 3 3. -
Page 5: Introduction
1. Introduction 1.1 Introduction to PA3V PA3V is a 40 Watt power amplifier (Class-D) with output alternatively at 70V or 100V. It has 2 stereo inputs (1x3.5mm jack for line in, 2xRCA for L&R), 1 digital input & 1 balanced MIC. It is integrated with powerful functions, including ducking function, EQ control, MIC mixer etc, and MIC input supports 3 levels with condenser MIC, dynamic MIC &... -
Page 6: Introduction Of Product Appearance
Adjust the volume of the MIC, Line, or the level of Bass and ② Control Treble with this button To turn up/down or mute the corresponding audio. ▽ Volume : Turn down the volume ③ △ Adjustment : Turn up the volume MUTE: Mute the output PTN Electronics Limited www.PTN-electronics.com... -
Page 7: Introduction Of Rear Panel
3-pole captive screw connector for serial control, it can be ⑨ RS232 connected with PC (Use a 3-pole captive to 9 pin female D connector and serial control software) to control PA3V. To connect with audio output devices, such as speakers (To ⑩ Audio Output select 70V or 100V depends on the input voltage of the speakers). -
Page 8: System Connection
3.3 Audio Signal Connection 3.3.1 Audio Output PA3V supports mono audio output, and the output voltage is 70V or alterative 100V. With its dual-purpose design, it can be applied in different areas. The end COM is for grounding. The amplifier to be connected is mono audio output with a rated power at 40Watt, so PA3V can be connected with several speakers in parallel connection way (Total power mustn’t be more than 40Watt). -
Page 9: Audio Inputs
Figure 4 Audio Output Connection 3.3.2 Audio Inputs PA3V provides with 2 stereo audio inputs, one microphone input and one digital fiber audio input. The following figure shows the audio input ports. Dial Switch, to select the MIC input mode,... -
Page 10: System Applications
Digital Audio Input PA3V provides with a fiber optical port to connect with digital audio source device. With the SPF optical fiber, the audio signal can be transmitted faster, more stable, reliable, and can be transmitted over a long distance without distortion. -
Page 11: Volume/Eq Controlling
“ ”. 4.2 Operations of IR Remote PA3V provides with an IR eye, with the IR Receiver and the IR remote, user can control PA3V remotely. Notice: The IR Receiver and the IR remote are all offered for charge. -
Page 12: Operations Of Control Software
Copy the RS232 control software to one computer, and then connect the RS232 port of this computer and PA3V. Double-click the EXE program to execute the software. Here we take the software CommWatch.exe as example. The icon is showed as below: Figure 11 Control Software ... -
Page 13: Running Environment
4.3.3 Running Environment While the control software is installed, we can activate the software through the RS232 port and set the parameters, to make it able to send RS232 commands to control PA3V. 4.3.4 Function Settings With the control software, we can easily switch the input channel, mute the output, check the working status, and adjust the volume etc. -
Page 14: Rs232 Communication Commands
Preset the bass level, [xx] arranges from 8[x][x]% Bass of LINE: 4 [00] to [08]. 9 degrees in total. Preset the treble level, [xx] arranges from 9[x][x]% Treble of LINE: 4 [00] to [08]. 9 degrees in total. PTN Electronics Limited www.PTN-electronics.com... - Page 15 “610%” again. 5. ID coding The ID codes of PA3V ranges from 0 to F (hexadecimal), when sending RS232 commands, please take notice of the address of the ID code. If the address of the ID code is 0, any RS232 command is available.
-
Page 16: Specifications
Front Panel RS232 Control captive screw buttons Control connector ID Code 16 ID codes for control. Control IR remote & TCP/IP controlled by PTNET(PTN's programmable Optional interface) General Temperature -20 ~ +70℃ Humidity 10% ~ 90% DC 24V power Power... -
Page 17: Panel Drawing
5) If the PA3V amplifier cannot be controlled by the keys on the front panel, RS232 port or the IR remote, the unit may has already been broken. Please send it to the dealer for repairing. -
Page 18: Safety Operation Guide
6) As to non-professional or without permission, please DO NOT try to open the casing of the equipment, DO NOT repair it on your own, in case of accident or increasing the damage of the equipment. 7) DO NOT splash any chemistry substance or liquid in the equipment or around. PTN Electronics Limited www.PTN-electronics.com... -
Page 19: After-Sales Service
40W Power Amplifier 9. After-sales Service 1) If there appear some problems when running PA3V, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty. 2) You can email to our after-sales department or make a call, please tell us the following information about your cases. - Page 20 PTN Electronics Limited Tel: +86-755-2846 1819 Fax: +86-755-8471 7796 Email: info@PTN-electronics.com Website: www.PTN-electronics.com...
