8 Channel Video Transmit Unit with up to 9 Bi-directional
Data and Audio Channels plus Ethernet
The AMG4687BE is a standalone eight channel video transmit unit designed to transmit 8 video
signals and transmit and receive up to 9 data or audio signals plus full duplex 100BaseT Ethernet
connectivity over two Multimode fibres. The 9 data/audio channel interfaces, whether RS232, RS422,
RS485, 20mA, TTL, Contact Closure, Lonworks or Audio, are defined at manufacture by the addition
of daughter boards fitted onto the Data Expansion Board B.
The AMG4687BE is designed to be powered using an AMG2003 standalone power supply.
The AMG4687BE is designed to operate with AMG4688BE or rackmount equivalent AMG4688BER
eight channel video receive unit in a point to point configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
AMG4687BE
Instruction Manual
Page 1 of 12
AMG4687BE Instruction Sheet
D18935-01.doc
Advertisement
Table of Contents
Related Manuals for AMG AMG4687BE
Summary of Contents for AMG AMG4687BE
- Page 1 8 Channel Video Transmit Unit with up to 9 Bi-directional Data and Audio Channels plus Ethernet The AMG4687BE is a standalone eight channel video transmit unit designed to transmit 8 video signals and transmit and receive up to 9 data or audio signals plus full duplex 100BaseT Ethernet connectivity over two Multimode fibres.
-
Page 2: Table Of Contents
Removal / replacement from / to the Case..................10 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 12 AMG4687BE Instruction Sheet document without notice. The information herein is believed to D18935-01.doc... -
Page 3: Introduction
Ethernet connectivity is also provided between the two units. Optical Connection The AMG4687BE is connected as illustrated below when used with an AMG4688BER 8-channel receive unit acting as a point to point system. AMG Systems Ltd. reserves the right to make changes to this... -
Page 4: Connections
For the data or audio channels to be present, appropriate data daughter boards must be fitted onto the data expansion board slots. AMG Systems Ltd. reserves the right to make changes to this Page 4 of 12 AMG4687BE Instruction Sheet document without notice. -
Page 5: Data And Audio Channel Configuration
RS485 bus high (+5 volts) and the other arm low (0 volts) using high value resistors within the third party equipment. In order to ensure that the AMG equipment detects a tri-state condition, then these resistors should have a value above 5kΩ. If the third party bias resistors are less the 750Ω... -
Page 6: Bank B Data
Data and Audio Channel Configuration The data expansion board slots are accessed by removing the AMG unit from its case. A data channel is active when a daughter board is installed in the required data channel slot. Each data interface board enables one bi-directional channel. -
Page 7: Data And Audio Connections Bank B
See Data or Audio Daughter Board Instruction Sheet for meaning of Audio/Data IN+, Audio/Data IN- Audio/Data OUT+, and Audio/Data OUT- for each data type. AMG Systems Ltd. reserves the right to make changes to this Page 7 of 12 AMG4687BE Instruction Sheet document without notice. -
Page 8: Front Panel Indicators
OUT+ logic one (-V) present on OUT+ This represents the data signals being received on the optical fibre AMG Systems Ltd. reserves the right to make changes to this Page 8 of 12 AMG4687BE Instruction Sheet document without notice. -
Page 9: Ethernet Operation
This represents the audio signals being received from the optical fibre. Ethernet Operation In order for the AMG system to transmit Ethernet signals, an onboard RJ45 Ethernet interface or X16003 Ethernet interface adaptor should be fitted to both the Transmit unit and the Receive unit. -
Page 10: Physical Information

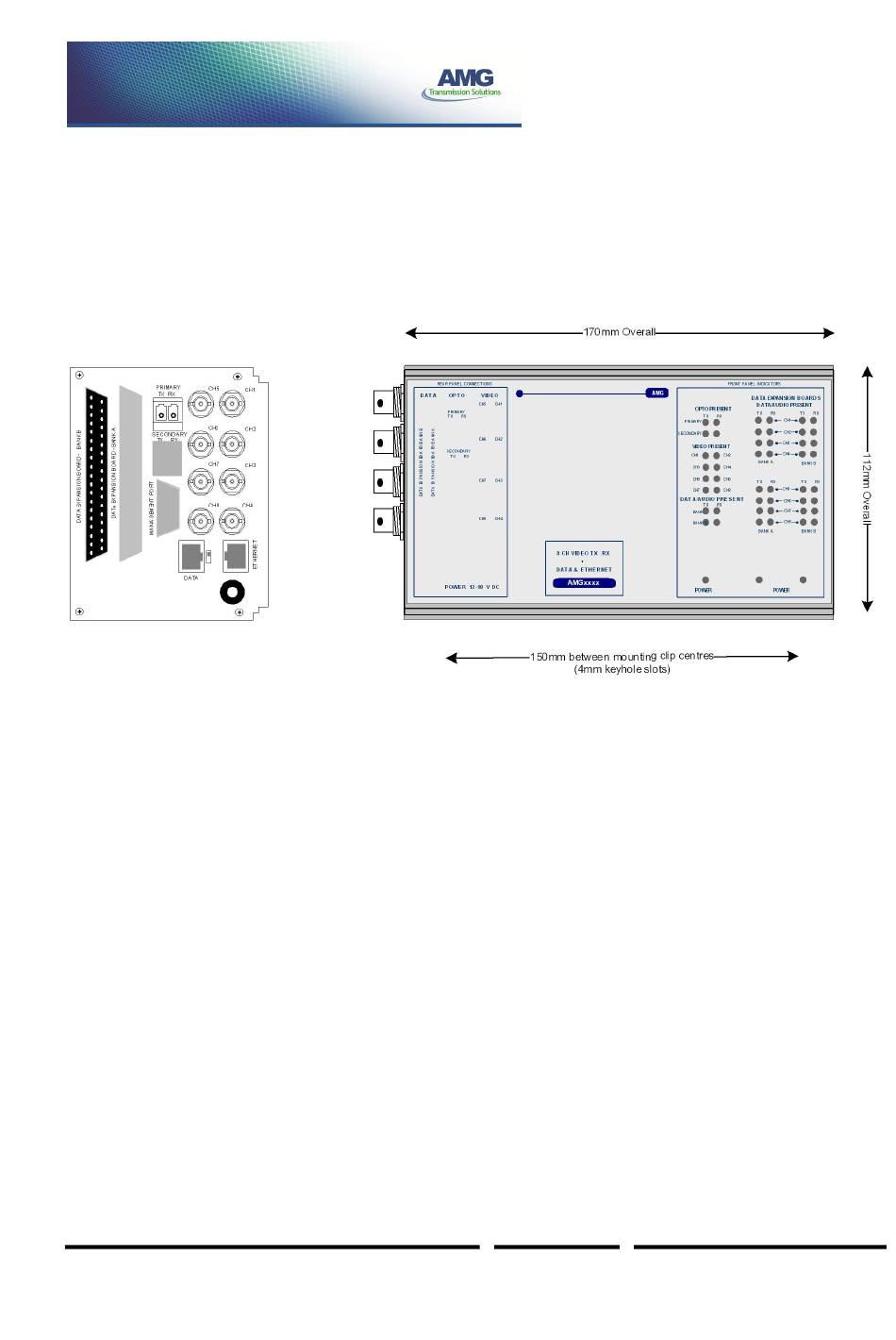

Weight..........1000grams Mounting Details The AMG unit is supplied with a clip-on mounting bracket which should be attached to a panel or wall using 2 off 4.0mm screws, see diagram on page 1 for dimensions. The unit is clipped into the mounting bracket, and is then held firmly in position. - Page 11 This page is intentionally blank. AMG Systems Ltd. reserves the right to make changes to this Page 11 of 12 AMG4687BE Instruction Sheet document without notice. The information herein is believed to D18935-01.doc be accurate. No responsibility is assumed by AMG for its use.
- Page 12 This page is intentionally blank. AMG Systems Ltd. reserves the right to make changes to this Page 12 of 12 AMG4687BE Instruction Sheet document without notice. The information herein is believed to D18935-01.doc be accurate. No responsibility is assumed by AMG for its use.
