GE GFDL110 Owner's Manual page 12

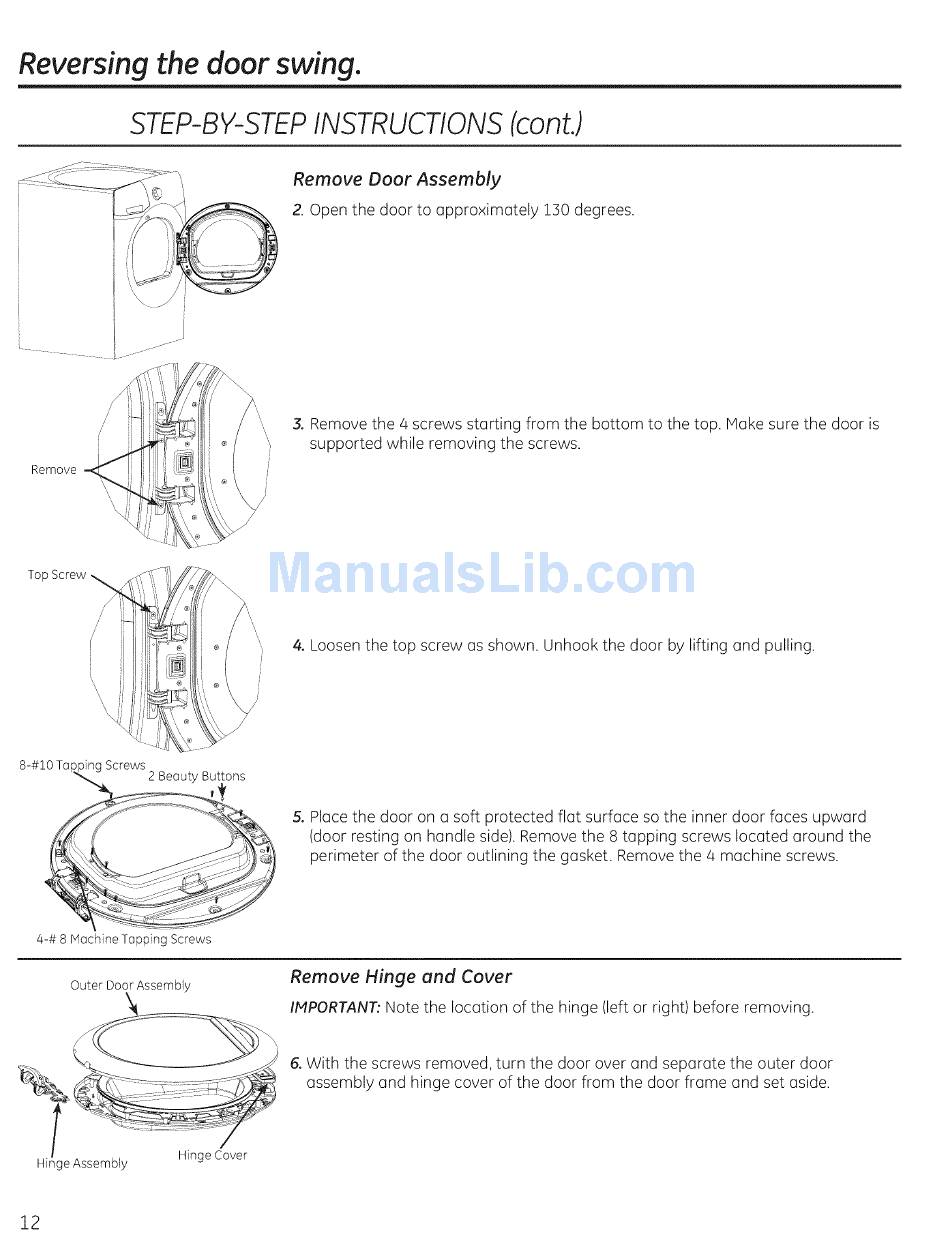

Reversing the door swing.
STEP-BY-STEP INSTRUCTIONS(cont.)
olo .....
0
Remove Door Assembly
2. Open the door to approximately 150 degrees.
Remove
3. Remove the 4 screws starting from the bottom to the top. Make sure the door is
supported while removing the screws.
Top
\
\\
\
/
4. Loosen the top screw us shown. Unhook the door by lifting and pulling.
8-#10
Taplolnq Screws 2 Beauty Buttons
4-# 8 Machine Tapping Screws
5. Place the door on a soft protected flat surface so the inner door faces upward
(door resting on handle side). Remove the 8 tapping screws located around the
perimeter of the door outlining the gasket. Remove the 4 machine screws.
Outer Door Assembly
Remove Hinge end Cover
IMPORTANT: Note the locution of the hinge (left or right) before removing.
Hinge Assembly
Hinge Cover
6. With the screws removed, turn the door over and separate the outer door
assembly and hinge cover of the door from the door frame and set aside.
12
