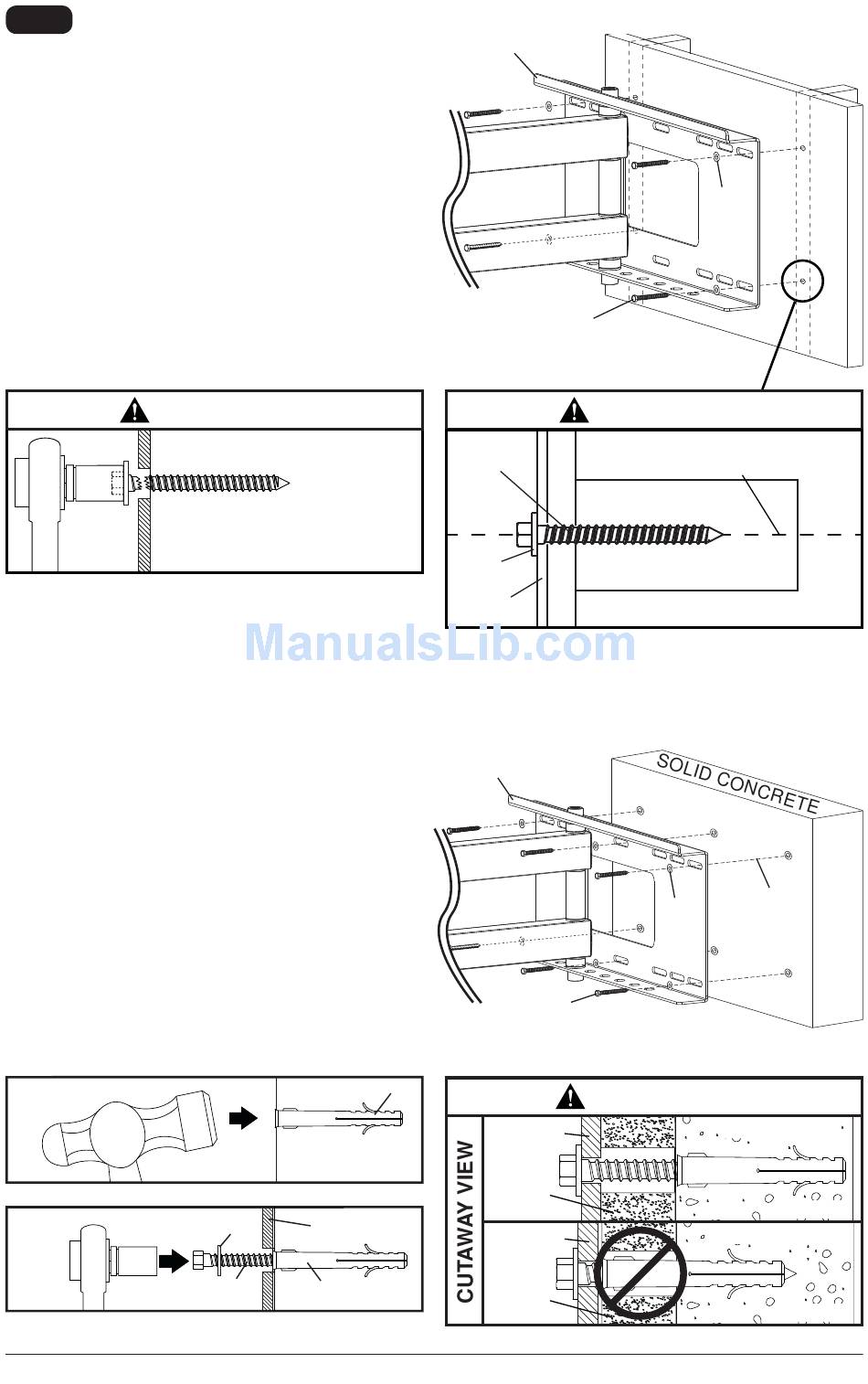

Installing to Wall

Wood Stud Wall
Use wall plate (N) as a template, make sure it is
level, and mark four mounting holes along the
center lines of the wood studs. Drill four
3/16" (5 mm) dia. holes 3-1/4" (83 mm) deep.
Level wall plate (N) and attach to wall with four
long bolts (J) and four washers (L). Tighten
screws fi rmly. Do not overtighten.
WARNING
Do not over tighten screws, or
Concrete Wall
Level wall plate (N) and use as a template to
mark six mounting holes. Drill six 3/8" (10 mm)
dia. holes to a minimum depth of 3-1/4" (83 mm).
Insert six anchors (K) into holes and secure
wall plate (N) to wall with six long bolts (J) and
six washers (L). Tighten screws fi rmly. Do not
overtighten.
1
Drill holes and insert anchors (K).
2
Place plate (N) over anchors (K). Secure with long bolts (J)
and washers (L).
damage may occur.
concrete
surface
L
N
K
J
N
J
L
N
N
J
K
wall plate
plaster/
dry wall
wall plate
plaster/
dry wall
3 of 28
ISSUED: 09-11-09 SHEET #: 202-9376-8 01-27-11
L
J
WARNING
Long bolts in
center of stud.
STUD
TOP CUTAWAY VIEW
L
WARNING
CORRECT
INCORRECT
K
concrete
concrete
