CyberResearch
Industrial Panel PCs
CyRAQ
Series E Panel PC

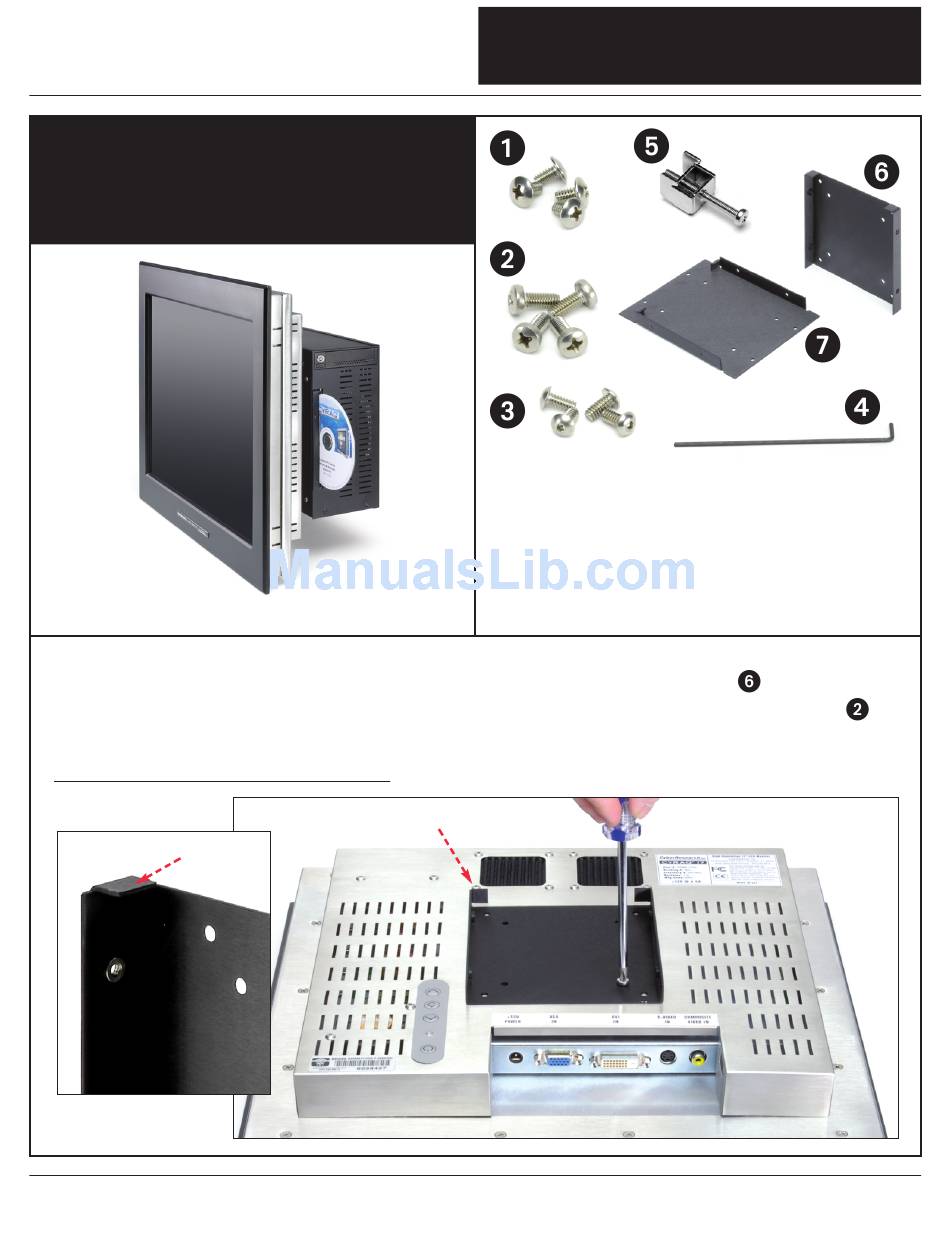

Quick Start Panel-Mounting Guide
Shown above: C
RAQ Series E Panel PC with 17" LCD Monitor
Y
STEP 1
LCD Mounting Plate
Tab
CyberResearch, Inc.
25 Business Park Drive
Branford, CT USA
®
Attach LCD mounting plate (
to monitor using 4 M4 x 10mm screws (
Place tabs (shown in detail below) toward
the top of the monitor.
Tab
Page 1
Rev 1.1
12 / 31/ 2007
®
C
RAQ
PPC Series
Y
Mounting Hardware
1. (4) 6-32 x 1/4" trusshead screws (Phillips)
2. (4) M4 x 10 mm panhead screws (Phillips)
3. (4) 6-32 x 5/16" buttonhead screws (hex)
4. (1) 6" long 5/64" hex long-arm L-key
5. Monitor Mounting Clamps
6. (1) LCD Mounting Plate
7. (1) PC Mounting Plate
(number depends upon LCD size)
)
).
Phone: (203) 643-5000
Fax: (203) 643-5001
www.cyberresearch.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CyberResearch CyRAQ E Series
Summary of Contents for CyberResearch CyRAQ E Series
- Page 1 Attach LCD mounting plate ( to monitor using 4 M4 x 10mm screws ( Place tabs (shown in detail below) toward LCD Mounting Plate the top of the monitor. CyberResearch, Inc. Phone: (203) 643-5000 Page 1 25 Business Park Drive Fax: (203) 643-5001 Rev 1.1...
-
Page 2: Monitor Installation
X = 596 mm (W); Y = 421 mm (H) STEP 3 Mounting Clamps Install monitor mounting clamps ( to secure monitor to panel. CyberResearch, Inc. Phone: (203) 643-5000 Page 2 25 Business Park Drive Fax: (203) 643-5001 Rev 1.1 Branford, CT USA www.cyberresearch.com... - Page 3 — see Step 8). Regardless of Lower Position which mounting position is chosen, be sure to place tabs on the plate toward the top of the PC. CyberResearch, Inc. Phone: (203) 643-5000 Page 3 25 Business Park Drive Fax: (203) 643-5001 Rev 1.1...
- Page 4 STEP 7 Secure PC Secure PC to monitor using 4 6-32 x 5/16" hex screws ( and long-arm L-key ( CyberResearch, Inc. Phone: (203) 643-5000 Page 4 25 Business Park Drive Fax: (203) 643-5001 Rev 1.1 Branford, CT USA www.cyberresearch.com...
- Page 5 PC Cable Connection Attach video cable from monitor, PC power supply cable, optional touchscreen cable, and any other desired user interface cables to PC. CyberResearch, Inc. Phone: (203) 643-5000 Page 5 25 Business Park Drive Fax: (203) 643-5001 Rev 1.1 Branford, CT USA www.cyberresearch.com...
